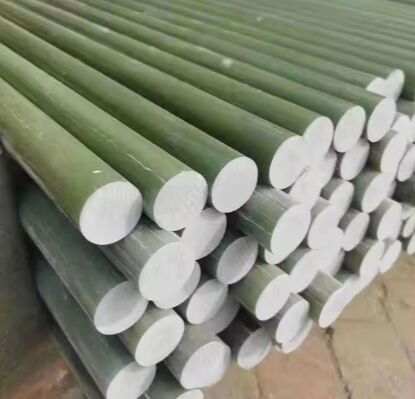

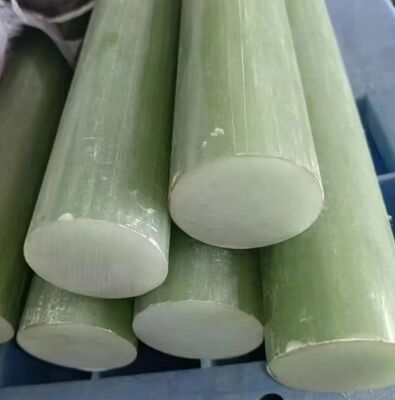

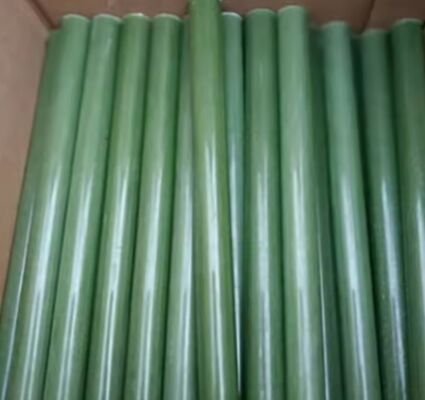

Electrical Insulation Rod With Excellent Voltage Resistance And Long-term Reliability

MOQ:	1000m
Price:	quoted per size
Standard Packaging:	pallet
Delivery Period:	about 30 working days
Payment Method:	L/C,T/T
Supply Capacity:	100000m per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Certification

Model Number

dog bone

Material:

Unsaturated Polyester/E-class Glass Fiber Yarn

Series:

Vacuum Injection Epoxy Pultrusion

Density:

1.8-2.0g/cm3

Shape:

Rod/I Type/corner

Vertical BDV:

≥14.2kv/mm In Oil Of 90℃

Parallel BDV:

≥35kv In Oil Of 90℃

Water Absorption:

≤0.05%

Surface:

Smooth/no Significant Defect

Highlight:

electrical insulation rod with voltage resistance

high voltage insulation rod with reliability

durable electrical insulation board

Product Description

Electrical Insulation Rod With Excellent Voltage Resistance And Long-term Reliability

Product Overview

This high-density electrical insulation rod provides exceptional voltage resistance and long-term reliability. Available in multiple colors and customizable lengths, it is engineered for various electrical insulation applications in demanding high-voltage environments.

Technical Specifications

Property	Value
Material	Unsaturated Polyester/E-class Glass Fiber Yarn
Surface	Smooth/no Significant Defect
Shape	Rod/I Type/corner
Series	Vacuum Injection Epoxy Pultrusion

Key Advantages

Outstanding Electrical Performance: Excellent voltage resistance under high temperatures, ensuring safe and reliable operation in high-voltage environments.
Strong and Durable Structure: High-density material with superior mechanical strength and extended service life.
Flexible Customization: Multiple colors and customizable lengths for easy installation and system matching.

Applications

High-Voltage Electrical Equipment: Ideal for insulation and isolation in transformers, switchgear, and other high-voltage systems.
Wiring and Component Insulation: Used for insulation protection of cable terminals, busbars, and electrical components.
Industrial & Energy Sectors: Widely applied in power transmission, distribution systems, and various industrial electrical insulation scenarios.
