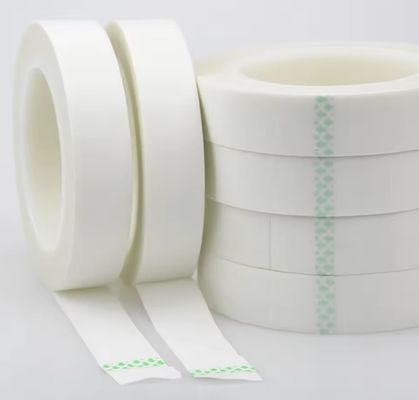

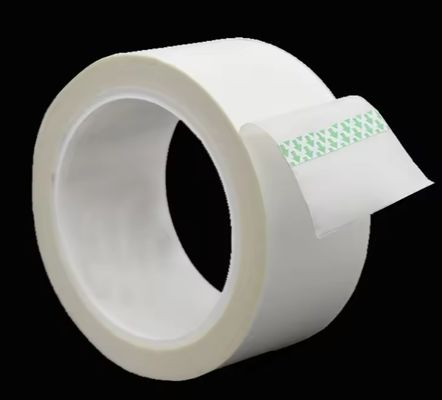

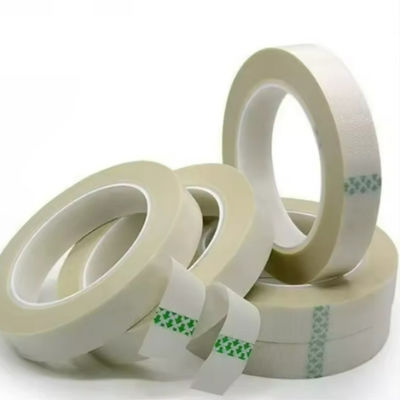

High-performance Silicone-based Adhesive Cloth Tape H Grade Heat Resistant Cloth Tape

High-performance Silicone-based Adhesive Cloth Tape H Grade Heat Resistant Cloth Tape
High-performance Silicone-based Adhesive Cloth Tape H Grade Heat Resistant Cloth Tape High-performance Silicone-based Adhesive Cloth Tape H Grade Heat Resistant Cloth Tape High-performance Silicone-based Adhesive Cloth Tape H Grade Heat Resistant Cloth Tape High-performance Silicone-based Adhesive Cloth Tape H Grade Heat Resistant Cloth Tape

Large Image :  High-performance Silicone-based Adhesive Cloth Tape H Grade Heat Resistant Cloth Tape

Product Details:
Place of Origin: CHINA
Model Number: 6361
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: Usd1~5/roll
Packaging Details: Export carton case
Delivery Time: 21 working days
Supply Ability: 50,000m2 per month

High-performance Silicone-based Adhesive Cloth Tape H Grade Heat Resistant Cloth Tape

Description
Base Material: Imported Glass Cloth Adhesive Type: Silicone Adhesive
Grade: H Grade Releasing Paper: No
Base Cloth Thickness: 0.12mm Tape Thickness: 0.18mm
Elongation: 4% Adhesive Strength To Steel: ≥3.8 N/10mm
Tensile Strength: ≥210N/10mm Application: For Motor Coils, Battery Insulation, High-Temp Shielding & Surface Protection

Description:

The high-performance silicone-based adhesive cloth tape is specifically engineered for demanding industrial environments. It offers exceptional heat resistance, outstanding mechanical strength, and long-lasting adhesion, effectively addressing challenges related to high temperatures, abrasion, and electrical insulation.

With broad application capabilities, it is suitable for motor coil wrapping, battery insulation protection, high-temperature process shielding, and surface protection of various materials, serving as a reliable multi-purpose industrial insulation and protective solution.



Features:

  • Excellent thermal stability for prolonged use, with a continuous operating temperature of 180°C and a short-term tolerance of 200°C.

  • High flexibility and tear resistance with strong adhesion, preventing deformation and ideal for surface protection of various profiles.
  • High mechanical strength ensures tight and secure coil wrapping.


Specifications:


1

Base cloth Thicness

mm

0.120±0.01

0.129

3

Tape thickness

mm

0.180±0.01

0.181

4

BDV

KV

≥2.5

2.7

5

Tensile strength

N/10mm

≥210

237

6

Elongation

%

≥3

4

7

Adhesion strength to steel plate

N/10mm

≥3.8

4.1

8

Heating 260°C/30min

No deformation, No tape end backturn

9

Thermal grade

H



Application:

  • Provides secure wrapping for H-class motor and transformer coil lead wires.
  • Ensures explosion-proof and anti-leakage integrity for lithium manganese battery insulation and wrapping.
  • Delivers reliable protection against high-temperature sandblasting and effective thermal insulation shielding.


High-performance Silicone-based Adhesive Cloth Tape H Grade Heat Resistant Cloth Tape 0
