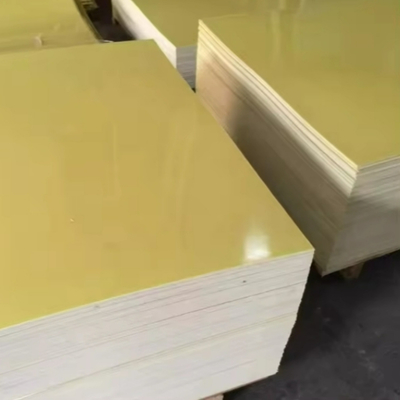

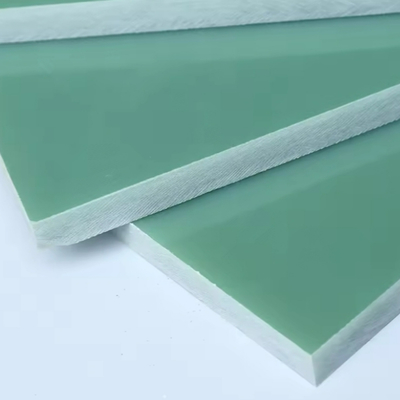

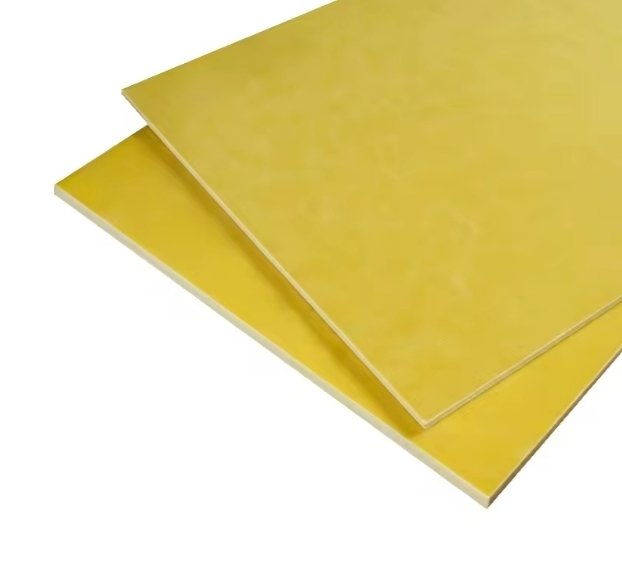

Phenolic Epoxy Fiberglass Laminate Sheet 102x202cm 1.8g/cm3 Density

MOQ:	1000kgs
Price:	basing on size and quantity
Standard Packaging:	pallet
Delivery Period:	30 working days
Payment Method:	T/T
Supply Capacity:	200000kgs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

Tensile Strength(MD):

≥300MPa

Size:

102 X 202cm

Density:

≥1.8g/cm3

Material:

Phenolic Epoxy Resin & Glass Fiber

Surface:

Smooth/no Significant Defect

Flammability:

Electric Strength Perpendicular To Laminations(at 90℃±2℃ In Oil), 1mm In Thickness:

≥14.2kV/mm

Temp. Index:

Highlight:

Phenolic epoxy fiberglass laminate sheet

Electrical insulation board with high density

Fiberglass laminate sheet 102x202cm

Product Description

Phenolic Epoxy Fiberglass Laminate Sheets - Durable Electrical Insulation Board

Our advanced Phenolic Epoxy Fiberglass Laminate Sheets deliver exceptional mechanical strength, superior thermal endurance, and reliable electrical insulation for demanding applications across aerospace, automotive, electronics, and heavy engineering industries.

Product Summary

The Electrical Insulation Board is a premium insulating material in board form, engineered for critical applications requiring reliable electrical insulation. Also known as Electrical Insulation Plate, this product offers outstanding structural integrity and functional versatility.

Key Specifications

Shape: Board/Sheet

Electric Strength: ≥14.2kV/mm (perpendicular to laminations at 90℃±2℃ in oil, 1mm thickness)

Relative Permittivity: ≤5.5 (50Hz)

Density: ≥1.8g/cm³

Surface: Smooth with no significant defects

Technical Parameters

Parameter	Value
Water Absorption	≤0.05%
Color	Yellow
Flexural Strength (MD)	≥340MPa
Breakdown Voltage (parallel to laminations)	≥35kV (at 90℃±2℃ in oil)
Tensile Strength (MD)	≥300MPa
Charpy Impact Strength (parallel to laminations)	≥33kJ/m²

Key Features & Applications

Excellent Mechanical Strength

Charpy impact strength ≥ 33 kJ/m² provides high durability and impact resistance for demanding environments requiring robust insulation.
High Breakdown Voltage

Breakdown voltage > 35 kV (tested at 90°C ± 2°C in oil) ensures safety and reliability in high-voltage applications like transformers and switchgear.
Stable Electrical Properties

Relative permittivity < 5.5 at 50Hz maintains consistent performance in AC applications for optimal electrical insulation.
Superior Perpendicular Electric Strength

Electric strength ≥ 14.2 kV/mm enhances insulation integrity under extreme conditions.
Versatile Size and Application

Standard size 1020 × 2020 mm (custom sizes available) suitable for electrical panels, insulating supports, busbar insulation, and other high-quality applications.

Customization Options

Model 3240 Electrical Insulation Board can be customized with the following attributes:

Model Number: 3240

Place of Origin: China

Compressive Strength: ≥350MPa

Tags:

Products

MOQ:	1000kgs
Price:	basing on size and quantity
Standard Packaging:	pallet
Delivery Period:	30 working days
Payment Method:	T/T
Supply Capacity:	200000kgs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

3240

Tensile Strength(MD):

≥300MPa

Size:

102 X 202cm

Density:

≥1.8g/cm3

Material:

Phenolic Epoxy Resin & Glass Fiber

Surface:

Smooth/no Significant Defect

Flammability:

Electric Strength Perpendicular To Laminations(at 90℃±2℃ In Oil), 1mm In Thickness:

≥14.2kV/mm

Temp. Index:

120℃

Minimum Order Quantity:

1000kgs

Price:

basing on size and quantity

Packaging Details:

pallet

Delivery Time:

30 working days

Payment Terms:

T/T

Supply Ability:

200000kgs per month

Highlight

Phenolic epoxy fiberglass laminate sheet

Electrical insulation board with high density

Fiberglass laminate sheet 102x202cm

Product Description

Phenolic Epoxy Fiberglass Laminate Sheets - Durable Electrical Insulation Board

Product Summary

Key Specifications

Shape: Board/Sheet

Electric Strength: ≥14.2kV/mm (perpendicular to laminations at 90℃±2℃ in oil, 1mm thickness)

Relative Permittivity: ≤5.5 (50Hz)

Density: ≥1.8g/cm³

Surface: Smooth with no significant defects

Technical Parameters

Parameter	Value
Water Absorption	≤0.05%
Color	Yellow
Flexural Strength (MD)	≥340MPa
Breakdown Voltage (parallel to laminations)	≥35kV (at 90℃±2℃ in oil)
Tensile Strength (MD)	≥300MPa
Charpy Impact Strength (parallel to laminations)	≥33kJ/m²

Key Features & Applications

Excellent Mechanical Strength

Charpy impact strength ≥ 33 kJ/m² provides high durability and impact resistance for demanding environments requiring robust insulation.
High Breakdown Voltage

Breakdown voltage > 35 kV (tested at 90°C ± 2°C in oil) ensures safety and reliability in high-voltage applications like transformers and switchgear.
Stable Electrical Properties

Relative permittivity < 5.5 at 50Hz maintains consistent performance in AC applications for optimal electrical insulation.
Superior Perpendicular Electric Strength

Electric strength ≥ 14.2 kV/mm enhances insulation integrity under extreme conditions.
Versatile Size and Application

Standard size 1020 × 2020 mm (custom sizes available) suitable for electrical panels, insulating supports, busbar insulation, and other high-quality applications.

Customization Options

Model 3240 Electrical Insulation Board can be customized with the following attributes:

Model Number: 3240

Place of Origin: China

Compressive Strength: ≥350MPa
