Product Description:
The Electrical Insulation Board is a high-quality product designed to meet the stringent requirements of electrical insulation applications. With a Tensile strength (MD) of ≥300MPa and Flexural strength perpendicular to laminations (MD) of ≥340MPa, this Insulating Electrical Board provides exceptional mechanical strength and durability.
One of the key features of this Electrical Insulating Material is its excellent thermal properties, with a Temp. Index of 120℃. This ensures reliable performance even in high-temperature environments, making it ideal for a wide range of electrical insulation applications.
In addition to its impressive strength and thermal stability, the Insulating Electrical Board also offers superior resistance to water absorption, with a Water Absorption rate of ≤0.05%. This ensures that the material maintains its insulating properties even when exposed to moisture, contributing to its long-term reliability.
Furthermore, the Charpy impact strength parallel to laminations (Notched) of ≥33kJ/m2 demonstrates the toughness and resilience of this Electrical Insulating Material. It is capable of withstanding impact and mechanical stresses, making it a reliable choice for demanding applications where durability is paramount.
Whether used in transformers, electrical panels, or other critical equipment, this Insulating Electrical Board provides the performance and reliability required in modern electrical systems. Its combination of high mechanical strength, thermal stability, low water absorption, and impact resistance make it a versatile and dependable choice for various insulation applications.
Features:

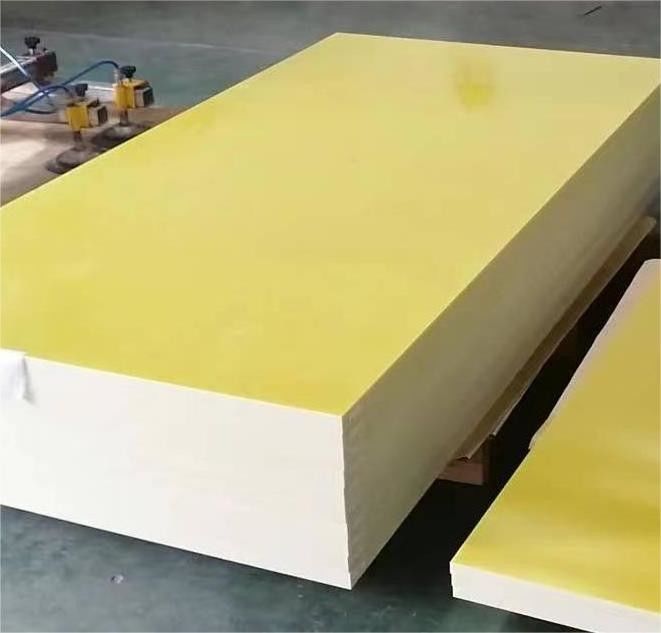

- Product Name: Electrical Insulation Board
- Water Absorption: ≤0.05%
- Color: Yellow
- Charpy Impact Strength parallel to laminations (Notched): ≥33kJ/m2
- Material: Phenolic Epoxy Resin & Glass Fiber
- Breakdown Voltage parallel to laminations (at 90℃±2℃ in oil): ≥35kV
Applications:
When it comes to the Model Number 3240 Electrical Insulation Board, there are various application occasions and scenarios where this Electric Insulation Material can prove to be highly effective.
Hailing from China, this Electrical Insulation Board is known for its exceptional attributes such as a Tensile strength(MD) of ≥300MPa, Shape in the form of a Board, Water Absorption of ≤0.05%, Relative permittivity(50Hz) of ≤5.5, and Breakdown voltage parallel to laminations (at 90℃±2℃ in oil) of ≥35kV.
One of the key application occasions for this Electrical Insulation Board is in the electrical industry, where it is commonly used for insulating various electrical components and equipment. Its high Tensile strength makes it suitable for applications where durability and resistance to mechanical stress are crucial.
Moreover, the low Water Absorption property ensures that the insulation board remains stable and reliable even in humid environments. This makes it ideal for use in applications where exposure to moisture is a concern.
With a Relative permittivity of ≤5.5, this Electrical Insulation Board is well-suited for scenarios where maintaining a stable electrical signal is essential, such as in electronics manufacturing or telecommunications.
Furthermore, the impressive Breakdown voltage parallel to laminations (at 90℃±2℃ in oil) of ≥35kV makes this insulation board a preferred choice for high-voltage applications, providing a reliable barrier against electrical arcing and breakdown.
In conclusion, whether it's for electrical equipment insulation, electronic component manufacturing, or high-voltage applications, the Model Number 3240 Electrical Insulation Board from China offers a versatile and reliable solution for a wide range of electrical insulation scenarios.
Customization:
Product Customization Services for the Electrical Insulation Plate product:
Model Number: 3240
Place of Origin: China
Shape: Board
Surface: Smooth/no Significant Defect
Breakdown voltage parallel to laminations (at 90℃±2℃ in oil): ≥35kV
Temp. Index: 120℃
Flammability: HB
