10-980mm Aramid Insulation Tape with 0.10mm Thickness

10-980mm Aramid Insulation Tape with 0.10mm Thickness
10-980mm Aramid Insulation Tape with 0.10mm Thickness
10-980mm Aramid Insulation Tape with 0.10mm Thickness 10-980mm Aramid Insulation Tape with 0.10mm Thickness 10-980mm Aramid Insulation Tape with 0.10mm Thickness 10-980mm Aramid Insulation Tape with 0.10mm Thickness

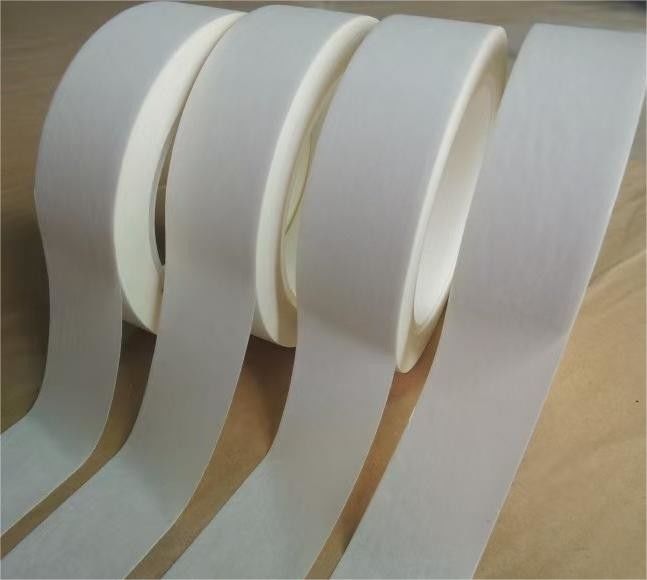

Large Image :  10-980mm Aramid Insulation Tape with 0.10mm Thickness

Product Details:
Place of Origin: China
Brand Name: Aramid paper adhesive tape
Certification: UL
Model Number: 432
Payment & Shipping Terms:
Minimum Order Quantity: 500 SQ.M
Price: basing on size and quantity
Packaging Details: Cartons
Delivery Time: about 30 days
Payment Terms: TT,T/T
Supply Ability: 20000rolls
Contact Now

10-980mm Aramid Insulation Tape with 0.10mm Thickness

Description
Application: F-class Motor And Transformer Coil End Wrapping Adhesive Strength To Steel: 12N/25mm
Width: 10~980mm Tensile Strength: ≥30N/10mm
Total Thickness: 0.10mm Length: 50m Or As Per Order
Material: Aramid Paper (similar To Nomex Paper) Adhesive: Flame Retardant Acrylic Pressure Sensitive Adhesive
Highlight:

Flame Retardant Adhesive Insulation Tape

,

0.10mm Adhesive Insulation Tape

,

980mm Adhesive Insulation Tape

10-980mm Width Self Adhesive Insulation Tape Aramid Paper With Flame Retardant Acrylic Pressure Sensitive Adhesive
Product Overview
This high-performance insulation tape is constructed from polyaramid fiber paper with a high-temperature processed flame retardant acrylic adhesive. The 155°C acrylic pressure-sensitive adhesive provides excellent adhesion to various surfaces including metals and plastics, while the 0.10mm thickness offers reliable insulation for demanding applications.
Key Features
  • Material: Polyaramid fiber paper with acrylic adhesive
  • Adhesive Type: Flame retardant, pressure-sensitive
  • Temperature Rating: -55°C to 155°C
  • Total Thickness: 0.10mm
  • Width Range: 10-980mm (custom widths available)
  • Standard Length: 50m (custom lengths available)
  • Tensile Strength: ≥30N/10mm
  • Color: White
  • Certification: UL certified
Technical Specifications
Property Specification
Model Number 432
Adhesive Type 155°C Acrylic Pressure Sensitive
Thickness 0.10mm
Width Range 10-980mm
Tensile Strength ≥30N/10mm
Elongation 4%
Temperature Range -55°C to 155°C
Primary Applications
This versatile insulation tape is ideal for:
  • Coil end wrapping in F-class motors and transformers
  • Electrical insulation in industrial equipment
  • Insulation for appliances (refrigerators, air conditioners)
  • High-temperature electrical applications
  • Transformer and motor manufacturing
Ordering Information
Parameter Detail
Minimum Order Quantity 500 SQ.M
Packaging Cartons
Delivery Time Approximately 30 days
Payment Terms TT (Telegraphic Transfer)
Custom widths and lengths are available to meet specific application requirements. Contact us for tailored solutions to your insulation needs.
