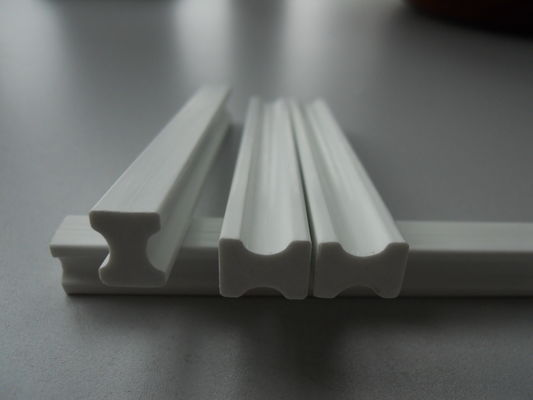

Grey And White F/H Thermal Class I-shape Brace Electrical Insulation Board For Transformer

Product Description:

One of the most notable features of this Electrical Insulation Board is its Vertical BDV, which is equal to or greater than 14.2kv/mm in oil of 90℃. This high BDV ensures that the board can effectively withstand high electrical voltages without breaking down, making it a reliable choice for use in high-voltage applications.

Another important feature of this Electrical Insulation Board is its smooth surface, which is free from any significant defects. This makes it easy to handle and work with, and ensures that it can be used effectively in a variety of different applications.

In addition to its excellent electrical insulation properties and smooth surface, this Electrical Insulation Board also has a low water absorption rate of less than 0.05%. This means that it is highly resistant to moisture and can be used in applications where exposure to water or other liquids is a concern.

The length of this Electrical Insulation Board can be customized to suit the specific needs of each application. It is available in lengths of 1 or 2.5 meters, ensuring that it can be easily tailored to fit into a variety of different electrical systems and equipment.

Overall, the Insulating Electrical Board is a high-quality Electrical Insulation Board that offers excellent electrical insulation properties, a smooth surface, and low water absorption rate. It is an ideal choice for use as a brace for transformers and in other high-voltage applications where reliable electrical insulation is essential.

Features:

• Product Name: Electrical Insulation Board
• Material: Unsaturated Polyester/E-class Glass Fiber Yarn
• Density: 1.8-2.0g/cm3
• Series: Vacuum Injection Epoxy Pultrusion
• Water Absorption: ≤0.05%
• Thermal Class: F, H
• Keywords: Electrical Insulation Plate, Electrical Insulation Board, Electrical Insulating Material

Technical Parameters:

Applications:

The Insulating Electrical Board can be used in a variety of occasions and scenarios, making it a versatile choice for electrical insulation. Its parallel BDV of ≥35kv in oil of 90℃ and vertical BDV of ≥14.2kv/mm in oil of 90℃ make it an ideal choice for transformers, where high voltage and electrical insulation are critical.

This product can be used in industrial settings, such as power plants, factories, and manufacturing facilities. It can also be used in commercial settings, such as office buildings and retail stores. The Insulating Electrical Board is a reliable choice for electrical insulation in any setting and can help prevent electrical accidents and damage to equipment.

If you're looking for a high-quality electrical insulation product, the Insulating Electrical Board - dog bone is an excellent choice. Its smooth surface, customizable length, and high BDV make it a versatile and reliable option for any electrical insulation need. So, don't wait any longer and get your Insulating Electrical Board today!

Customization:

Customize your Electrical Insulation Board according to your specific requirements with our product customization services. Our Electric Insulation Material is available in the dog bone model and is made in China. It is designed to be used as a Brace For Transformers, with a Parallel BDV of ≥35kv In Oil Of 90℃. The surface is smooth with no significant defect and the series is Vacuum Injection Epoxy Pultrusion. The Electrical Insulating Material has a Dielectric loss factor of ≤0.04.
