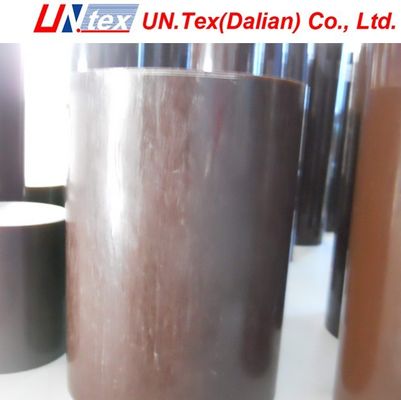

Rod Type Electric Insulation Material With Excellent Insulation Properties

Product Description:

Electrical Insulation rod is a kind of electric insulation material which is made of high-quality board material and is widely used in industrial and domestic electrical appliances. It features high mechanical strength, good electrical insulation, and good thermal insulation performance. The electrical insulation board is available in different shapes such as rod, I type, and corner, and it can be customized in length from 1/2.5m. It also has a high vertical breakdown voltage of ≥14.2kv/mm in oil of 90℃ and a parallel breakdown voltage of ≥35kv in oil of 90℃. Besides, it comes in various colors such as black, white, and grey. Electrical Insulation Board is perfect choice for a variety of electrical insulation applications.

Features:

• Product Name: Electrical Insulation rod
• Shape: Rod/I Type/corner
• Material: Unsaturated Polyester/E-class Glass Fiber Yarn
• Surface: Smooth/no Significant Defect
• Parallel BDV: ≥35kv In Oil Of 90℃
• Length: 1/2.5m Customized

Technical Parameters:

Applications:

Electrical Insulation Board is an electrical insulating material with a model number of "dog bone". It has a place of origin in China and series of Vacuum Injection Epoxy Pultrusion. It has low water absorption of ≤0.05%, and is made of unsaturated polyester/E-class glass fiber yarn. It is available in different shapes such as rod, I type and corner. It also has a high vertical BDV of ≥14.2kv/mm in oil of 90℃, making it a strong electrical insulating material. It is perfect for a wide range of applications, such as electrical insulation, electrical insulation board, electrical insulating material, and electrical insulating board.

Customization:

• Model Number: Dog Bone
• Place of Origin: China
• Water Absorption: ≤0.05%
• Density: 1.8-2.0 g/cm3
• Series: Vacuum Injection Epoxy Pultrusion
• Surface: Smooth/No Significant Defect
• Size: dia 5~130mm

We provide customized service for Electrical Insulation rod with superior electrical insulating material and electrical insulation plate and electrical insulation plate etc.

Support and Services:

We provide technical support and services for our Electrical Insulation rod products to ensure that our customers get the best performance out of them. Our team of experienced engineers can help you with installation, operation and maintenance of the rod, as well as troubleshooting any problems you may experience. We also offer a range of additional services tailored to the specific needs of our customers, including:

• Design and implementation of customized solutions
• On-site technical assistance
• Installation and maintenance of equipment

If you have any questions or need any assistance with our Electrical Insulation Board products, please do not hesitate to contact us. Our team is always ready to help and provide expert advice.

Packing and Shipping:

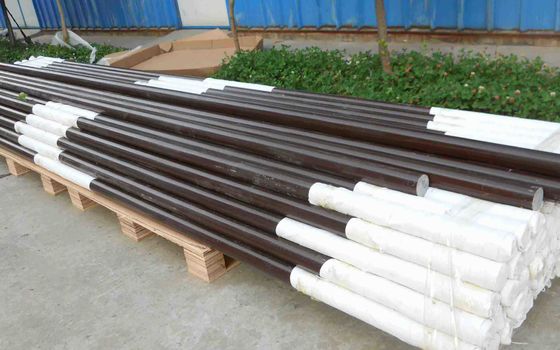

Electrical Insulation Board is packaged and shipped by pallet, and can be shipped by sea freight, and small sizes can do by air or express delivery services.
