Rod Type Electrical Insulation Board For Efficient Insulation Water Absorption ≤0.05%

Certification
China UN.Tex (Dalian) Co.,Ltd certification
China UN.Tex (Dalian) Co.,Ltd certification
I'm Online Chat Now

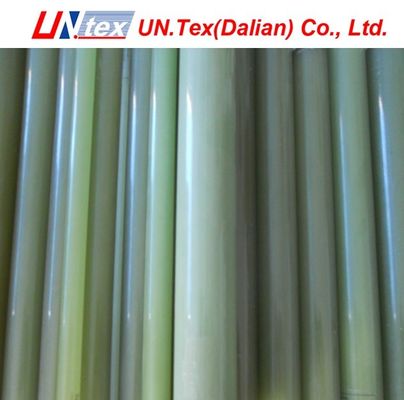

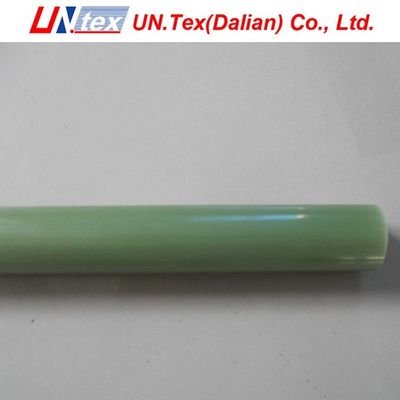

Rod Type Electrical Insulation Board For Efficient Insulation Water Absorption ≤0.05%

Rod Type Electrical Insulation Board For Efficient Insulation Water Absorption ≤0.05%
Rod Type Electrical Insulation Board For Efficient Insulation Water Absorption ≤0.05% Rod Type Electrical Insulation Board For Efficient Insulation Water Absorption ≤0.05%

Large Image :  Rod Type Electrical Insulation Board For Efficient Insulation Water Absorption ≤0.05%

Product Details:
Place of Origin: China
Certification: UL
Model Number: dog bone
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: quoted per size
Packaging Details: pallet
Delivery Time: about 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100000m per month

Rod Type Electrical Insulation Board For Efficient Insulation Water Absorption ≤0.05%

Description
Water Absorption: ≤0.05% Surface: Smooth/no Significant Defect
Color: Black/ White/ Grey Shape: Rod/I Type/corner
Series: Vacuum Injection Epoxy Pultrusion Vertical BDV: ≥14.2kv/mm In Oil Of 90℃
Parallel BDV: ≥35kv In Oil Of 90℃ Density: 1.8-2.0g/cm3
High Light:

Insulation Electrical Fiberboard

,

Rod Type Electrical Insulation Board

,

Smooth Electrical Insulation Sheet

Product Description:

Electrical Insulation Board

The Electrical Insulation rod is a high-density insulating material used to insulate electrical components in a variety of ways. Its high-density makes it ideal for use in high-voltage applications, such as wiring and electrical components. It is characterized by its excellent vertical breakdown voltage (BDV) of ≥14.2kv/mm in oil of 90℃ and parallel BDV of ≥35kv in oil of 90℃, making it suitable for a variety of electrical applications. The Electrical Insulation Board is available in a variety of colors – black, white, and grey – and can be customized in length from 1/2.5m. With a density of 1.8-2.0g/cm3, the Electrical Insulation Board is a reliable and durable electrical insulation material.



Features:

  • Product Name: Electrical Insulation rod
  • Parallel BDV: ≥35kv In Oil Of 90℃
  • Length: 1/2.5m Customized
  • Vertical BDV: ≥14.2kv/mm In Oil Of 90℃
  • Color: Black/ White/ Grey
  • Size: 10x10mm


Technical Parameters:

Property Value
Water Absorption ≤0.05%
Material Unsaturated Polyester/E-class Glass Fiber Yarn
Parallel BDV ≥35kv In Oil Of 90℃
Vertical BDV ≥14.2kv/mm In Oil Of 90℃
Surface Smooth/no Significant Defect
Shape Rod/I Type/corner
Density 1.8-2.0g/cm3
Color Black/White/Grey
Size 10x10mm
Series Vacuum Injection Epoxy Pultrusion


Applications:

Electrical Insulation rod is a type of electrical insulating material. For custom applications, it is made of Unsaturated Polyester and E-class Glass Fiber Yarn, which make it highly resistant to water absorption, with a maximum of 0.05%. It is available in a variety of colors, including black, white, and grey. It is available in two lengths, 1/2.5m, and custom sizes are available. The series of the product is Vacuum Injection Epoxy Pultrusion. It is made in China.

Electrical Insulation rod is used in a wide range of applications, including in power systems and electrical equipment.  It is also used in the construction industry, to provide insulation for structures and buildings. It is also used to protect electrical components and systems from mechanical damage. In addition, it can be used to protect electrical components from corrosion.

Electrical Insulation rod is an excellent choice for electrical and mechanical insulation. It is highly resistant to water absorption and can withstand high temperatures H class. It is also strong and durable, making it suitable for a wide range of applications. It is also easy to install and maintain, making it a cost-effective solution for many projects.



Customization:

We provide customized services for Electric Insulation Material, Electrical Insulating Material, Electrical Insulation Plate, and Electrical Insulating Plate. Our product model number is dog bone, and the place of origin is China. The material is Unsaturated Polyester/E-class Glass Fiber Yarn, and it is Vacuum Injection Epoxy Pultrusion. The length is 1/2.5m and it is customizable. The density is 1.8-2.0g/cm3 and the vertical BDV is ≥14.2kv/mm In Oil Of 90℃.



Support and Services:

Technical Support and Service for Electrical Insulation rod.

We offer the following technical support and service for Electrical Insulation Board:

  • Design support
  • Installation and maintenance guidance
  • Troubleshooting and repair assistance
  • Replacement parts and accessories for all models

Our team of experienced professionals is available to answer any questions you may have about Electrical Insulation rod and provide expert advice.



Packing and Shipping:

Packaging and Shipping Electrical Insulation rod:

The rods should be securely packed in the cartons and pallets, as they may be sensitive to vibration or shock during transport. The rods should be clearly labeled with their specifications and origin, and the boxes and crates should be labeled with the product name, quantity, and destination. If the rods are being shipped overseas, additional steps may be necessary to ensure the product arrives safely and in compliance with international shipping regulations.
