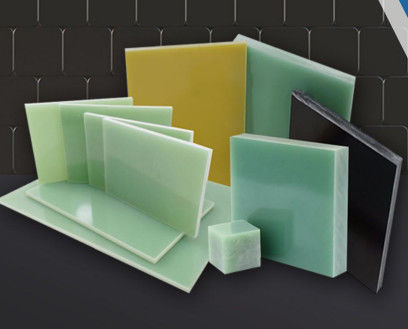

Laminated Electrical Insulation Board Material With Epoxy Resin / Fiberglass Cloth

Laminated Electrical Insulation Board Material With Epoxy Resin / Fiberglass Cloth
Laminated Electrical Insulation Board Material With Epoxy Resin / Fiberglass Cloth

Large Image :  Laminated Electrical Insulation Board Material With Epoxy Resin / Fiberglass Cloth

Product Details:
Place of Origin: China
Certification: Rohs
Model Number: G-10
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sheets
Price: quoted per size
Packaging Details: pallet
Delivery Time: about 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000 sheets per month

Laminated Electrical Insulation Board Material With Epoxy Resin / Fiberglass Cloth

Description
Dielectric Constant: ≤5.5 Size: 1220x2040/1020x1220
Shape: Plate/Sheet Vertical BDV: ≥11.8kv/mm In Oil Of 90℃
Flexural Strength: ≥340MPa Impact Strength: Charpy Type ≥33kJ/m²
Vertical Compression Strength: ≥350MPa Material: Epoxy Resin/Fiberglass Cloth
High Light:

Laminated Electrical Insulation Sheet

,

Fiberglass Cloth Electrical Insulation Board

,

Epoxy Resin Electrical Insulation Board

Product Description:

Electric Insulation Board is a kind of electric insulation material with high mechanical strength and good electric stability. It is made from epoxy resin and fiberglass cloth, which is processed into plate/sheet shape. The water absorption rate of this material is less than 0.04%, and vertical compression strength is more than 350MPa. It is an ideal electric insulation material for its excellent performance and great mechanical strength.



Features:

  • Product Name: Electrical Insulation Board
  • Size: 1220x2040/1020x1220
  • Vertical BDV: ≥11.8kv/mm in oil of 90℃
  • Dielectric Constant: ≤5.5
  • Thickness: 0.2mm-30mm
  • Color: Black/ Green/ Blue/ Yellow/ Red
  • Electrical Insulating Material
  • Electrical Insulation Board Properties


Technical Parameters:

Property Technical Parameter
Shape Plate/Sheet
Dielectric Constant ≤5.5
Material Epoxy Resin/Fiberglass Cloth
Characteristics Good Electricals Stability And High Mechanical Strength
Color Black/ Green/ Blue/ Yellow/ Red
Thickness 0.2mm-30mm
Vertical compression strength ≥350MPa
Vertical BDV ≥11.8kv/mm In Oil Of 90℃
Density 1.8-2.0g/cm3
Flexural Strength ≥340MPa


Applications:

Electrical Insulation Boards are an ideal solution for protecting electrical components and systems from damage caused by heat, vibration, dust, and moisture. With Model Number G-10 and originating from China, these insulation boards come in various colors such as black, green, blue, yellow, and red. The boards have a smooth surface and no significant defects, impact strength of at least Charpy Type 33kJ/m², thickness between 0.2mm and 30mm, and excellent electrical stability and high mechanical strength. These features make Electrical Insulation Board an ideal choice for electronic and electrical systems.



Customization:

Custom Electrical Insulation Board

Model Number: G-10
Place of Origin: China
Surface: Smooth/no Significant Defect
Flexural Strength: ≥340MPa
Size: 1220x2040/1020x1220
Water Absorption: ≤0.04%
Vertical compression strength: ≥350MPa

Our custom Electrical Insulation Board is made of high quality electrical insulating material, and it is designed for superior electrical insulation performance. It has a smooth surface with no significant defects, and its flexural strength is over 340MPa. The size can be customized to 1220x2040/1020x1220, and the water absorption rate is less than 0.04%. The vertical compression strength is over 350MPa.



Support and Services:

Technical Support and Service for Electrical Insulation Board

We provide technical support and service for Electrical Insulation Board. Our team of experienced engineers is available to provide technical advice and support for all your needs. We also provide on-site inspections and installation services to ensure that your Electrical Insulation Board is installed correctly. In addition, we offer maintenance services to ensure that your board is in proper working order. Finally, we provide customer service and technical support to answer any questions or concerns you may have about your board.



FAQ:

Q1: What is Electrical Insulation Board?

A1: Electrical Insulation Board is a kind of insulation material with excellent electrical properties, chemical resistance and mechanical strength. It is widely used in electrical, mechanical and electronic products.

Q2: What is the model number of this product?

A2: The model number of this product is G-10.

Q3: What is the place of origin?

A3: This product is manufactured in China.

Q4: What are the features of the Electrical Insulation Board?

A4: The Electrical Insulation Board has excellent electrical properties, chemical resistance and mechanical strength, which makes it ideal for use in electrical, mechanical and electronic products.

Q5: What is the application of Electrical Insulation Board?

A5: Electrical Insulation Board is widely used in electrical and electronic engineering, telecommunications, mechanical products, etc.
