Product Details:
|
| Water Absorption: | ≤0.04% | Vertical BDV: | ≥11.8kv/mm In Oil Of 90℃ |
|---|---|---|---|
| Size: | 1220x2040/1020x1220 | Material: | Epoxy Resin/Fiberglass Cloth |
| Thickness: | 0.2mm-30mm | Impact Strength: | Charpy Type ≥33kJ/m² |
| Dielectric Constant: | ≤5.5 | Surface: | Smooth/no Significant Defect |
| Highlight: | Fiberglass Cloth Composition Electrical Insulation Sheet,Epoxy Resin Electric Insulation Material,Smooth High Voltage Insulation Board |
||
Electric Insulation Material, Electrical Insulating Material, Electrical Insulating Material Board, Electrical Insulating Board, is a material used to provide electrical insulation between two conducting surfaces. It is made from a unique combination of materials, including polymers, rubber, and plastic, that offers excellent electrical insulation properties and impact strength. This Electrical Insulation Board has a Charpy Type impact strength of ≥33kJ/m², a smooth/no significant defect surface, a thickness range of 0.2mm-30mm, a density of 1.8-2.0g/cm3, and a standard size of 1220x2040/1020x1220. It is an ideal choice for electrical insulation applications in various industries.
| Parameters | Value |
|---|---|
| Vertical compression strength | ≥350MPa |
| Impact strength | Charpy Type ≥33kJ/m² |
| Characteristics | Good Electricals Stability And High Mechanical Strength |
| Parallel BDV | ≥35kv In Oil Of 90℃ |
| Density | 1.8-2.0g/cm3 |
| Material | Epoxy Resin/Fiberglass Cloth |
| Water Absorption | ≤0.04% |
| Flexural Strength | ≥340MPa |
| Vertical BDV | ≥11.8kv/mm In Oil Of 90℃ |
| Shape | Plate/Sheet |

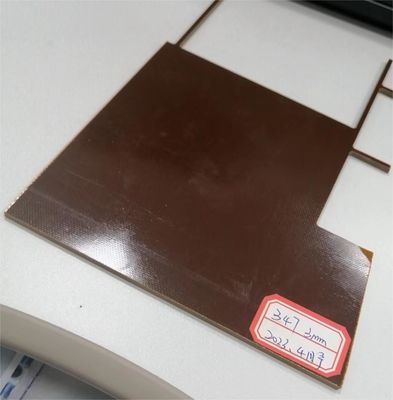

Electrical Insulation Board is a kind of insulating plate manufactured by China with a model number of EPGC347. It has a vertical breakdown voltage of 11.8kv/mm in oil of 90℃, and an extremely low water absorption rate of ≤0.04%. This product has excellent electrical stability and high mechanical strength, with its impact strength being ≥33kJ/m² and its vertical compression strength being ≥350MPa. It is widely used for insulation purposes in many industries, such as electricity, electronics, and telecommunications. Electrical Insulation Board is the perfect choice for anyone who needs a reliable and durable insulation material.
Are you looking for a reliable supplier of electrical insulation plates? Look no further! We offer customized Electrical Insulation Plate EPGC347 from China with excellent quality and reliable performance.
Our electrical insulation plate has the following characteristics:
Our Electrical Insulation Plate G-10 is of superior quality, and is perfect for various applications. We provide customized electrical insulation plate solutions to meet your specific needs. Contact us now to get the best electrical insulation plate!
We provide technical support and services for Electrical Insulation Board. Our services include:
Q: What is Electrical Insulation Board?
A: Electrical Insulation Board is a type of board made of electrical grade fiberglass and resin. It is used for electrical insulation, heat insulation, and mechanical protection.
Q: What is the model number of Electrical Insulation Board?
A: The model number of Electrical Insulation Board is EPGC347.
Q: Where is Electrical Insulation Board made?
A: Electrical Insulation Board is made in China.
Q: What size is Electrical Insulation Board available in?
A: Electrical Insulation Board is available in 8x12 size.
Q: What are the uses of Electrical Insulation Board?
A: Electrical Insulation Board is used for electrical insulation, heat insulation, and mechanical protection.
