Laminated Electrical Insulating Material Epoxy Resin Glass Fiber Cloth

Laminated Electrical Insulating Material Epoxy Resin Glass Fiber Cloth
Laminated Electrical Insulating Material Epoxy Resin Glass Fiber Cloth Laminated Electrical Insulating Material Epoxy Resin Glass Fiber Cloth

Large Image :  Laminated Electrical Insulating Material Epoxy Resin Glass Fiber Cloth

Product Details:
Place of Origin: China
Certification: Rohs
Model Number: EPGC201
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sheets
Price: quoted per size
Packaging Details: pallet
Delivery Time: about 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000 sheets per month

Laminated Electrical Insulating Material Epoxy Resin Glass Fiber Cloth

Description
Parallel BDV: ≥35kv In Oil Of 90℃ Water Absorption: ≤0.04%
Flexural Strength: ≥340MPa Color: Black/ Green/ Blue/ Yellow/ Red
Vertical Compression Strength: ≥350MPa Surface: Smooth/no Significant Defect
Density: 1.8-2.0g/cm3 Dielectric Constant: ≤5.5
High Light:

Glass Fiber Cloth Electrical Insulating Sheet

,

Epoxy Resin Laminated Electrical Insulating Board

,

0.2mm Insulation Board Electrical

Product Description:

Electrical Insulation Board is a high performance electrical insulating material, specifically designed to provide superior resistance to high voltage. It is manufactured using quality materials that are highly resistant to oil and water, and ensure a smooth surface with no significant defects. The Parallel BDV of the board is ≥35kV in oil of 90℃, providing excellent insulation protection. It also features a water absorption of ≤0.04%, as well as high flexural and vertical compression strength of ≥340MPa and ≥350MPa respectively. With its excellent electrical insulation, high strength and resistance to high voltage, Electrical Insulation Board is an ideal choice for a wide range of applications.



Features:

  • Product Name: Electrical Insulation Board
  • Thickness: 0.2mm-30mm
  • Parallel BDV: ≥35kv In Oil Of 90℃
  • Vertical Compression Strength: ≥350MPa
  • Shape: Plate/Sheet
  • Water Absorption: ≤0.04%
  • Insulating Electrical Board: Yes
  • Electrical Insulating Material: Yes


Technical Parameters:

Property Value
Vertical compression strength ≥350MPa
Water Absorption ≤0.04%
Thickness 0.2mm-30mm
Impact strength Charpy Type ≥33kJ/m²
Vertical BDV ≥11.8kv/mm In Oil Of 90℃
Dielectric Constant ≤5.5
Flexural Strength ≥340MPa
Material Epoxy Resin/Fiberglass Cloth
Shape Plate/Sheet
Density 1.8-2.0g/cm3


Applications:

Electrical Insulation Board, model EPGC201, is a specialized plate/sheet made from materials of high density (1.8-2.0g/cm3) and high impact strength (Charpy Type ≥33kJ/m²). This electrical insulation board has excellent insulation performance, with a parallel BDV of ≥35kv in oil of 90℃. With a smooth, defect-free surface, this insulation board offers superior protection from electrical shock, thereby ensuring the safety of electrical devices.

This electrical insulation board is often used in a wide array of applications, such as in power transmission and distribution equipment, electrical appliances, motors, transformers, circuits, and other electrical devices. Its thermal stability and high-temperature performance make it suitable for use in high-temperature environments. In addition, its light weight and high strength make it a perfect choice for applications such as sound insulation, fire insulation, and heat insulation.

With its excellent electrical insulation properties and superior impact strength, Electrical Insulation Board EPGC201 is a reliable and cost-effective solution for electrical insulation needs. It is also highly resistant to moisture, chemicals, and corrosion, making it an ideal choice for the most demanding applications.



Customization:

Insulating Electrical Board, Electric Insulation Material

Our Electric Insulation Material Board (Model Number: EPGC201) is made of Epoxy Resin and Fiberglass Cloth with a Density of 1.8-2.0g/cm3, and it has a Parallel BDV of ≥35kv In Oil Of 90℃. It is provided in Plate/Sheet shape with sizes of 1220x2040/1020x1220 and is made in China.



Support and Services:

Technical Support and Service for Electrical Insulation Board

Our technical support and service for Electrical Insulation Board is provided by experienced engineers who can provide expert guidance and advice on all aspects of product application and installation. We provide comprehensive technical support for the design, installation, operation and maintenance of all our products, including:

  • Advice on product selection, application and installation
  • Technical guidance on product features and benefits
  • Assistance with product installation and maintenance
  • Product troubleshooting and problem solving
  • Access to product documentation and technical drawings

Our technical support team is available to answer your questions and provide assistance quickly and efficiently. We also offer on-site support for product installation and troubleshooting, as well as on-going technical support and maintenance.



Packing and Shipping:

Packaging and Shipping of Electrical Insulation Board

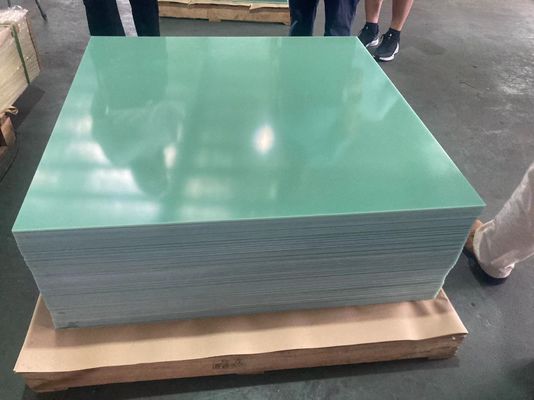

Electrical insulation board is typically shipped flat with carbon board, and/or plastic wrapping for extra protection. The board is then placed onto pallets to ensure that it reaches its destination in undamaged condition.



FAQ:


Q1: What's the model number of the Electrical Insulation Board?
A1: The model number of the Electrical Insulation Board is EPGC201.
Q2: Where is the Electrical Insulation Board manufactured?
A2: The Electrical Insulation Board is manufactured in China.
Q3: What are the applications of the Electrical Insulation Board?
A3: The Electrical Insulation Board is mainly used for electrical insulation, precision star wheel and other purposes.
Q4: What material is the Electrical Insulation Board made of?
A4: The Electrical Insulation Board is made of high-quality epoxy resin and fiberglass cloth.
Q5: What is the thickness of the Electrical Insulation Board?
A5: The thickness of the Electrical Insulation Board is usually 0.5cm to 3cm.
