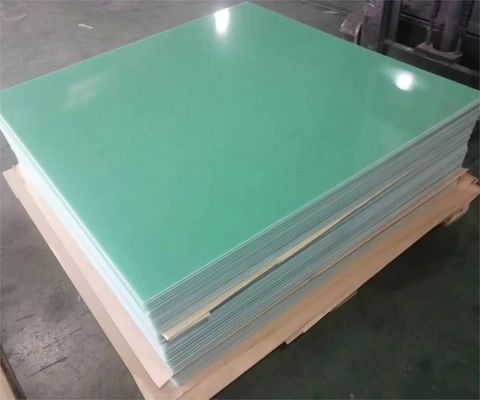

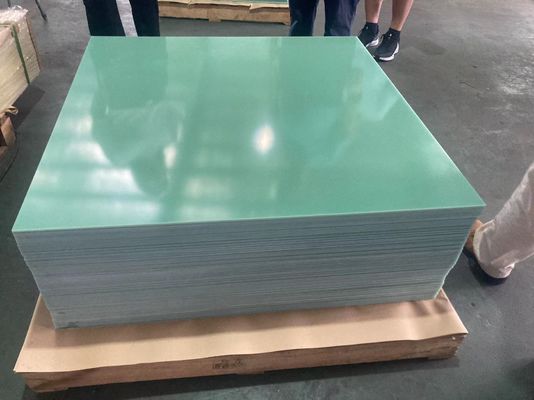

Charpy Type ≥33kJ/M2 Electrical Insulation Board Plate / Sheet 1220x2040/1020x1220

Charpy Type ≥33kJ/M2 Electrical Insulation Board Plate / Sheet 1220x2040/1020x1220
Charpy Type ≥33kJ/M2 Electrical Insulation Board Plate / Sheet 1220x2040/1020x1220 Charpy Type ≥33kJ/M2 Electrical Insulation Board Plate / Sheet 1220x2040/1020x1220

Large Image :  Charpy Type ≥33kJ/M2 Electrical Insulation Board Plate / Sheet 1220x2040/1020x1220

Product Details:
Place of Origin: China
Certification: Rohs
Model Number: EPGC201 (G-10)
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sheets
Price: quoted per size
Packaging Details: pallet
Delivery Time: about 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000 sheets per month

Charpy Type ≥33kJ/M2 Electrical Insulation Board Plate / Sheet 1220x2040/1020x1220

Description
Dielectric Constant: ≤5.5 Flexural Strength: ≥340MPa
Density: 1.8-2.0g/cm3 Surface: Smooth/no Significant Defect
Impact Strength: Charpy Type ≥33kJ/m² Material: Epoxy Resin/Fiberglass Cloth
Size: 1220x2040/1020x1220 Vertical BDV: ≥11.8kv/mm In Oil Of 90℃
High Light:

1.8g/cm3 Electrical Insulation Board

,

Smooth Fiberglass Electrical Insulation Board

,

Electrical Insulation Plate Temperature Resistant

Product Description:

Electric Insulation Board is an electrical insulation material used to provide electrical protection and insulation in a variety of applications. It has a density of 1.8-2.0g/cm3 and is available in a variety of colors, including black, green, blue, yellow, and red. Its impact strength is of Charpy Type ≥33kJ/m², with a parallel BDV of ≥35kv in oil of 90℃. It also has a dielectric constant of ≤5.5. This Electric Insulation Board provides superior electrical insulation and protection, making it an ideal choice for a wide range of applications.



Features:

  • Product Name: Electrical Insulation Board
  • Dielectric Constant: ≤5.5
  • Impact strength: Charpy Type ≥33kJ/m²
  • Vertical BDV: ≥11.8kv/mm In Oil Of 90℃
  • Vertical compression strength: ≥350MPa
  • Water Absorption: ≤0.04%
  • Electric Insulation Material: Electrical Insulation Plate, Electric Insulation Material, Electrical Insulation Board


Technical Parameters:

Parameters Values
Shape Plate/Sheet
Flexural Strength ≥340MPa
Thickness 0.2mm-30mm
Parallel BDV ≥35kv In Oil Of 90℃
Size 1220x2040/1020x1220
Impact strength Charpy Type ≥33kJ/m²
Material Epoxy Resin/Fiberglass Cloth
Vertical compression strength ≥350MPa
Color Black/ Green/ Blue/ Yellow/ Red
Density 1.8-2.0g/cm3


Applications:

The Electrical Insulation Board (Model Number: EPGC201 or G-10) is a high-performance insulating material made of epoxy resin and fiberglass cloth from China. It features excellent impact strength of up to Charpy Type ≥33kJ/m², vertical compression strength of ≥350MPa, and a thickness of 0.2mm-30mm. It also comes in five different colors: Black/ Green/ Blue/ Yellow/ Red.

This Electrical Insulation Board is widely used in a variety of Insulating Electrical Board Applications. Its high insulating capacity and resistance to temperature and high voltage make it ideal for electrical insulation, electrical equipment protection, electrical power distribution, and other electrical engineering applications. It is also used in automotive, aviation, medical, and electronic industries.

This Electrical Insulation Board is an ideal choice for Electrical Insulation Board Applications. It can effectively protect fragile electrical equipment from short circuit and power surges. Furthermore, its good insulation performance and chemical stability make it suitable for long-term use in harsh conditions. Its fire-resistant properties also make it a great choice for fire safety.



Customization:

We provide custom service for Electrical Insulation Board with the model number of EPGC201(G-10). This board is made of high quality epoxy resin and fiberglass cloth. It is produced in China and has excellent insulation performance with a dielectric constant of ≤5.5, flexural strength of ≥340MPa, and water absorption of ≤0.04%. It is perfect for Insulating Electrical Board and Electrical Insulation Plate/Sheet.



Support and Services:

Electrical Insulation Board Technical Support and Services

We provide comprehensive technical support and services for Electrical Insulation Board products. Our team of industry experts will be available to answer any questions you may have regarding the product, and provide detailed support to ensure that the product meets your needs.

We provide a full range of support services, including installation, troubleshooting, and maintenance. Our team of technicians is on-hand to provide assistance with product installation and operation. We also offer technical support to help diagnose and resolve any issues that may arise while using the product.

We also provide regular maintenance services for Electrical Insulation Board products. Our team of technicians can perform routine checks and repairs to ensure that the product is functioning correctly and efficiently. We can also provide replacement parts if necessary.

Our team of experts is here to provide you with the highest level of technical support and service. We are committed to providing you with the best experience possible when using our products.



Packing and Shipping:

Packaging and Shipping Electrical Insulation Board

Electrical insulation board is a delicate product that requires special care when being packaged and shipped. Here's what you need to know for a successful shipment:

  • Pack the insulation board onto pallets.
  • Make sure the pallet is properly sealed and that all seams by wrapping film.
  • Label the pallet with a warning label that states the contents are fragile and should be handled with care.
  • Ship the insulation board using a reputable carrier that offers tracking and insurance.


FAQ:

Q&A about Electrical Insulation Board (Model Number: EPGC201, Place of Origin: China)
  • Q: What is the purpose of Electrical Insulation Board (Model Number: EPGC201)?
    A: Electrical Insulation Board (Model Number: EPGC201) is a type of insulation board manufactured in China. It is designed to provide excellent electrical insulation performance for power and electronic equipment.
  • Q: What are the features of Electrical Insulation Board (Model Number: EPGC201)?
    A: Electrical Insulation Board (Model Number: EPGC201) features excellent electrical insulation properties, flame retardant performance, high mechanical strength, and good thermal stability.
  • Q: What are the applications of Electrical Insulation Board (Model Number: EPGC201)?
    A: Electrical Insulation Board (Model Number: EPGC201) is widely used in power and electronic equipment, such as transformers, electric motors, generators, and other equipment.
  • Q: What is the thickness of Electrical Insulation Board (Model Number: EPGC201)?
    A: The thickness of Electrical Insulation Board (Model Number: EPGC201) ranges from 0.5mm to 30mm.
  • Q: What is the temperature range of Electrical Insulation Board (Model Number: EPGC201)?
    A: The temperature range of Electrical Insulation Board (Model Number: EPGC201) is -30°C to 130°C.
