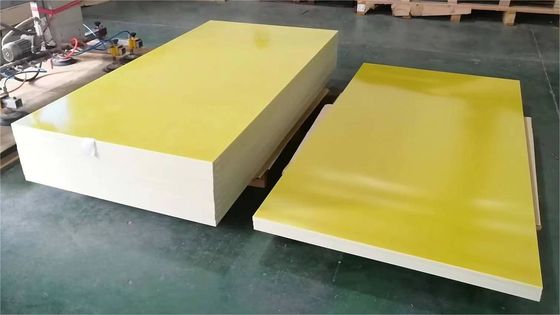

Epoxy Resin / Fiberglass Cloth Electrical Insulation Board High Insulation Efficiency

Epoxy Resin / Fiberglass Cloth Electrical Insulation Board High Insulation Efficiency
Epoxy Resin / Fiberglass Cloth Electrical Insulation Board High Insulation Efficiency Epoxy Resin / Fiberglass Cloth Electrical Insulation Board High Insulation Efficiency Epoxy Resin / Fiberglass Cloth Electrical Insulation Board High Insulation Efficiency Epoxy Resin / Fiberglass Cloth Electrical Insulation Board High Insulation Efficiency

Large Image :  Epoxy Resin / Fiberglass Cloth Electrical Insulation Board High Insulation Efficiency

Product Details:
Place of Origin: China
Certification: Rohs
Model Number: EPGC201
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sheets
Price: quoted per size
Packaging Details: pallet
Delivery Time: about 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000 sheets per month

Epoxy Resin / Fiberglass Cloth Electrical Insulation Board High Insulation Efficiency

Description
Vertical Compression Strength: ≥350MPa Size: 1220x2040/1020x1220
Vertical BDV: ≥11.8kv/mm In Oil Of 90℃ Parallel BDV: ≥35kv In Oil Of 90℃
Water Absorption: ≤0.04% Density: 1.8-2.0g/cm3
Color: Black/ Green/ Blue/ Yellow/ Red Impact Strength: Charpy Type ≥33kJ/m²
High Light:

Epoxy Resin Electrical Fiberboard 30mm

,

Fiberglass Cloth Electrical Panel Insulation Board

,

High Insulation Efficiency Electrical Fiberglass Board

Product Description:

Electric Insulation Board is a kind of electrical insulation material with excellent performance. It is made of high-quality epoxy resin and fiberglass cloth with a density ranging from 1.8-2.0g/cm3. The Parallel BDV is ≥35kv in oil of 90℃, and water absorption is ≤0.04%. Its size is available in 1220x2040 or 1020x1220.

The Electric Insulation Board is widely used in a variety of insulation applications. It has good insulation and dielectric properties and provides reliable electrical insulation performance. It is also resistant to chemicals, moisture, heat, and has excellent flame retardant properties.

The Electric Insulation Board is easy to install and maintain, and can be cut into any size and shape according to the requirements. It has the advantages of lightweight, rigid structure, and superior electrical performance, making it an ideal choice for electrical insulation and protection.



Features:

  • Product Name: Electrical Insulation Board
  • Shape: Plate/Sheet
  • Material: Epoxy Resin/Fiberglass Cloth
  • Dielectric Constant: ≤5.5
  • Color: Black/ Green/ Blue/ Yellow/ Red
  • Flexural Strength: ≥340MPa
  • Keywords: Electrical Insulating Material, Electric Insulation Material, Electrical Insulation Plate


Technical Parameters:

Property Value
Color Black/ Green/ Blue/ Yellow/ Red
Shape Plate/Sheet
Vertical BDV ≥11.8kv/mm In Oil Of 90℃
Dielectric Constant ≤5.5
Thickness 0.2mm-30mm
Impact strength Charpy Type ≥33kJ/m²
Size 1220x2040/1020x1220
Water Absorption ≤0.04%
Material Epoxy Resin/Fiberglass Cloth
Parallel BDV ≥35kv In Oil Of 90℃


Applications:

The Electrical Insulation Board (Model Number: EPGC201) is a type of electrical insulating material manufactured in China. It is a durable and reliable electric insulation material with a thickness ranging from 0.2mm to 30mm. It has a dielectric constant of ≤5.5, a vertical breakdown voltage of ≥11.8kv/mm in oil at 90℃, and a parallel breakdown voltage of ≥35kv in oil at 90℃. The Electrical Insulation Board is available in a plate/sheet shape. It is widely used in various electrical and electronic applications.



Customization:

Customized Electrical Insulation Board


Our Electrical Insulation Board is made of epoxy resin and fiberglass cloth, with model number EPGC201. It is manufactured in China, and is available in Thickness of 0.2mm-30mm. It has a Flexural Strength of ≥340MPa and Dielectric Constant of ≤5.5. The Size of the board is 1220x2040/1020x1220.



Our Electrical Insulation Board is perfect for electric insulation material, and is an ideal choice for electrical insulation board manufacturers.



Support and Services:

Electrical Insulation Board Technical Support and Service

At UN.Tex(Dalian) Company, we provide technical support and service for all of our electrical insulation board products. We have a team of experienced professionals who are ready to assist you with any questions or concerns related to the installation, operation, or maintenance of your board. Our team is available 24/7 to answer your questions and address any issues you may face.

We also offer a wide range of resources to help you with your installation, such as installation instructions, diagrams, and troubleshooting tips. Additionally, we provide free technical support for all of our products, so you can get the answers you need quickly and easily.

If you have any questions or need more information, please contact us at info@un-tex.com.



Packing and Shipping:

Packaging and Shipping for Electrical Insulation Board:

Packaging: Electrical insulation boards are generally supplied in pallets.

Shipping: Electrical insulation boards should be shipped in accordance with the manufacturer's instructions. It’s recommended to ship the boards by air or sea. Additionally, it’s important to check the boards for any possible damage before shipping.



FAQ:

Q1: What is the model number of the Electrical Insulation Board?

A1: The model number of the Electrical Insulation Board is EPGC201.

Q2: Where is the Electrical Insulation Board made?

A2: The Electrical Insulation Board is made in China.

Q3: What is the Electrical Insulation Board made of?

A3: The Electrical Insulation Board is made from an environmentally friendly and fire-retardant material(some special artical, such as EPGC202 OR EPGC204).

Q4: What is the purpose of the Electrical Insulation Board?

A4: The Electrical Insulation Board is used to improve the safety of electrical equipment by providing insulation against electric shock.

Q5: What is the size of the Electrical Insulation Board?

A5: The Electrical Insulation Board is available in a variety of sizes to meet your needs.
