PRODUCTS DETAILS

Home > Products >

7um Aluminum Foil Glass Cloth Tape Laminated Flame Retardant

Products

Heat Resistant Insulation Tape

Aluminum Foil Glass Cloth Tape

Aluminum Foil Fiberglass Cloth

Electrical Insulation Board

info@un-tex.com

0086-13052726305

Contact Now

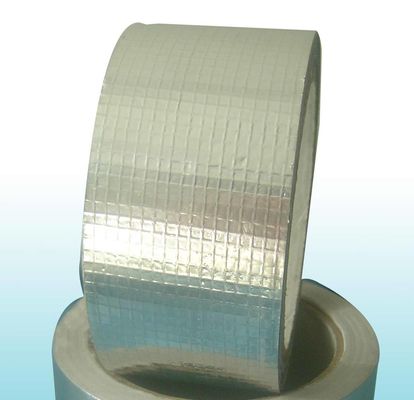

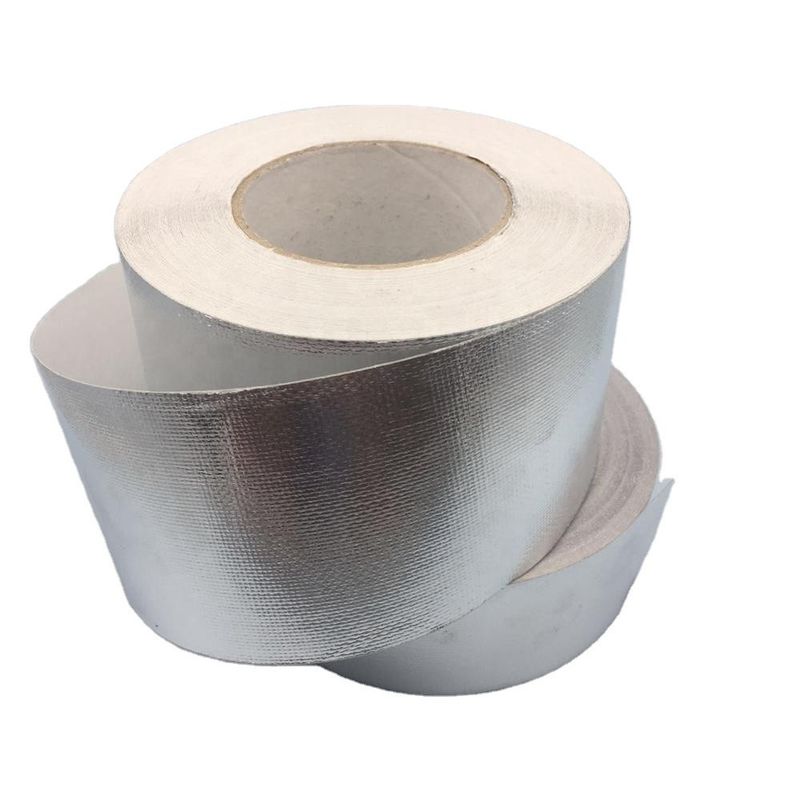

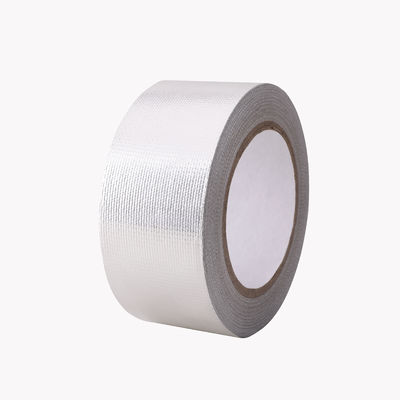

7um Aluminum Foil Glass Cloth Tape Laminated Flame Retardant

MOQ:	10,000squre meter
Price:	by quote
Standard Packaging:	Export carton case and pallet
Delivery Period:	30 working days
Payment Method:	L/C, T/T
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Model Number

AG725R

Backing Material:

7u Foil / FR Glue / 90g Glass Cloth

Adhesive:

Solvent Acrylic Adhesive

Service Temperature Range:

-30 +120 C (-22~ +248 F)

Backing Thickness:

0.12mm

Adhesive Weight:

50g/m2

Fire Rating:

Class O (BS476 Pt 6 & 7)

Releasing Paper:

No Releasing Paper

Tape Thickness:

0.17mm

Highlight:

7um Aluminum Foil Glass Cloth Tape

Aluminum Foil Glass Cloth Tape Flame Retardant

0.17mm self adhesive fiberglass tape

Product Description

Aluminum-Glass Cloth Tape

PRODUCT DESCRIPTION

Aluminum-Glass Cloth backing (7u Foil / FR Glue / 90g Glass Cloth), combined with a high performance flame retardant solvent acrylic adhesive.

FEATURES

• Aluminum-Glass Cloth backing provides excellent reflection of both heat and light.

• High quality adhesive with super strong adhesion and holding power offers reliable and durable Aluminum-Glass Cloth Facing joints and seams sealing in industrial pipe thermal insulation application,

• Low moisture vapor transmission rate makes AG725R an excellent vapor barrier.

• Service Temperature range from -30 ~ +120 °C (-22~ +248 °F)

TYPICAL PHYSICAL PROPERTIES

PROPERTIES	METRIC	TEST METHOD
Backing Thickness	0.12mm	PSTC-133
Total Thickness	0.17mm	PSTC-133
Adhesive weight	50g/m2	Scale
Adhesion to Steel	≥18 N/25mm	PSTC-101
Ball Tack	20CM	PSTC-6
Service Temperature	-30 ~ +120 °C	------------
Fire Rating	Class O & 25/ 50	BS476 Pt 6 & 7

TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.

PRODUCT FORM & SIZE AVAILABLE

Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Roll width:1000mm,1200mm

Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
