Product Details:
|
| Adhesive Type: | High Performance Rubber Resin Adhesive | Backing Thickness Um: | 0.150mm |
|---|---|---|---|
| Fire Rating: | Class O | Cut Roll Width: | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4"). |
| Log Roll Width: | 1000mm，1200mm | Backing Mateiral: | Al Foil Laminated Glass Cloth |
| Total Thickness: | 0.250mm | ||
| Highlight: | Flame Retardant self adhesive aluminum foil tape,self adhesive aluminum foil tape 0.15mm,0.15mm self adhesive aluminum tape |
||
PRODUCT DESCRIPTION

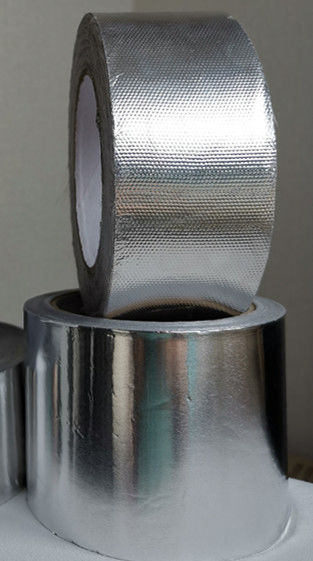

Aluminum-Glass Cloth backing (18u Foil / FR Glue / 8x8 Mesh Glass Cloth), combined with a high performance Rubber Resin adhesive, protected by an easy-release silicone release paper.
FEATURES
• Aluminum-Glass Cloth backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable Aluminum-Glass Cloth Facing joints and seams sealing in industrial pipe thermal insulation application,
• Low moisture vapor transmission rate makes BondTape AG-1805HK an excellent vapor barrier.
• Service Temperature range from -10 ~ +80 °C.
TYPICAL PHYSICAL PROPERTIES
| Physical Properties | Value (Metric) | Test Method |
| Backing Thickness um | 0.150±0.015mm | PSTC-133 |
| Total Thickness um | 0.250±0.025mm | PSTC-133 |
| Adhesive weight g/m2 | 140±14 g/m2 | Scale |
| Adhesion to steel N/25mm | ≥22N/25mm | PSTC-101 |
| Ball Tack (Steel ball #) | ≥25 # | JIS Z0237 |
| Service Temperature | ------------ | -10 ~ +80 °C |
| Applying Temperature | ----------- | +10~ +40°C |
| Fire Rating | Less 25 / 50 | UL 723 / ASTM E84 |
| Fire Rating | Class O | BS476 Pt 6 & 7 |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Roll width:1000mm,1200mm
Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
