Class H Epoxy Fiberglass Laminate Sheet With High-Tg Epoxy Resin

Products

Heat Resistant Insulation Tape

Aluminum Foil Glass Cloth Tape

Aluminum Foil Fiberglass Cloth

Electrical Insulation Board

info@un-tex.com

0086-13052726305

Contact Now

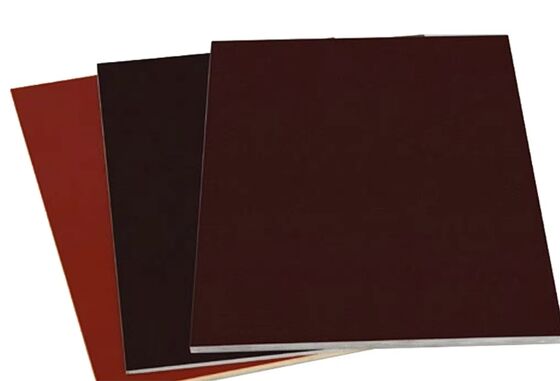

Class H Epoxy Fiberglass Laminate Sheet With High-Tg Epoxy Resin

MOQ:	1000kgs
Price:	basing on size and quantity
Standard Packaging:	pallet
Delivery Period:	30 working days
Payment Method:	T/T
Supply Capacity:	200000kgs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

Thickness:

1mm / 2 Mm

Tensile Strength (MD):

≥300MPa

Vertical Electric Strength:

≥ 14.2 KV/mm

Parallel Breakdown Voltage:

≥ 35kV

Dielectric Dissipation (50Hz):

≤ 0.04

Relative Permittivity (50Hz):

≤ 5.5

Comparative Tracking Index:

≥ 200

Insulation Resistance (after 24h Immersion In Water):

≥ 5.0 × 10^4 MΩ

Highlight:

High-Tg Epoxy Resin Fiberglass Laminate Sheet

Class H Insulation Electrical Insulation Board

≥300MPa Tensile Strength Fiberglass Laminate Sheet

Product Description

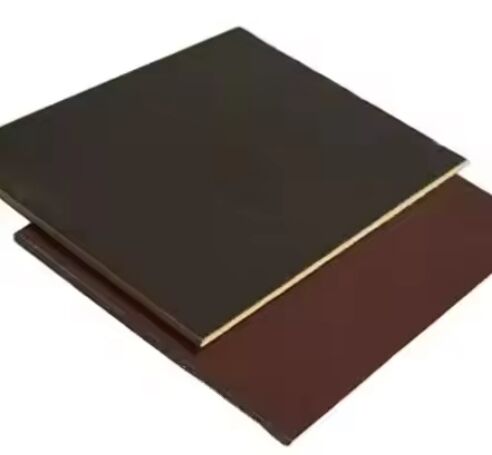

Class H Epoxy Fiberglass Laminate Sheet With High-Tg Epoxy Resin

Description

The epoxy fiberglass laminate sheet is hot-pressed from E-glass fiber cloth and high-Tg epoxy resin, offering H-class insulation. It features exceptional high-temperature strength and stable insulation performance in humid environments, making it ideal for high-reliability applications in electrical, electronic, and mechanical fields.

Technical Specifications

Parameter	Value
Thickness	1mm / 2mm
Tensile strength (MD)	≥300MPa
Vertical electric strength	≥14.2kV/mm
Parallel breakdown voltage	≥35kV
Comparative tracking index	≥200

Key Advantages

Excellent Thermal Resistance: Class H insulation rating enables reliable high-temperature operation with superior structural stability under thermal stress.
Reliable Electrical Insulation: Maintains stable dielectric performance even in demanding high-humidity environments.
Extended Service Life: Exceptional heat and moisture resistance contribute to long-term operational reliability.

Applications

High-Voltage Electrical Equipment: Offers robust insulation and mechanical support for components in switchgear and transformers.
Large Electric Motors: Provides long-lasting insulation for critical generator and motor assemblies, ensuring durability under demanding operational conditions.
Rail Transportation: Delivers consistent performance as insulation for traction motors and control systems, withstanding vibration and thermal cycling.

Tags:

Products

MOQ:	1000kgs
Price:	basing on size and quantity
Standard Packaging:	pallet
Delivery Period:	30 working days
Payment Method:	T/T
Supply Capacity:	200000kgs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

3250

Thickness:

1mm / 2 Mm

Tensile Strength (MD):

≥300MPa

Vertical Electric Strength:

≥ 14.2 KV/mm

Parallel Breakdown Voltage:

≥ 35kV

Dielectric Dissipation (50Hz):

≤ 0.04

Relative Permittivity (50Hz):

≤ 5.5

Comparative Tracking Index:

≥ 200

Insulation Resistance (after 24h Immersion In Water):

≥ 5.0 × 10^4 MΩ

Minimum Order Quantity:

1000kgs

Price:

basing on size and quantity

Packaging Details:

pallet

Delivery Time:

30 working days

Payment Terms:

T/T

Supply Ability:

200000kgs per month

Highlight

High-Tg Epoxy Resin Fiberglass Laminate Sheet

Class H Insulation Electrical Insulation Board

≥300MPa Tensile Strength Fiberglass Laminate Sheet

Product Description

Class H Epoxy Fiberglass Laminate Sheet With High-Tg Epoxy Resin

Description

Technical Specifications

Parameter	Value
Thickness	1mm / 2mm
Tensile strength (MD)	≥300MPa
Vertical electric strength	≥14.2kV/mm
Parallel breakdown voltage	≥35kV
Comparative tracking index	≥200

Key Advantages

Excellent Thermal Resistance: Class H insulation rating enables reliable high-temperature operation with superior structural stability under thermal stress.
Reliable Electrical Insulation: Maintains stable dielectric performance even in demanding high-humidity environments.
Extended Service Life: Exceptional heat and moisture resistance contribute to long-term operational reliability.

Applications

High-Voltage Electrical Equipment: Offers robust insulation and mechanical support for components in switchgear and transformers.
Large Electric Motors: Provides long-lasting insulation for critical generator and motor assemblies, ensuring durability under demanding operational conditions.
Rail Transportation: Delivers consistent performance as insulation for traction motors and control systems, withstanding vibration and thermal cycling.
