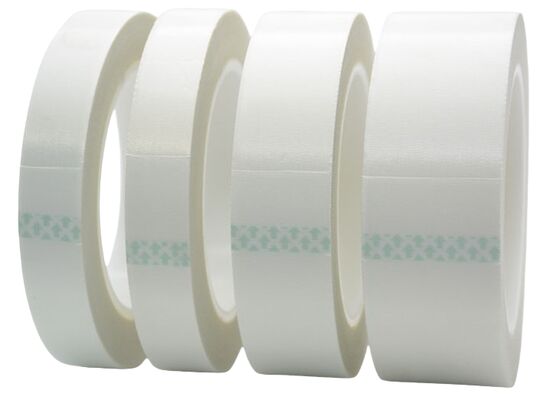

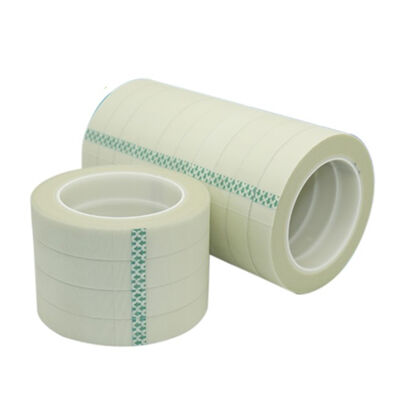

Glass Cloth Adhesive Insulation Tape With Silicone Release Paper

Glass Cloth Adhesive Insulation Tape With Silicone Release Paper
Glass Cloth Adhesive Insulation Tape With Silicone Release Paper Glass Cloth Adhesive Insulation Tape With Silicone Release Paper Glass Cloth Adhesive Insulation Tape With Silicone Release Paper

Large Image :  Glass Cloth Adhesive Insulation Tape With Silicone Release Paper

Product Details:
Place of Origin: China
Model Number: 652L
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square meters
Price: quoted as per size and quantity
Packaging Details: Each column shrink packed and then in export carton.
Delivery Time: about 30 days
Payment Terms: T/T,D/P,L/C
Supply Ability: 10000rolls per month
Contact Now

Glass Cloth Adhesive Insulation Tape With Silicone Release Paper

Description
Total Thickness: 0.16mm Base Thickness: 0.10mm
Material: High Density Glass Cloth Adhesive: Pressure-sensitive Acrylic Adhesive
Tensile Strength: ≥ 200N/10mm Service Temp.: -30~150℃
Roll Length: 30m Width: 10~500mm
Highlight:

≥4N/10mm Adhesion Glass Cloth Adhesive Tape

,

30m Roll Length Fiberglass Adhesive Tape

,

0.16mm Thickness Insulation Tape

Glass Cloth Adhesive Insulation Tape With Silicone Release Paper
Product Description

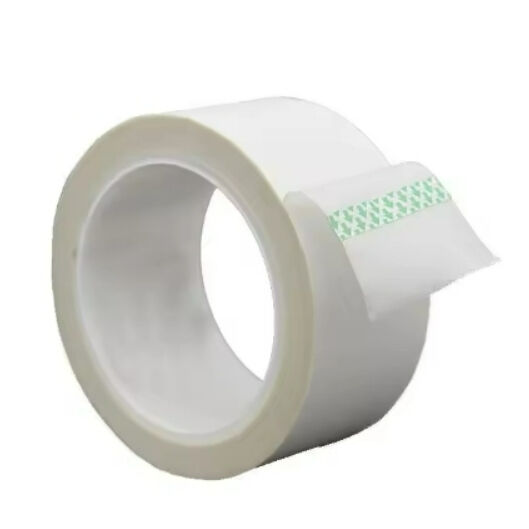

The glass cloth adhesive tape comes with a release liner. It features a 0.16mm thick high-density fiberglass cloth base material for robustness and Class F heat resistance. The high-performance acrylic pressure-sensitive adhesive ensures instant tack and long-term bonding, while the silicone-coated release paper offers easy application and protects the adhesive layer.
Technical Parameters
Parameters Value
Base Cloth Thickness 0.1mm
Total Thickness 0.16mm
Tensile strength ≥200N/10mm
Thermal grade F class
Adhesive Type H-Class Pressure-sensitive acrylic adhesive
Service Temp. -30~150℃
Advantages
  • Soft & Easy to Tear: Flexible backing tears cleanly by hand and conforms smoothly to irregular shapes for easy application.
  • High Mechanical Strength: Fiberglass cloth backing provides high tensile strength, excellent durability, and tear resistance.
  • Strong Adhesion: The adhesive offers reliable initial tack and long-term bonding on various surfaces.
Applications
  • Transformer Coil Wrapping: Ensures secure winding of coil leads with excellent tensile strength and reliable adhesion.
  • Lithium Battery Insulation: Provides explosion-proof and leak-proof insulation to enhance the safety of high-energy lithium batteries.
  • High-Temperature Protection: Offers reliable shielding in demanding environments such as sandblasting and welding operations.
Glass Cloth Adhesive Insulation Tape With Silicone Release Paper 0

Tag:

Glass Cloth Adhesive Tape 0.18mm,

0.18mm Glass Cloth Adhesive Tape,

H Grade Glass Cloth Adhesive Tape
