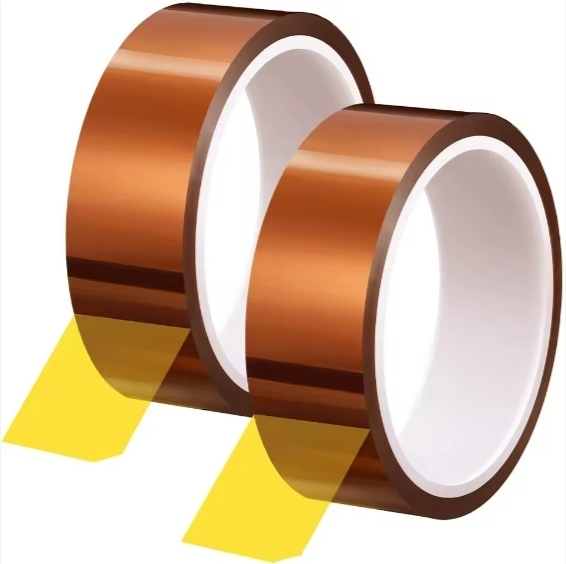

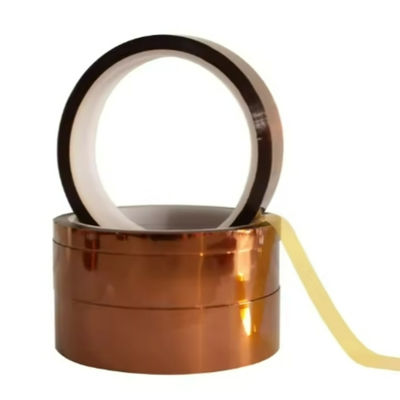

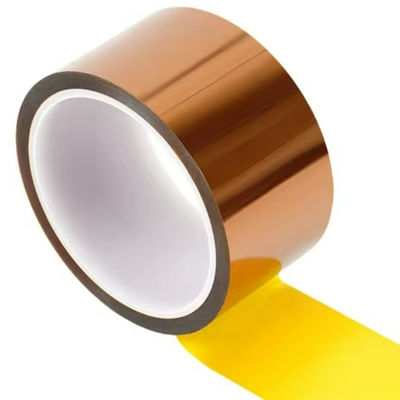

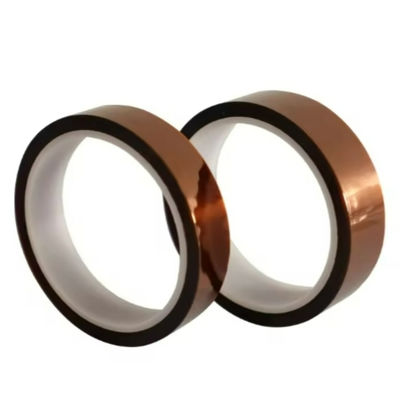

Polyimide Film Electrical Insulation Tape Class H With Silicone Adhesive

MOQ:	500m2
Price:	Usd1~5/roll
Standard Packaging:	Export carton case
Delivery Period:	35 working days
Payment Method:	L/C,T/T
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

CHINA

Certification

RoHS

Model Number

251

Color:

Amber Transparent

Base Material:

Polyimide Film

Adhesive:

Silicone Pressure Sensitive Adhesive

Thickness:

0.03~0.06±0.005mm / 0.061~0.10±0.010mm

Width:

5~50±0.5mm / ＞50±1.0mm

Length:

33~60m

Tensile Strength:

≥35N/cm

Elongation:

≥30%

Bond To Substrate:

≥1.5N/10mm

Bond To Steel Plate:

≥1.5N/10mm

Electrical Strength:

≥70MV/m

Working Temperature:

200℃

Highlight:

Polyimide film insulation tape

Electrical tape with silicone adhesive

Class H insulation adhesive tape

Product Description

Description:

The Polyimide Film Electrical Insulation Tape utilizes high-performance polyimide film as the base material and is coated on one side with specially formulated imported silicone pressure-sensitive adhesive. This combination enables the product to not only inherit the excellent electrical insulation, chemical resistance, and flame retardancy of polyimide film but also incorporate the unique wide-temperature tolerance and long-term bonding stability of silicone adhesive. It maintains structural integrity and adhesive strength even under harsh conditions, effectively resisting moisture, chemical solvents, and corona discharge. As a result, this product has become an indispensable key material in the manufacturing of high-end motors, electrical appliances, and electronic products, providing robust support for the reliability and miniaturization of modern industry.

Technical Parameters:

Parameter	Value
Tensile strength	≥35N/cm
Elongation	≥30%
Bond to substrate	≥1.5N/10mm
Bond to steel plate	≥1.5N/10mm
Electrical strength	≥70MV/m
Working temperature	200℃

Advantages:

Exceptional Temperature Resistance & Insulation
Offers high dielectric strength and reliable Class H insulation protection, effectively preventing electrical breakdown. Maintains stable performance in high-temperature environments to ensure long-term safety.
Strong Adhesion & Residue-Free Removal
Achieves an optimal balance between firm bonding and easy release. Excellent cohesion ensures smooth unwinding and clean removal without residue, perfectly protecting bonded surfaces.
Superior Physical & Chemical Protection
The robust base material resists puncturing, while the adhesive layer effectively defends against moisture, solvents, and corona discharge. Provides comprehensive and durable protection for components in harsh environments.
Premium Appearance & Easy Processing
The roll is flat with a uniform adhesive layer, free from bubbles and bleed-out. Precision slitting delivers neat edges, ensuring smooth and efficient automated application.

Application:

Electronics Circuit Manufacturing & Protection
Ideal for PCB wave soldering masking, gold finger protection, and high-temperature shielding and insulation for SMT components and electronic switches, ensuring circuit safety.
Motor & Transformer Insulation
Serves as a Class H insulation material for coil wrapping and end fixation in motors and transformers, delivering durable insulation and structural stability under high temperatures.
Lithium Battery Assembly & Fixation
Used for tab and module fixation and insulation in lithium batteries, withstanding operational temperature rises and electrolyte exposure to ensure battery safety and longevity.
Flexible Circuits & High-Temp Components
Suitable for FPC reinforcement, insulation, and high-temperature process protection, providing reliable insulation and moisture resistance for heat-intensive components.

Polyimide Film Electrical Insulation Tape Class H With Silicone Adhesive 0
