Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance

Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance
Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance
Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance

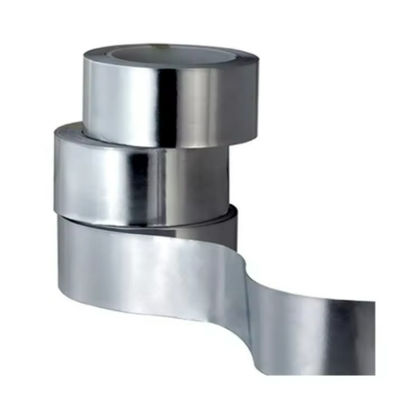

Large Image :  Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance

Product Details:
Place of Origin: China
Model Number: AF5025WL
Payment & Shipping Terms:
Minimum Order Quantity: 6000m2
Price: by quote
Packaging Details: Export carton case and pallet
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50,000m2 per month
Contact Now

Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance

Description
Backing Thickness: 50um Total Thickness: 90um
Adhesive: Solvent Acrylic Adhesion: 12N/25mm
Tensile: 75N/25mm Elongation: 3.0%
Service Temp.: -30℃ ~ +120℃ Applying Temp.: +10 ~ +40 °C
Winding Style: Self-wound Liner: Release-treated Backing, Linerless
Highlight:

Without Liner Aluminum Foil Tape

,

High Temperature Resistance Foil Tape

,

Low Temperature Resistance Self-Wound Tape

Self-Wound Cold Weather Aluminum Foil Tape Without Liner 90um Thickness
Product Description

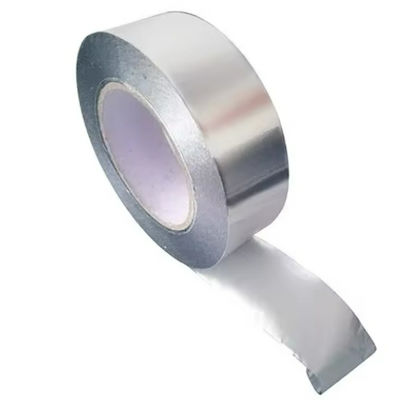

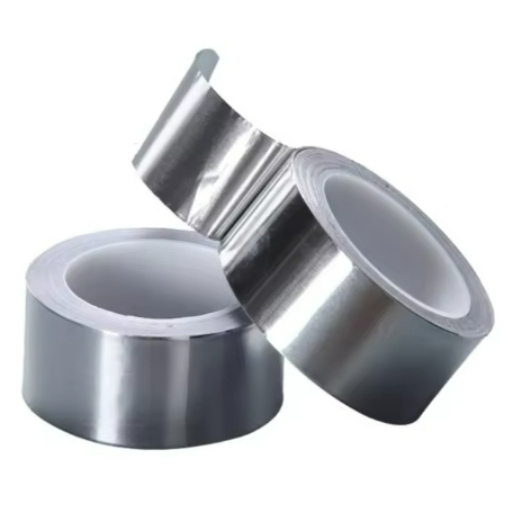

The Self-Wound Cold Weather Aluminum Foil Tape without Liner (Solvent Acrylic Adhesive) is a high-grade, self-wound foil tape engineered for demanding industrial environments. It combines a release-treated, heavier-grade aluminum foil backing with a high-performance solvent acrylic adhesive, eliminating the need for a release liner. This tape offers exceptional durability and excellent adhesion to FSK-faced insulation materials. Its outstanding resistance to both low and high temperatures makes it an ideal choice for the refrigerator industry, metal patching, and sound dampening applications.
Typical Physical Properties
Properties Metric
Backing Thickness 50 Micron
Total Thickness 90 Micron
Adhesion to Steel 12 N/25mm
Tensile Strength 75 N/25mm
Elongation 3.0 %
Service Temperature -30 ~ +120 °C
Applying Temperature +10 ~ +40 °C
Advantages
  • Excellent Temperature Resistance: Possesses superior resistance to both low and high temperatures, maintaining stable bonding performance and physical properties across a wide range without becoming brittle or overly soft.
  • Strong Bonding & Sealing Performance: The high-performance solvent-based acrylic adhesive delivers high ultimate bond strength and excellent adhesion to various challenging surfaces, such as FSK facings, creating a robust and long-lasting seal.
  • Superior Durability: The combination of a thicker 50-micron backing and high-performance adhesive provides enhanced resistance to tearing, puncturing, and environmental aging.
Applications
  • FSK Insulation Sealing: Specifically optimized for sealing joints and seams of FSK-faced insulation materials, ensuring the airtightness and integrity of the insulation system.
  • Refrigerator & Appliance Industry: Used in the manufacturing and repair of refrigerators, freezers, and cold storage facilities, where its low-temperature resistance ensures reliable bonding in freezing environments.
  • Metal Patching & Seam Sealing: Suitable for sealing seams on various metal ducts and housings, as well as for temporary repair of minor imperfections.
  • Sound Dampening Applications: Used for securing and sealing acoustic materials, particularly in vehicles or industrial equipment with fluctuating temperatures, to reduce vibration and noise.
Important Notes
  1. The data above are typical values only, and should not be used for specifications purpose.
  2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.
  3. Storage & Shelf life: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance 0
Self-Wound Aluminum Foil Tape Without Liner for High and Low Temperature Resistance 1
