Black Lacquered Aluminum Foil Waterproof Tape Sealing Edge For HVAC Ductwork And Pipe Insulation

MOQ:	10,000squre meter
Price:	by quote
Standard Packaging:	Export carton case and pallet
Delivery Period:	30 working days
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

China

Model Number

BAF3025

Adhesive Type:

High Performance Solvent Acrylic Adhesive

Backing Thickness Backing Thickness:

30 Microns

Service Temperature:

-30 +120 C

Releasing Paper:

White Releasing Paper

Total Thickness:

70 Um

Highlight:

Black Lacquered aluminum foil waterproof tape

aluminum foil waterproof tape Sealing Edge

30 Microns aluminum foil rubber tape

Product Description

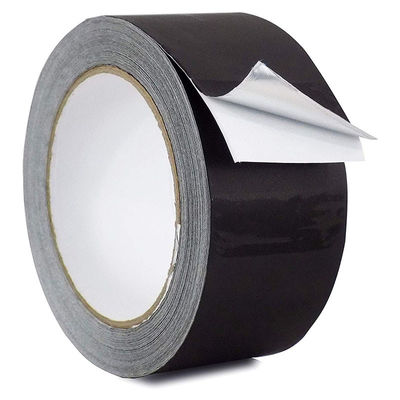

Black Lacquered Aluminum Foil Tape sealing edge for HVAC ductwork and pipe insulation

PRODUCT DESCRIPTION

Black lacquered 30 micron (1.2 mil) aluminum foil, combined with a high performance solvent acrylic adhesive, protected by an easy-release silicone release paper.

FEATURES

• Black lacquered aluminum foil, match the Black FSK Faced Ductwork and Pipe Insulation.

• Good aging resistance both indoors and outdoors.

• Low moisture vapor transmission rate offers excellent sealing and patching performance.

TYPICAL PHYSICAL PROPERTIES

PROPERTIES	UNIT	PROPERTIES	TEST METHOD
Black Coating	Microns	2.5	PSTC-133 / ASTM D 3652
Backing Thickness	Microns	30	PSTC-133 / ASTM D 3652
Total Thickness	Microns	70	PSTC-133 / ASTM D 3652
Adhesion to Steel	N/25mm	15	PSTC-101 / ASTM D 3330
Tack Rolling Ball	-	20cm	PSTC-6 / ASTM D 3121
Tensile Strength	N/25mm	45	PSTC-131 / ASTM D 3759
Elongation	%	3.0	PSTC-131 / ASTM D 3759
Service Temperature	°C	-30 ~ +120	------------
Applying Temperature	°C	+10 ~ 40	------------

Above results are typical value.

TYPICAL APPLICATIONS: HVAC industry for joining and sealing white lacquered Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board / pipe insulation’s joints and seams. May also be used for other industrial uses requiring a tape with these characteristics and benefits.

PRODUCT FORM & SIZE AVAILABLE

Cut Roll: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")

Log Roll: 1200mm x 45 / 50m Jumbo Roll: 1200mm x 1000m

IMPORTANT NOTE

1. The data above are typical values only, and should not be used for specifications purpose.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.

STORAGE & SHELF LIFE: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.

SURFACE PREPARATION: It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
