Product Details:
|
| Backing Thickness: | 75 Micron | Adhesive Type: | Solvent Acrylic Adhesive |
|---|---|---|---|
| Total Thickness: | 125um | Releasing Paper: | White Releasing Paper |
| Application: | Water Proofing Vapor Barrier And Air Leakage Protection | Heat Class: | Flame Resistant |
| High Light: | Premium Grade Aluminum Foil Adhesive Tape,Aluminum Foil Adhesive Tape Anti Rust,Anti Corrosion self adhesive aluminium tape |
||
Several foil thickness(different Art. No.) can choose as per your requirement, such as 100um, 125um.
PRODUCT DESCRIPTION

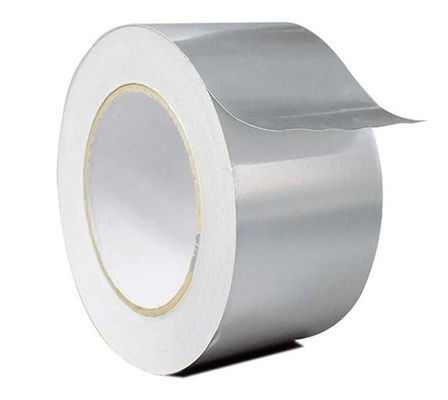

A 75 micron (3.0 mil) durable aluminum foil backing, combined with a high performance solvent acrylic adhesive, protected by an easy-release paper.
FEATURES
• Aluminum backing provides excellent long-term protection both indoors and outdoors.
• Heat and light reflective, flame resistant.
• High quality acrylic adhesive, long aging and weather resistance.
• Excellent water vapor barrier and air-leakage protection.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Backing Thickness | 75 Micron | 3.0 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 125 Micron | 5.0 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 18 N/25mm | 65 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tack Rolling Ball | 20 cm | 8.0 In. | PSTC-6 / ASTM D 3121 |
| Tensile Strength | 100 N/25mm | 22.7 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | %. | 5.0 | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ~ +1200 °C | -22 ~ +248 °F | ------------ |
| Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |

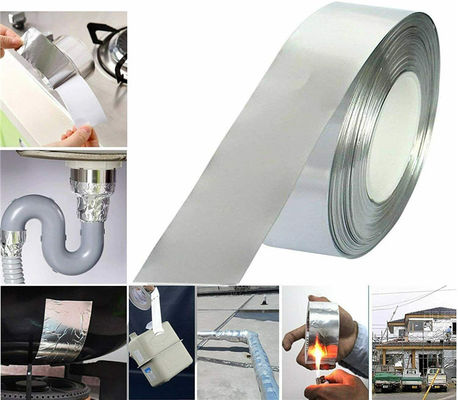

TYPICAL APPLICATIONS: The product can be used as a water proofing vapor barrier and air-leakage protection. High reflectivity assures effective heat light interference and electrical isolation shielding. Excellent protection for masking operations in electroplating and paint stripping. 3mil foil protects outdoor cable splices, metal patching and sound dampening applications.

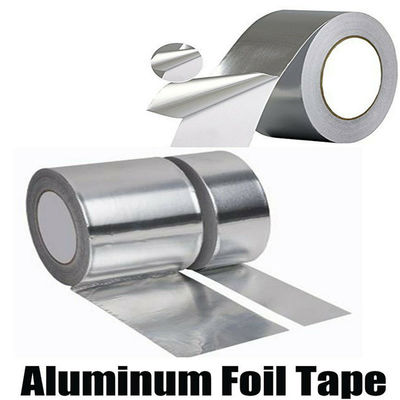

PRODUCT FORM & SIZE AVAILABLE
Cut Roll: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Log Roll: 1200mm x 45 / 50m Jumbo Roll: 1200mm x 800/1000m
STORAGE & SHELF LIFE: One year when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
SURFACE PREPARATION: It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
