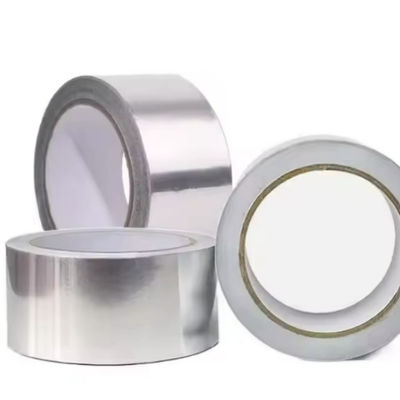

30um Aluminum Foil Tape with 15N/25mm Adhesion and 45N/25mm Tensile Strength for HVAC Sealing

MOQ:	6000m2
Price:	by quote
Standard Packaging:	Export carton case and pallet
Delivery Period:	30 working days
Payment Method:	T/T
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

China

Model Number

AF3005WL

Backing Thickness:

Total Thickness:

Adhesive:

Rubber-Resin

Adhesion:

15N/25mm

Tensile:

45N/25mm

Elongation:

Service Temp.:

-20℃ ~ +80℃

Applying Temp.:

+10 ~ +40 °C

Winding Style:

Self-wound

Liner:

Release-treated Backing, Linerless

Highlight:

15N/25mm Adhesion Aluminum Foil Tape

45N/25mm Tensile Aluminum Foil Tape

3.0% Elongation Aluminum Foil Tape

Product Description

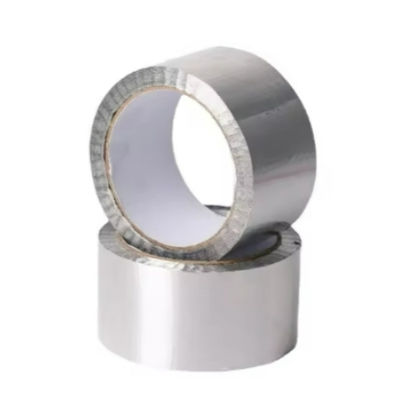

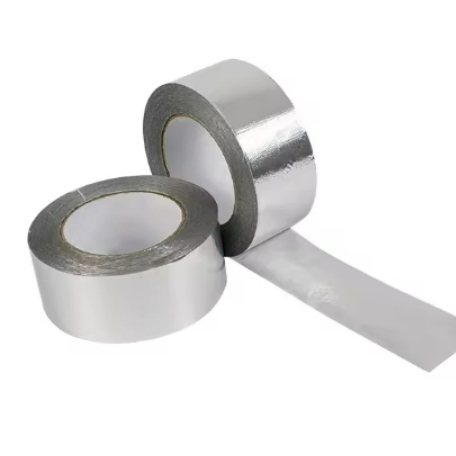

30um Aluminum Foil Tape Without Liner 70 Thickness With Rubber-resin Adhesive

Product Description

The Aluminum Foil Tape without Liner (Rubber-Resin Adhesive) is a commercial-grade, high-performance industrial tape designed to streamline the application process and provide reliable sealing and bonding. This product features a release-treated aluminum foil backing directly coated with a high-efficacy rubber-resin adhesive, eliminating the need for a traditional release paper liner. Its self-wound construction allows for quick and efficient application, making it ideal for sealing tasks in the HVAC and refrigeration industries.

Typical Physical Properties

Properties	Metric
Backing Thickness	30 Micron
Total Thickness	70 Micron
Adhesion to Steel	15 N/25mm
Tensile Strength	45 N/25mm
Elongation	3.0 %
Service Temperature	-20 ~ +80 °C
Applying Temperature	+10 ~ +40 °C

Advantages

Easy Application & High Efficiency: The unique self-wound, linerless design eliminates the step of peeling off a release paper, enabling one-handed, continuous operation. This significantly improves work efficiency and reduces material waste.
Strong Adhesion & Effective Sealing: The rubber-resin adhesive offers high initial tack and strong final bond strength, creating a durable, airtight seal that effectively resists peel and shear stresses.
Excellent Material Compatibility: The aluminum foil backing provides good weather resistance, moisture resistance, and corrosion resistance. The rubber-resin adhesive adheres well to various surfaces, such as metal, plastic, and painted surfaces.

Applications

HVAC Systems: Widely used for sealing duct joints, repairing duct cracks, and securing insulation materials to ensure system airtightness and improve energy efficiency.
Refrigeration Industry: Used for wrapping pipes, sealing seams, and fixing insulation layers in refrigerators, freezers, and cold storage facilities, effectively preventing coolant leakage and condensation.
General Industrial Sealing & Repair: Suitable for sealing various metal seams, grounding for EMI shielding in electronic equipment, and as a temporary repair material for metal surfaces.

Important Notes

The data above are typical values only, and should not be used for specifications purpose.
Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.
Storage & Shelf life: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
