PET High Temperature Splicing Tape Electrical Insulation Tape With Silicone Adhesive

The PET High temperature splicing tape is composed of an electrical-grade, low-shrinkage polyester film coated with an imported silicone pressure-sensitive adhesive. It is manufactured through a specialized drying and slitting process. This tape exhibits excellent adhesion, outstanding heat resistance, and strong chemical corrosion resistance, making it suitable for bonding hard-to-adhere materials.

Performance Parameters:

Parameter	Typical Specification / Description
Backing Material	Polyester Film (PET): Provides mechanical strength and stability.
Adhesive	Silicone Pressure-Sensitive Adhesive: The key to high-temperature resistance.
Thickness	0.09mm
Width	10mm~500mm
Length	50m

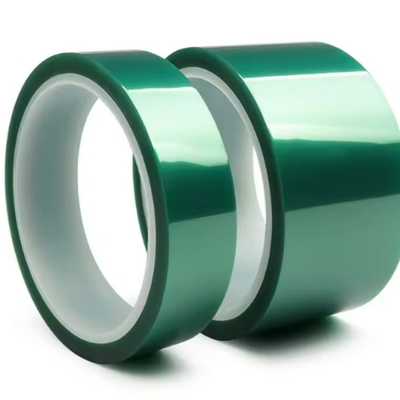

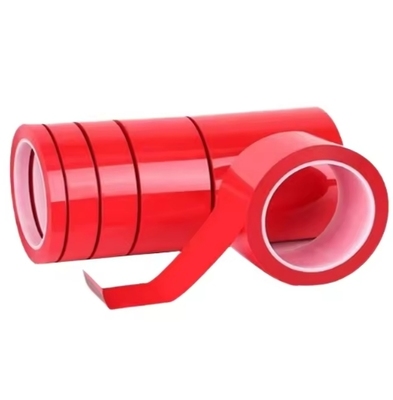

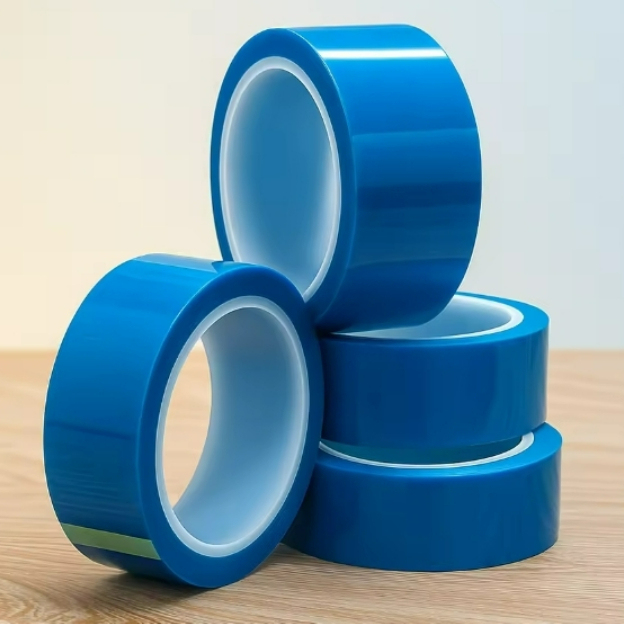

Color	Blue, green ,red

• Exceptional High-Temperature Resistance:  It can withstand the high temperatures of processes like wave soldering and reflow soldering without melting or leaving residue, effectively protecting workpieces.
• Excellent Electrical Insulation: Both the PET backing and silicone adhesive are good insulators, making the tape ideal for PCB protection and insulation in the electronics industry.
• Superior Chemical Stability: It resists erosion from various chemical solvents, acids, and alkalis, protecting adhered surfaces from contamination.
• High Strength and Puncture Resistance: The polyester film backing gives the tape high mechanical strength, preventing it from tearing or puncturing easily in harsh processing environments.

• Bonding Difficult Materials: Seamlessly joins hard-to-stick surfaces like silicone release papers and films during manufacturing processes.
• High-Temp Spray Masking: Reliably masks and protects sensitive areas, such as plastic electrical housings, during high-temperature spray painting.
• Corrosive & High-Temp Environments: Performs consistently in various applications demanding robust chemical resistance and thermal stability.
