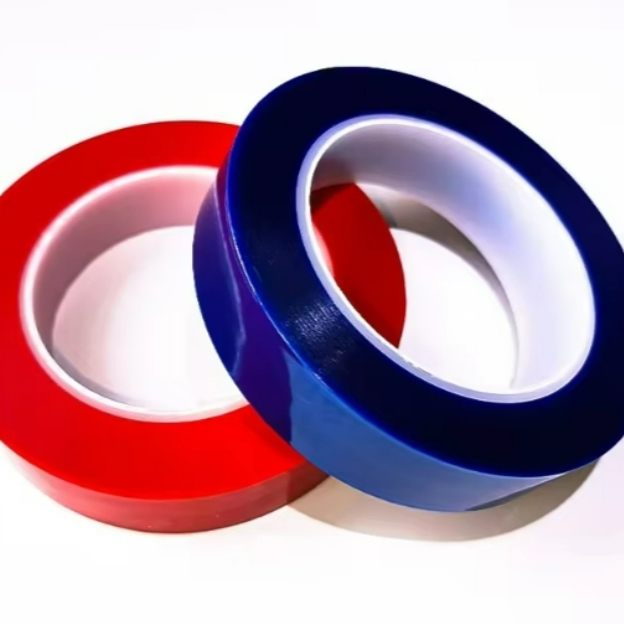

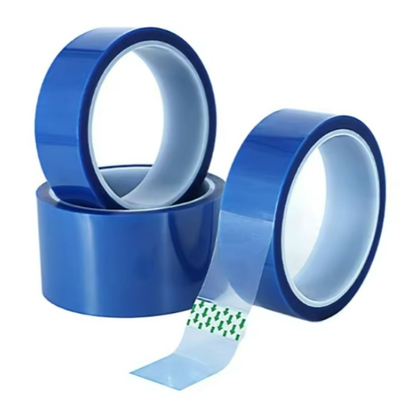

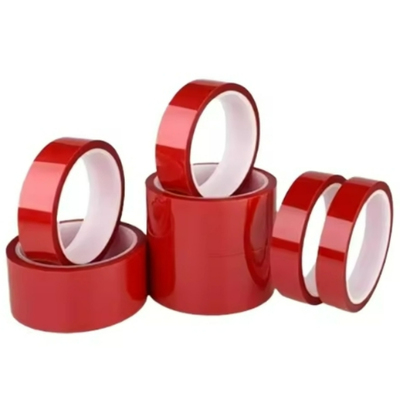

High-strength, Heat-resistant Pet Splicing Tape For Electrical Insulation

High-strength, Heat-resistant Pet Splicing Tape For Electrical Insulation
High-strength, Heat-resistant Pet Splicing Tape For Electrical Insulation
High-strength, Heat-resistant Pet Splicing Tape For Electrical Insulation High-strength, Heat-resistant Pet Splicing Tape For Electrical Insulation High-strength, Heat-resistant Pet Splicing Tape For Electrical Insulation High-strength, Heat-resistant Pet Splicing Tape For Electrical Insulation

Large Image :  High-strength, Heat-resistant Pet Splicing Tape For Electrical Insulation

Product Details:
Place of Origin: CHINA
Certification: RoHS
Model Number: 1334B
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: Usd1~5/roll
Packaging Details: Export carton case
Delivery Time: 30 working days
Payment Terms: L/C,T/T
Supply Ability: 50,000m2 per month
Contact Now

High-strength, Heat-resistant Pet Splicing Tape For Electrical Insulation

Description
Base Film Material: PET Film Adhesive Type: Silicone Adhesive
Thickness: 0.09mm Width: 10mm~500mm
Length: 50m Color: Blue, Green ,red
Chemical Resistance: Good UV Resistance: Good

Description:

PET high-temperature resistant joint tape is manufactured using an electrical-grade low-shrinkage polyester film coated with imported silicone pressure-sensitive adhesive. It is then dried and precisely slit with specialized equipment. This product offers excellent adhesion, outstanding heat resistance, and strong resistance to chemical corrosion. It is particularly suitable for bonding hard-to-adhere materials such as silicone release paper and low-surface-energy films.


Parameter Table:

Parameter Name Typical Value
Base film material PET film
Adhesive type Silicone adhesive
Length 50m
Thickness 0.09mm
Width 10mm~500mm
Color Blue, green ,red



Applications:
  • Joint bonding in the production of silicone release paper, films, and other difficult-to-adhere materials;
  • Masking for spray protection on electrical plastic housings, as well as other shielding applications;
  • Applications requiring chemical corrosion resistance and high temperature resistance, including bonding various hard-to-stick substrates.

Advantages:
  • Exceptional Heat Resistance: Maintains strong adhesion and structural integrity even under continuous exposure to high temperatures.


  • Strong Initial Tack & Reliable Bonding: Offers instant stickiness and consistent performance on challenging surfaces.


  • Excellent Chemical Resistance: Resists oils, solvents, and other chemicals, providing durability in harsh or chemically exposed environments.


  • Good Tensile Strength & Tear Resistance: Withstands mechanical stress and tension during unwinding, splicing, and processing without breaking or deforming.


  • Electrical Insulation Properties: Serves as a reliable electrical insulator in electronic manufacturing and applications involving live components.

High-strength, Heat-resistant Pet Splicing Tape For Electrical Insulation 0
