Product Details:
|
| Backing Thickness: | 40um | Total Thickness: | 80um |
|---|---|---|---|
| Adhesion To Steel: | 18N/25mm | Adhesive: | Solvent Acrylic |

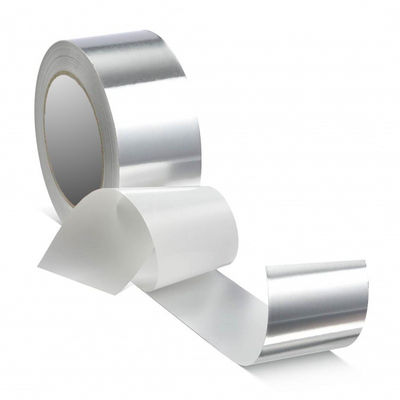

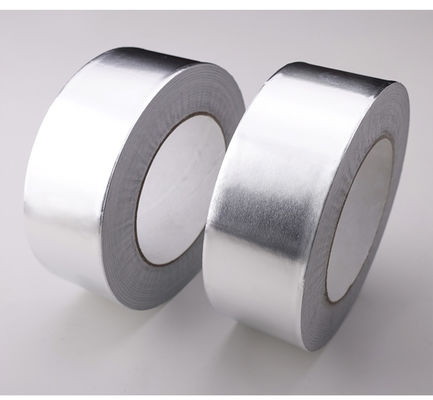

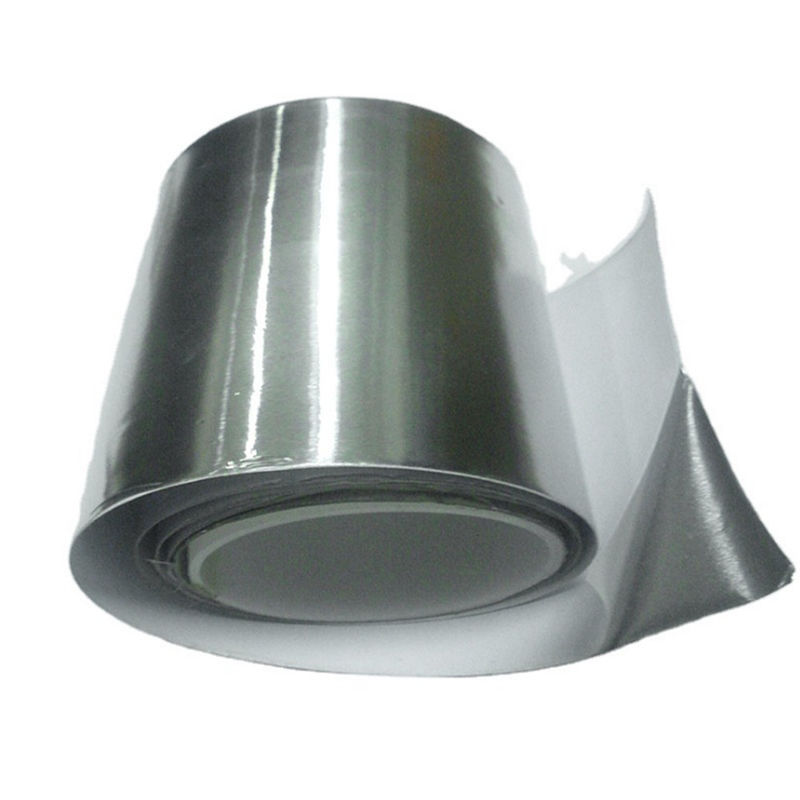

The strong adhesion and holding power aluminium foil tape is one of our normal products.
PRODUCT DESCRIPTION
A 40 micron (1.6 mil) high tensile strength aluminum foil backing, combined with a high performance solvent acrylic adhesive, protected by an easy-release silicone release paper.
FEATURES
• Aluminum backing provides excellent reflection of both heat and light.
• High quality adhesive with strong adhesion and holding power offers permanent sealing and bonding on Foil-Scrim-Kraft Facing joints and seams in HVAC ductwork application.
• Good aging resistance both indoors and outdoors.
• Low moisture vapor transmission rate offers excellent sealing and patching performance.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Backing Thickness | 40 Micron | 1.6 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 80 Micron | 3.2 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 18 N/25mm | 65 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tack Rolling Ball | 20 cm | 8.0 In. | PSTC-6 / ASTM D 3121 |
| Tensile Strength | 55 N/25mm | 12.5 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | %. | 3.0 | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ~ +120 °C | -22 ~ +248 °F | ------------ |
| Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Log Roll: 1200mm x 45 / 50m Jumbo Roll: 1200mm x 1200m /1350m
STORAGE & SHELF LIFE: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
SURFACE PREPARATION: It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
PRODUCT USE: The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
