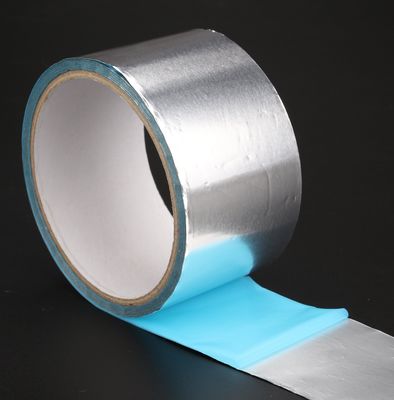

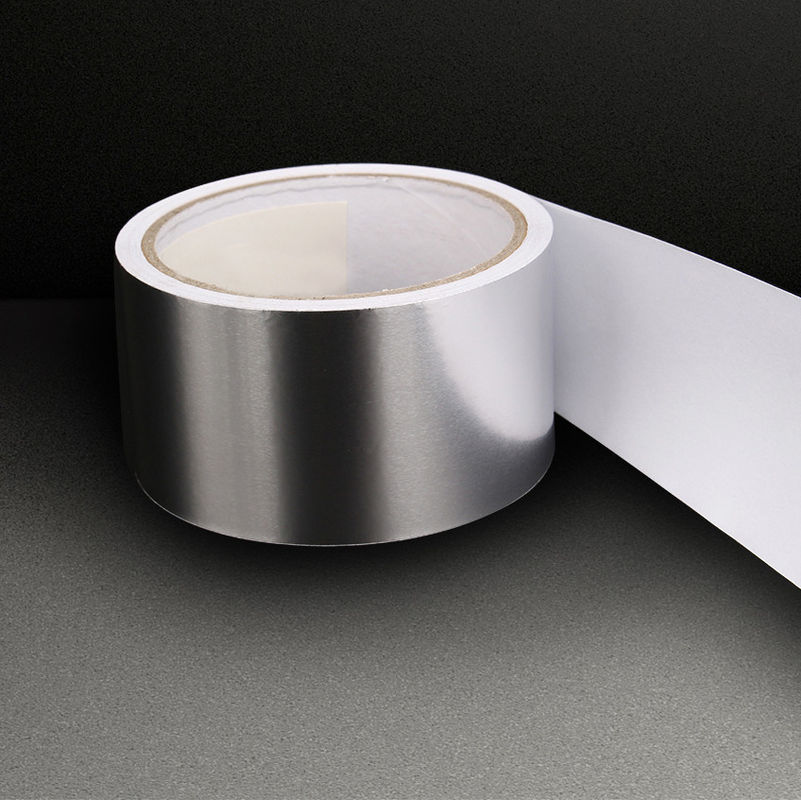

Self Wound Polyester Sticky Aluminum Tape 55um Without Liner

MOQ: 10,000squre meter
Price: by quote

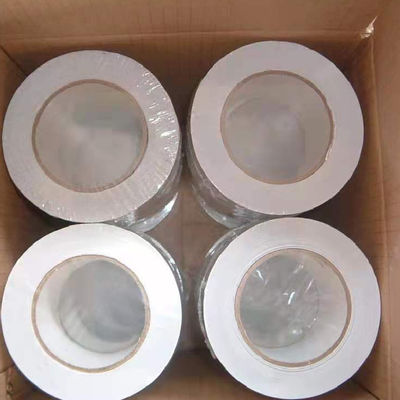

Standard Packaging: Export carton case and pallet
Delivery Period: 30 working days
Supply Capacity: 50,000m2 per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Model Number
PTF2325WL
Adhesive Type:
Solvent Acrylic Adhesive
Backing Thickness:
55um
Tensile Strength:
12 N/25mm
Service Temperature:
-30 +100 C
Total Thickness:
95 Um
Elongation:
20%
Highlight:

Polyester sticky aluminum tape

,

Self Wound sticky aluminum tape

,

55um self adhesive aluminium foil

Product Description

PRODUCT DESCRIPTION

A releasing agent treated polyester-foil backing, combined with high performance solvent acrylic adhesive.



FEATURES

• PET Foil Tape Without Liner makes easy application.

• PET Foil backing provides excellent reflection of both heat and light.

• High quality adhesive with strong adhesion and holding power offers permanent sealing and bonding.

• Good aging resistance both indoors and outdoors.

• Low moisture vapor transmission rate offers excellent sealing and patching performance.



TYPICAL PHYSICAL PROPERTIES

PROPERTIES METRIC TEST METHOD
Backing Thickness 55 Micron PSTC-133 / ASTM D 3652
Total Thickness 95 Micron PSTC-133 / ASTM D 3652
Adhesion to Steel 12 N/25mm PSTC-101 / ASTM D 3330
Tack Rolling Ball 32# JIS Z0237
Tensile Strength 75 N/25mm PSTC-131 / ASTM D 3759
Elongation 20.0 % PSTC-131 / ASTM D 3759
Service Temperature -30 ~ +100 °C ------------
Applying Temperature +10 ~ 40 °C ------------



TYPICAL APPLICATIONS: Excellent for fixing copper tube of Refrigerator. Joining and sealing Polyester-foil laminated insulation pipe's joints and seams. General purpose holding, patching, sealing and masking applications – indoors and outdoors.



PRODUCT FORM & SIZE AVAILABLE

ROLL WIDTH: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")

ROLL LENGTH: 50M / 100M / 150M / 200M / 250M / 300M



IMPORTANT NOTE

1. The data above are typical values only, and should not be used for specifications purpose.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.

STORAGE & SHELF LIFE: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
