Product Details:
|
| Backing Thickness: | 25um | Service Temperature: | -20 +80 C |
|---|---|---|---|
| ROLL LENGTH:: | 50M / 45M | ROLL WIDTH:: | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4") |
| Total Thickness: | 60um | Adhesive Type: | Synthetic Rubber-resin Ahesive |
| High Light: | Utility Grade Aluminum Foil Adhesive Tape,Aluminum Foil Adhesive Tape 25um,25um adhesive aluminium foil |
||

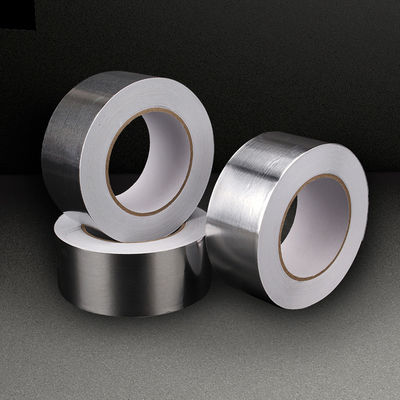

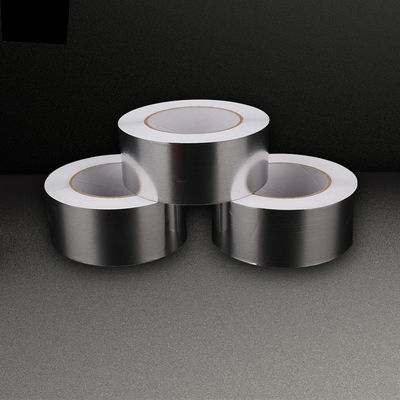

Utility Grade Aluminum Foil Tape Synthetic Rubber-Resin Silicone Release Paper Excellent Vapor Barrier
PRODUCT DESCRIPTION
A nominal 25 micron (1.0 mil) high tensile strength aluminum foil backing, combined with a high performance synthetic rubber-resin adhesive, protected by an easy-release silicone release paper.
FEATURES
• Aluminum backing provides excellent reflection of both heat and light.
• High quality adhesive with strong adhesion and holding power offers permanent sealing and bonding on Foil-Scrim-Kraft Facing joints and seams in HVAC ductwork application.
• Good aging resistance both indoors and outdoors.
• Low moisture vapor transmission rate offers excellent sealing and patching performance.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Backing Thickness | 25 Micron | 1.0 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 60 Micron | 2.4 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 18 N/25mm | 65 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tensile Strength | 40 N/25mm | 9.1 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | 3.0 % | 3.0 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -20 ~ +80 °C | -4 ~ +176 °F | ------------ |
| Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
ROLL WIDTH: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")
ROLL LENGTH: 1200mm x 45/50m
Jumbo roll: 1200mm x 1200m/1350m
IMPORTANT NOTE
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.
STORAGE & SHELF LIFE: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
