Heat Resistance Aluminium Foil Adhesive Tape

Heat Resistance Aluminium Foil Adhesive Tape
Heat Resistance Aluminium Foil Adhesive Tape Heat Resistance Aluminium Foil Adhesive Tape

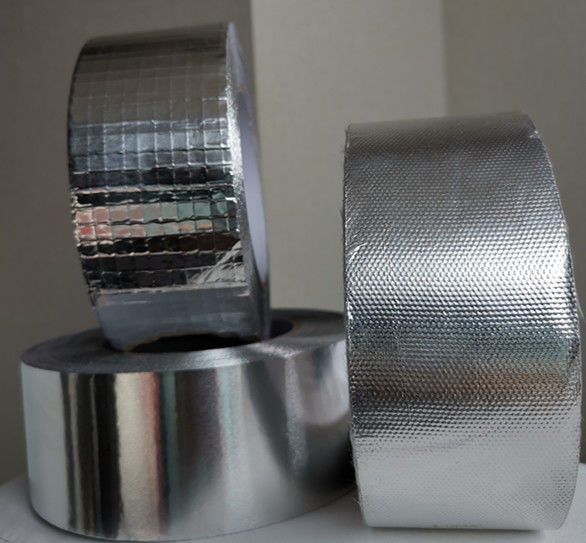

Large Image :  Heat Resistance Aluminium Foil Adhesive Tape

Product Details:
Place of Origin: China
Model Number: AG1825R
Payment & Shipping Terms:
Minimum Order Quantity: 10,000squre meter
Price: by quote
Packaging Details: Export carton case and pallet
Delivery Time: 30 working days
Supply Ability: 50,000m2 per month

Heat Resistance Aluminium Foil Adhesive Tape

Description
Backing Material: Al Foil Laminated Glass Cloth Adhesive Type: High Performance Flame Retardant Solvent Acrylic Adhesive
Service Temperature Range: -30 ~ +120 °C Backing Thickness: 150 Micron
Total Thickness: 180um Fire Rating: Class O
Cut Roll Width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Highlight:

Heat Resistance aluminium foil adhesive tape

,

150 Micron aluminium foil adhesive tape

,

180um self adhesive aluminium foil tape

PRODUCT DESCRIPTION

Aluminum-Glass Cloth backing (18u Foil / FR Glue / 8x8 Mesh Glass Cloth), combined with a high performance flame retardant solvent acrylic adhesive, protected by an easy-release silicone release paper.



FEATURES

• Aluminum-Glass Cloth backing provides excellent reflection of both heat and light.

• High quality adhesive with super strong adhesion and holding power offers reliable and durable Aluminum-Glass Cloth Facing joints and seams sealing in industrial pipe thermal insulation application,

• Low moisture vapor transmission rate makes AG1825R an excellent vapor barrier.

• Service Temperature range from -30 ~ +120 °C (-22~ +248 °F)



TYPICAL PHYSICAL PROPERTIES

PROPERTIES METRIC TEST METHOD
Backing Thickness 150 ±10% Micron PSTC-133
Total Thickness 180 ±10% Micron PSTC-133
Adhesive weight g/m2 60±5 g/m2 Scale
Adhesion to Steel ≥20 N/25mm PSTC-101
Ball Tack(Steel ball #) ≥23 # JIS Z0237
Service Temperature -30 ~ +120 °C ------------
Fire Rating Less 25 / 50 UL 723 / ASTM E84
Fire Rating Class O BS476 Pt 6 & 7



TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.



PRODUCT FORM & SIZE AVAILABLE

Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Roll width:1000mm,1200mm

Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
