Product Details:
|
| Adhesive Type: | Water-based Acrylic Adhesive | Backing Thickness: | 50 Micron |
|---|---|---|---|
| Adhesion To Steel: | 10 N/25mm | Service Temperature: | -20 +100 C |
| ROLL LENGTH: | 50M / 100M / 150M / 200M / 250M / 300M | Releasing Paper: | Craft Releasing Paper |
| Tape Finish: | Matt Finish | ||
| High Light: | Matt Adhesive Aluminum Foil Tape,Adhesive Aluminum Foil Tape 50 Micron,2.0 Mil aluminium foil rubber tape |
||

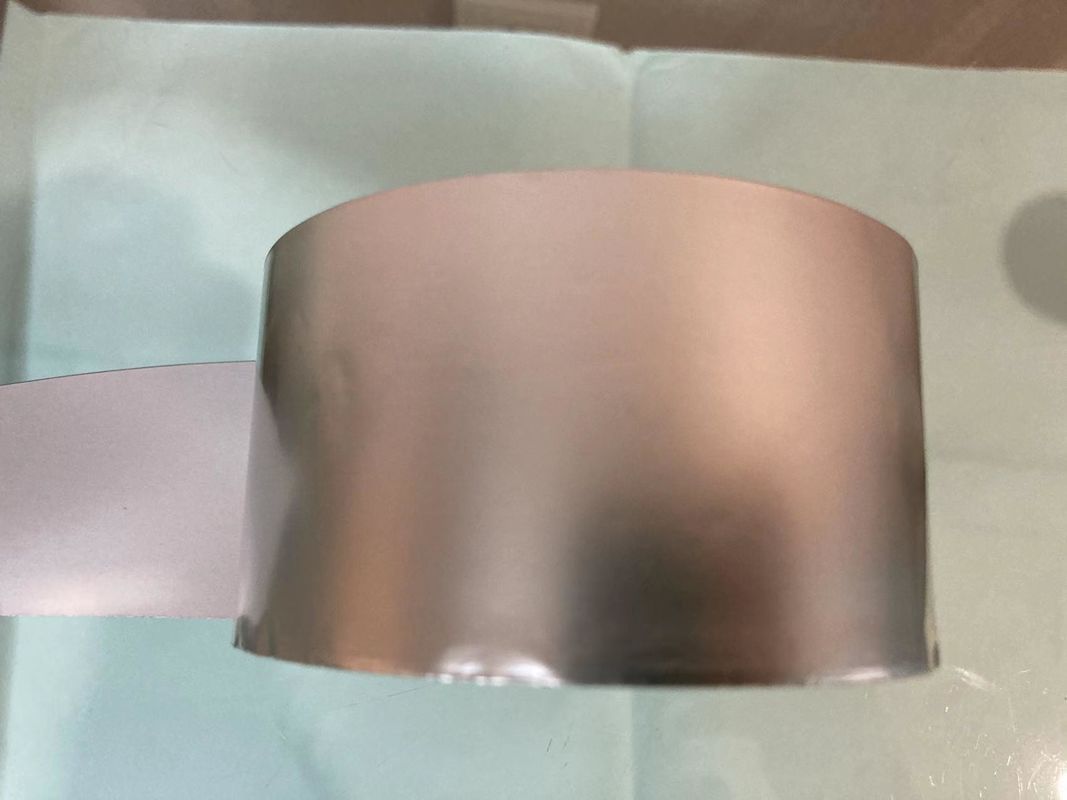

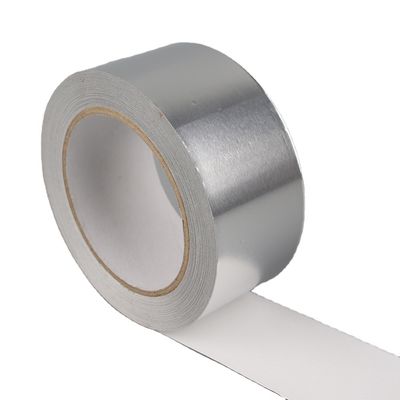

Matt Aluminum Foil Tape
PRODUCT DESCRIPTION
A nominal 50 micron (2.0 mil) silicone release coated matt aluminum foil backing, combined with water-based acrylic adhesive, protected by an easy-release silicone release Kraft paper.
FEATURES
• Aluminum backing provides excellent reflection of both heat and light.
• High quality adhesive with strong adhesion and holding power offers permanent sealing and bonding on Foil-Scrim-Kraft Facing joints and seams in HVAC duct work application.
• Good aging resistance both indoors and outdoors.
• Low moisture vapor transmission rate offers excellent sealing and patching performance.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | TEST METHOD |
| Backing Thickness | 50 Micron | PSTC-133 / ASTM D 3652 |
| Total Thickness | 90 Micron | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 10 N/25mm | PSTC-101 / ASTM D 3330 |
| Tack Rolling Ball | 32# | JIS Z0237 |
| Tensile Strength | 75 N/25mm | PSTC-131 / ASTM D 3759 |
| Elongation | 3.5 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -20 ~ +100 °C | ------------ |
| Applying Temperature | +10 ~ 40 °C | ------------ |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. General purpose holding, patching, sealing and masking applications – indoors and outdoors.
PRODUCT FORM & SIZE AVAILABLE
ROLL WIDTH: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")
ROLL LENGTH: 50M / 100M / 150M / 200M / 250M / 300M
IMPORTANT NOTE
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.
STORAGE & SHELF LIFE: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
