Product Details:
|
| Adhesive Type: | High Performance Solvent Acrylic Adhesive | Backing Thickness Backing Thickness: | 50 Microns |
|---|---|---|---|
| Service Temperature: | -30 +120 C | Releasing Paper: | White Releasing Paper |
| Total Thickness: | 90 Um | ||
| High Light: | Aluminum acrylic adhesive foil tape,Black Lacquered acrylic adhesive foil tape,50 Microns aluminium tape rubber |
||
PRODUCT DESCRIPTION

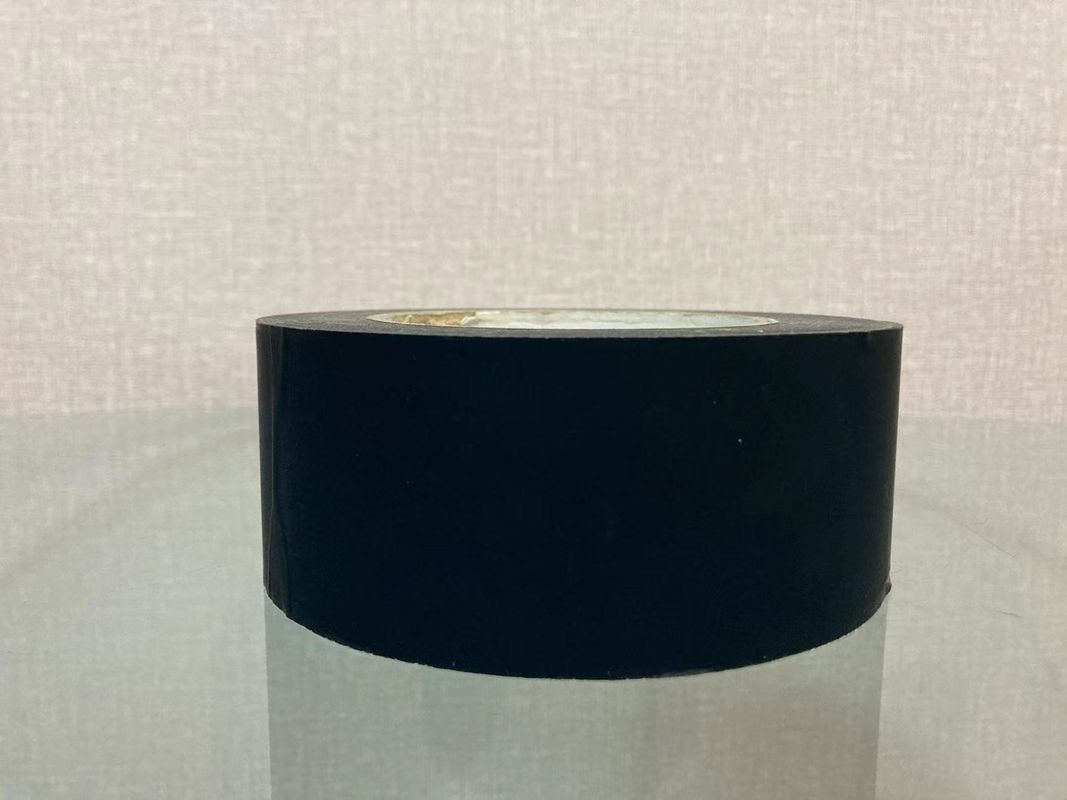

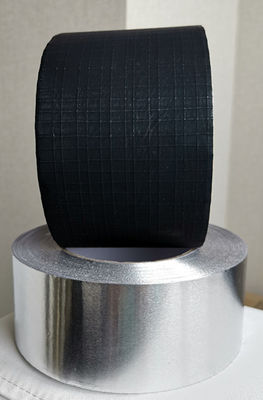

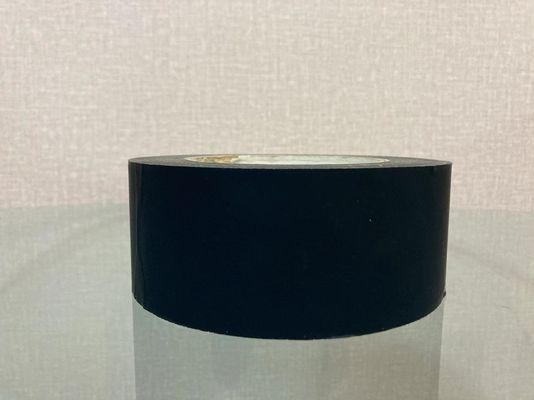

Black lacquered 50 micron (2.0 mil) aluminum foil, combined with a high performance solvent acrylic adhesive, protected by an easy-release silicone release paper.
FEATURES
• Black lacquered aluminum foil, match the Black FSK Faced Ductwork and Pipe Insulation.
• Good aging resistance both indoors and outdoors.
• Low moisture vapor transmission rate offers excellent sealing and patching performance.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | UNIT | PROPERTIES | TEST METHOD |
| Black Coating | Microns | 5 | PSTC-133 / ASTM D 3652 |
| Backing Thickness | Microns | 50 | PSTC-133 / ASTM D 3652 |
| Total Thickness | Microns | 90 | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | N/25mm | 18 | PSTC-101 / ASTM D 3330 |
| Tack Rolling Ball | Ball # | 23 | JIS Z0237 |
| Tensile Strength | N/25mm | 75 | PSTC-131 / ASTM D 3759 |
| Elongation | % | 3.0 | PSTC-131 / ASTM D 3759 |
| Service Temperature | °C | -30 ~ +120 | ------------ |
| Applying Temperature | °C | +10 ~ 40 | ------------ |
Above results are typical value.
TYPICAL APPLICATIONS: HVAC industry for joining and sealing white lacquered Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board / pipe insulation’s joints and seams. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")
Log Roll: 1200mm x 45 / 50m Jumbo Roll: 1200mm x 1000m
IMPORTANT NOTE
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.
STORAGE & SHELF LIFE: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
SURFACE PREPARATION: It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
