Product Details:
|
Adhesive Type: | High Performance Modified Acrylic Adhesive | Backing Thickness: | 50 Micron |
---|---|---|---|
Working Temperature: | -20 ~ 120C | ROLL LENGTH:: | 50M / 100M / 150M / 200M / 250M / 300M |
Backing Finish: | Matt Finish | Total Thickness: | 95um |
Highlight: | Matt Aluminum Foil Adhesive Tape,50 Micron Aluminum Foil Adhesive Tape,2.0mil adhesive tin foil |

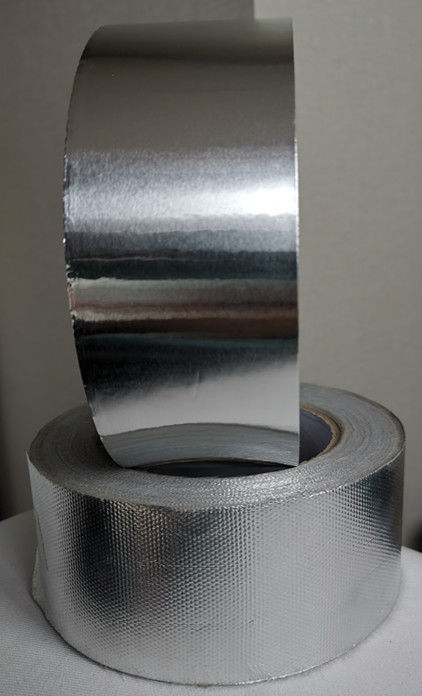

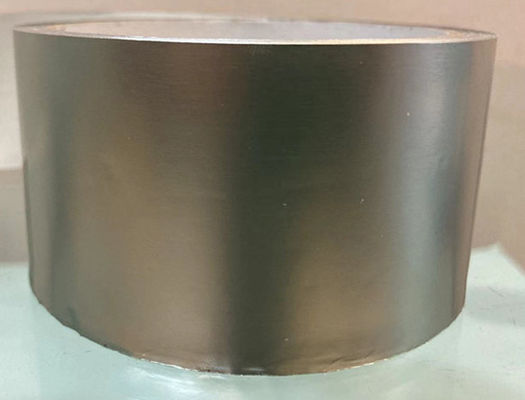

Matt Aluminum Foil Tape Without Liner
PRODUCT DESCRIPTION
silicone release coated 50 micron (2.0 mil) matt aluminum foil backing, combined with a high performance modified acrylic adhesive
FEATURES
• Aluminum Foil Tape Without Liner makes easy application.
• Aluminum backing provides excellent reflection of both heat and light.
• High quality adhesive with strong adhesion and holding power offers permanent sealing and bonding on Foil-Scrim-Kraft Facing joints and seams in HVAC ductwork application.
• Good aging resistance both indoors and outdoors.
• Low moisture vapor transmission rate offers excellent sealing and patching performance.
TYPICAL PHYSICAL PROPERTIES
PROPERTIES | METRIC | TEST METHOD |
Backing Thickness | 50 Micron | PSTC-133 / ASTM D 3652 |
Total Thickness | 95Micron | PSTC-133 / ASTM D 3652 |
Adhesion to Steel | 18N/25mm | PSTC-101 / ASTM D 3330 |
Adhesion to Backing | 6.5N/25mm | PSTC-101 / ASTM D 3330 |
Tack Rolling Ball | 32# | JIS Z0237 |
Tensile Strength | 75 N/25mm | PSTC-131 / ASTM D 3759 |
Elongation | 3.5 % | PSTC-131 / ASTM D 3759 |
Working Temperature | -20 ~ 120°C | ------------ |
TYPICAL APPLICATIONS:
HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. General purpose holding, patching, sealing and masking applications – indoors and outdoors.
PRODUCT FORM & SIZE AVAILABLE:
ROLL WIDTH: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")
ROLL LENGTH: 50M / 100M / 150M / 200M / 250M / 300M
IMPORTANT NOTE:
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.
STORAGE & SHELF LIFE:
12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
PRODUCT USE:
It is essential that the user evaluate the product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on products between +10 ~ +40°C (+50 ~ +105 °F).
