Product Details:
|
| Brown Coating: | 3 Microns | Total Thickness: | 90 Microns |
|---|---|---|---|
| Tensile Strength: | 75 N/25mm | Adhesive Type: | Solvent Acrylic Adhesive |
| Backing Material: | Al Foil | Backing Thickness: | 50um (other Thickness On Order) |
| High Light: | Brown Lacquered Aluminum Foil Adhesive Tape,Aluminum Foil Adhesive Tape 3 Microns,3 Microns sticky aluminium foil |
||

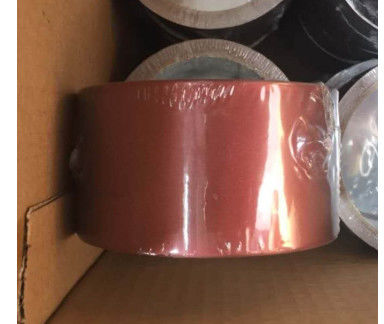

Brown Lacquered Aluminum Foil Tape Match Duct Color
PRODUCT DESCRIPTION
Brown lacquered 50 micron (2 mil) aluminum foil, combined with a high performance solvent acrylic adhesive, protected by an easy-release silicone release paper.
FEATURES
• Black lacquered aluminum foil, match the Brown FSK Faced Ductwork and Pipe Insulation.
• Good aging resistance both indoors and outdoors.
• Low moisture vapor transmission rate offers excellent sealing and patching performance.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Brown Coating | 3 Microns | 0.12 Mil | PSTC-133 / ASTM D 3652 |
| Backing Thickness | 50 Microns | 2.0 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 90 Microns | 3.6 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 15 N/25mm | 54 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tack Rolling Ball | 5 cm | 2.0 In. | PSTC-6 / ASTM D 3121 |
| Tensile Strength | 75 N/25mm | 17.0 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | %. | 3.0 | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ~ +120 °C | -22 ~ +248 °F | ------------ |
| Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing white lacquered Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board / pipe insulation’s joints and seams. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")
Log Roll: 1200mm x 45 / 50m Jumbo Roll: 1200mm x 1000m / 1200m / 1350m
IMPORTANT NOTE
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.
STORAGE & SHELF LIFE: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
SURFACE PREPARATION: It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
