Polyimide Film Tape With Silicone Adhesive For Electrical Insulation

Price: based on size and quantity
Standard Packaging: cartons and pallets
Delivery Period: about 20 days
Payment Method: T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
UNTEX
Document
UN_TEX - 251 PI silicone ad...pe.pdf
Backing Material:
Polyimide Film
Adhesive:
Silicone Adhesive
Color:
Amber
Thickness:
0.025~0.20mm
Peel Strength:
2.6 N/10mm
Tensile Strength:
45~74 N/10mm
Elongation:
50%
Temp. Range:
-73~300℃
Highlight:

polyimide film tape for electrical insulation

,

silicone adhesive polyimide tape

,

high temperature insulation tape

Product Description
Polyimide Film Tape With Silicone Adhesive For Electrical Insulation
Polyimide Tape is a high-temperature electrical insulation tape made from polyimide film coated with heat-resistant silicone adhesive. It combines thermal stability, electrical insulation, chemical resistance, and dimensional stability.
The tape is available in different thicknesses from 0.025 mm to 0.20 mm, making it suitable for applications that require thin, heat-resistant insulation or masking protection. It is commonly used in PCB manufacturing, electrical insulation, battery insulation, wire wrapping, transformer and motor insulation, and high-temperature industrial processing.
Technical Specifications
Backing Material Polyimide Film
Adhesive Silicone Adhesive
Thickness 0.025~0.20mm
Key Advantages
  • High Temperature Resistance: Polyimide film provides good thermal stability, while the silicone adhesive is designed for high-temperature applications. The actual temperature performance depends on the selected tape grade and adhesive system.
  • Electrical Insulation: The polyimide film provides electrical insulation for wires, coils, circuit boards, batteries, and other electrical components. It can be used where thin and heat-resistant insulation is required.
  • Chemical Resistance: Polyimide tape has good resistance to many chemicals and can maintain its physical properties during various manufacturing and processing operations.
Applications
  • PCB and Electronics Manufacturing: Polyimide tape is commonly used for PCB masking, soldering protection, component protection, and high-temperature masking during electronics manufacturing.
  • Electrical and Battery Insulation: It can be used for wire wrapping, coil insulation, transformer insulation, motor insulation, battery insulation, and electrical component protection.
  • High-Temperature Industrial Processing: The tape is suitable for high-temperature masking, surface protection, temporary fixing, and insulation in industrial manufacturing processes.
Frequently Asked Questions
What thicknesses are available?
The standard thickness range listed for this product is 0.025 mm to 0.20 mm. Different thicknesses can be selected according to insulation, masking, and processing requirements.
Can Polyimide Tape be used for electrical insulation?
Yes. It is suitable for various electrical insulation applications, including wire wrapping, coil insulation, transformer insulation, motor insulation, and battery insulation.

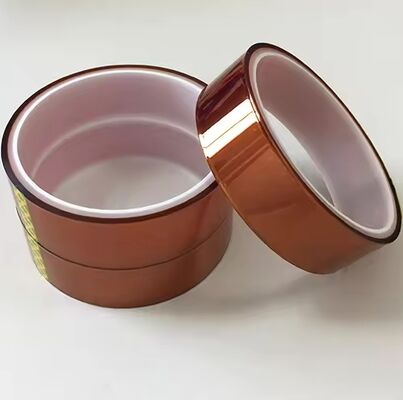

Polyimide Film Tape with Silicone Adhesive for electrical insulation applications
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

L
Luca
Italy Mar 5.2026
Helpful (1)
They offer a wide variety of tapes, so you can get everything you need in one place.
A
Anil
India Jan 23.2026
Helpful (1)
Thanks to UN.Tex for recommending the models I needed. They're diligent and responsible.
F
F*z
Saudi Arabia Oct 23.2025
Helpful (1)
UN.Tex's tape is really good quality, so you can totally trust both their products and their supply.
