Aluminum Foil Fiberglass Cloth For Thermal Insulation Double Sided Insulation Material
  • name
  • name

Aluminum Foil Fiberglass Cloth For Thermal Insulation Double Sided Insulation Material

Price: based on size and quantity
Delivery Period: about 20 days
Payment Method: T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
UNTEX
Model Number
DSA7
Construction:
Foil /Fiberglass Cloth /Foil
Foil Thickness:
7 μm
Fiberglass Cloth:
100G
Basic Weight:
135gsm
Tensile Strength - MD:
500 N/25mm
Tensile Strength - XD:
350 N/25mm
Burst Strength:
70 N/cm2
Permeance:
5.75 Ng/N·s
Emissivity:
0.03
Application:
Used For Glass Wool, Rock Wool, Roof, Wall, Floor, Pipe, And HVAC Insulation.
Highlight:

aluminum foil fiberglass cloth

,

thermal insulation material

,

double sided heat resistant tape

Product Description
Aluminum Foil Fiberglass Cloth For Thermal Insulation Double Sided Insulation Material
Double Sided Aluminum Foil Fiberglass Cloth is a reinforced thermal insulation material made from 7 μm aluminum foil, 100G fiberglass cloth, and 7 μm aluminum foil. The fiberglass layer provides mechanical strength, while the aluminum foil surfaces offer heat reflection and resistance to water vapor.
Product Overview
With a typical basic weight of 135 gsm, this double-sided aluminum foil fiberglass cloth combines tensile strength, tear resistance, and radiant heat reflection. It is suitable for insulation systems used in buildings, HVAC systems, pipes, and industrial equipment.
Key Specifications
Construction 7 μm Al Foil / 100G Fiberglass Cloth / 7 μm Al Foil
Basic Weight 135 gsm
Key Features
  • High radiant heat reflection: The aluminum foil surfaces can reflect up to 97% of radiant heat under applicable test conditions.
  • Reinforced structure: The fiberglass cloth provides higher tensile strength and tear resistance than aluminum foil alone.
  • Double-sided aluminum foil: Aluminum foil on both sides provides heat-reflective and vapor-resistant surfaces.
  • Thermal insulation facing: Suitable for use as a facing material for glass wool and rock wool insulation.
  • Lightweight construction: The 135 gsm structure provides reinforcement without adding excessive weight.
Applications
  • Glass wool and rock wool insulation
  • Roof and attic insulation
  • Wall and floor insulation
  • HVAC duct and equipment insulation
  • Pipe insulation and wrapping
  • Thermal insulation systems for industrial equipment
Frequently Asked Questions
Where is Double Sided Aluminum Foil Fiberglass Cloth used?
It is mainly used for glass wool, rock wool, roof, attic, wall, floor, pipe, HVAC, and industrial insulation.
What are the advantages of aluminum foil fiberglass cloth?
It combines the mechanical strength of fiberglass cloth with the heat-reflective and vapor-resistant properties of aluminum foil. This makes it suitable for insulation facing and wrapping applications.

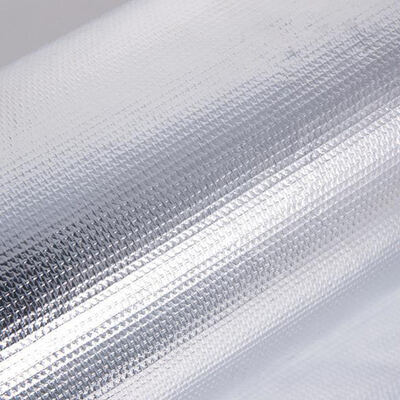

Double Sided Aluminum Foil Fiberglass Cloth thermal insulation material
