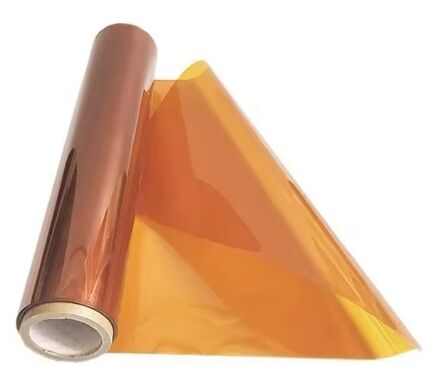

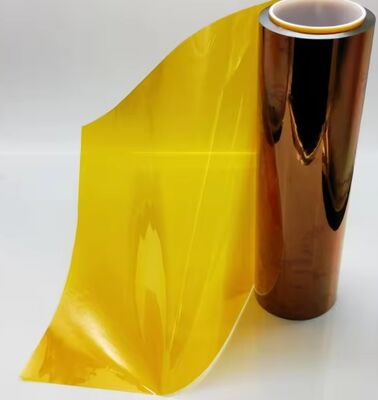

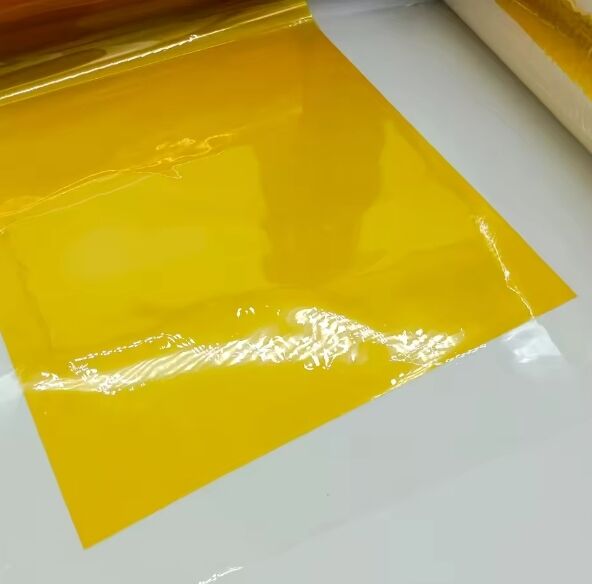

6051 Polyimide Film 25~200um Thickness With UL Certified

6051 Polyimide Film 25~200um Thickness With UL Certified

MOQ: 1 roll
Price: basing as thickness and quantity
Standard Packaging: carton and pallet
Delivery Period: about 15 days
Payment Method: T/T
Supply Capacity: 1000000sq.m per month
Detail Information
Place of Origin
China
Certification
UL
Model Number
6051
Thickness:
25~200um
Tensile Strength (longitudinal):
≥135/115 MPa
Relative Permittivity:
~3.5
Surface Resistivity:
≥1.0×10^13Ω
Volumetric Resistivity:
≥1.0×10^10Ωm
Thermal Shrinkage:
≤ 1.0% (150℃) / ≤ 3.0% (400℃)
Temp. Index:
≥180℃
Application:
Insulating Materials For Class H Motors And Other Uses
Highlight:

6051 polyimide film UL certified

,

polyimide film adhesive tape 200um

,

polyimide film 25um thickness

Product Description
6051 Polyimide Film 25~200um Thickness With UL Certified
This double-side corona-treated polyimide film is manufactured via casting process and available in thicknesses ranging from 25 to 200μm. It delivers exceptional heat and radiation resistance, high dielectric strength, and robust mechanical properties. The dual-side corona treatment enhances adhesion performance and prevents delamination.
Technical Specifications
Thickness Range 25μm-200μm
Temperature Index ≥180℃
Key Advantages
  • High Performance: Excellent heat, voltage, and stress resistance for long-term reliability
  • Strong Adhesion: Double-side corona treatment ensures superior bonding and easy processing
  • Quality Assured: UL certified, defect-free, moisture resistant, and 2-year shelf life
Industrial Applications
  • Motor Insulation: Ideal for traction and Class H motors, ensuring reliable performance in extreme conditions
  • New Energy Insulation: Used in wind turbines and transformers, resistant to high voltage and harsh environments
  • Industrial Insulation: Protects critical electrical components in heavy-duty industrial settings
6051 Polyimide Film product illustration showing material structure and applications
