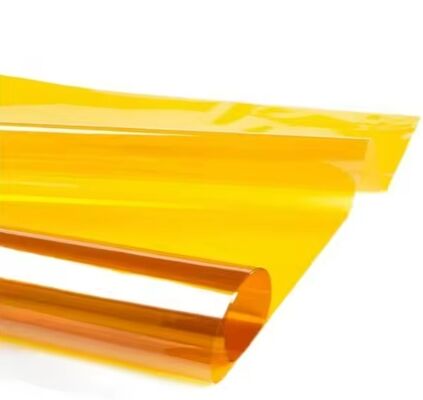

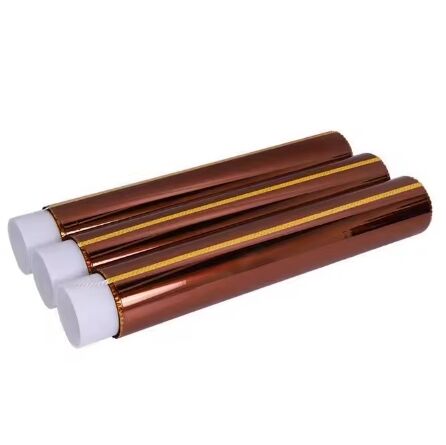

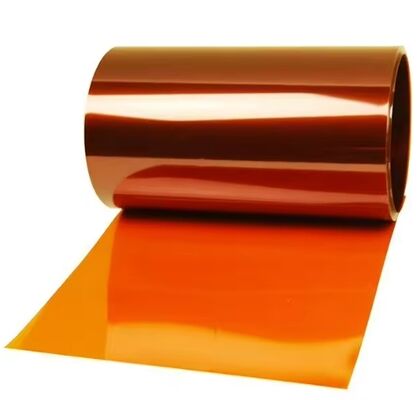

6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified

MOQ: 1 roll
Price: basing as thickness and quantity
Standard Packaging: carton and pallet
Delivery Period: about 15 days
Payment Method: T/T
Supply Capacity: 1000000sq.m per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Certification
UL
Model Number
6052
Thickness:
12.5~50um
Tensile Strength:
≥150MPa
Relative Permittivity:
~3.5
Surface Resistivity:
≥1.0×10^14Ω
Volumetric Resistivity:
≥1.0×10^10Ωm
Thermal Shrinkage:
≤ 3.5%
Temp. Index:
≥180℃
Application:
Used As A Cover Film For Flexible Circuits And For High-temperature Electrical Insulation
Highlight:

BOPI film UL-certified

,

Polyimide film adhesive tape 12.5μm

,

6052 model polyimide film 50μm

Product Description
6052 Model BOPI Film 12.5μm-50μm Thickness With UL-certified
The Biaxially Oriented Polyimide (BOPI) film is produced via advanced casting and biaxial stretching, available in 12.5-50μm thicknesses for reliable high performance. Precision corona treatment ensures strong adhesion for coating, lamination, and metallization. UL-certified, it offers a trusted solution for demanding industrial applications.
Technical Specifications
Thickness Range 12.5μm-50μm
Temperature Index ≥180℃
Key Advantages
  • Broad-Temperature Stability: Performs consistently from -240°C to +260°C
  • High Strength & Toughness: Offers excellent tensile strength, rigidity, tear resistance, and dimensional stability
  • Premium Insulation & Safety: Delivers superior electrical insulation with inherent flame retardancy
  • Chemical Resistance: Withstands most organic solvents, oils, and greases
Applications
  • Flexible Circuit Substrates: Ideal as base material and cover film for flexible printed circuits (FPC)
  • High-Temperature Insulation: Critical insulating component for specialty wires, motors, and transformers
  • Flexible Functional Components: Preferred dielectric and protective layer for flexible heaters and sensors
6052 Model BOPI Film product illustration showing film structure and applications
