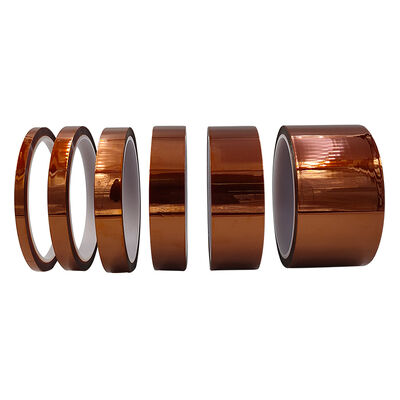

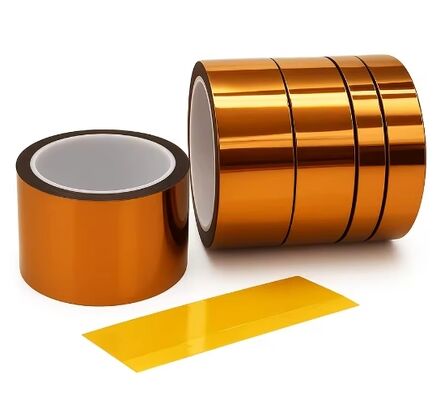

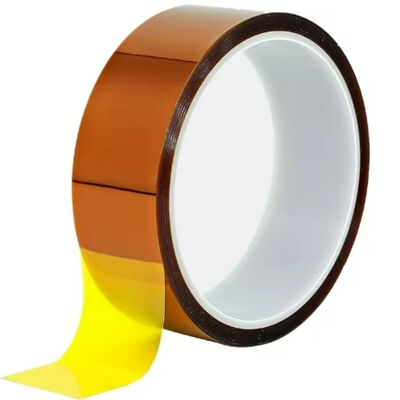

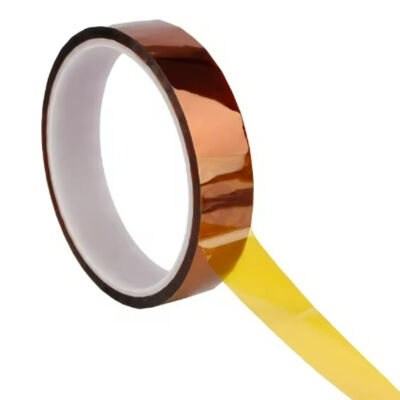

Polyimide Adhesive Tape High Temperature Polyimide 30um~100um Thickness

MOQ: 500m2
Price: based on sizes and quantity
Standard Packaging: Export carton case
Delivery Period: 35 working days
Payment Method: L/C,T/T
Supply Capacity: 50,000m2 per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Certification
RoHS
Model Number
K2321
Features:
Polyimide Film Adhesive Tape
Product Category:
Polyimide Film Adhesive Tape
Halogen Free:
Yes
Thickness:
30um~100um
Standard Roll Length:
33 Meters
Base Material Thickness Options:
7.5 µm, 12.5 µm, 25 µm, And 50 µm
BDV:
≥2.0KV
Working Temp.:
180℃ (long Term)
Temperature Range:
-73℃ To 260℃
Tensile Strength:
≥25N/10mm
Adhesion:
≥1.8N/10mm
Application:
High Temperature Applications
Highlight:

high temperature polyimide adhesive tape

,

polyimide film tape 30um thickness

,

100um thick polyimide adhesive tape

Product Description
Polyimide Adhesive Tape High Temperature Polyimide 30um~100um Thickness
This polyimide adhesive tape provides excellent high-temperature resistance, reliable insulation, and strong adhesion for demanding applications like PCB protection. Customizable thicknesses are available from 30um to 100um.
Technical Specifications
Adhesive Type Pressure Sensitive Silicone Adhesive
Temperature Range -73℃ to 260℃
Adhesion Strength ≥1.8N/10mm
Key Advantages
  • Exceptional Heat & Insulation Performance
    Excellent high-temperature resistance and electrical insulation for reliable operation in demanding conditions.
  • Durable & Safe Protection
    High mechanical strength, strong chemical resistance, and inherent flame retardancy ensure long-lasting safety.
  • Strong Adhesion, All-Round Reliability
    Reliable pressure-sensitive adhesion with balanced properties, designed for challenging industrial environments.
Applications
  • High-Temperature Process Protection
    Used for masking and protection during processes such as SMT reflow soldering and high-temperature sandblasting or spraying.
  • Electrical Insulation & Fixation
    Suitable for insulating, bundling, and securing components like FPCs, batteries, coils, and various electronic parts.
  • Rugged Environmental Protection
    Provides surface protection against abrasion and chemical corrosion in demanding environments such as automotive and aerospace applications.
Polyimide Adhesive Tape product illustration showing high-temperature resistant tape used in electronic applications
