Double-side Corona-treated Polyimide Film For Industrial Insulation

Double-side Corona-treated Polyimide Film For Industrial Insulation
Double-side Corona-treated Polyimide Film For Industrial Insulation Double-side Corona-treated Polyimide Film For Industrial Insulation Double-side Corona-treated Polyimide Film For Industrial Insulation

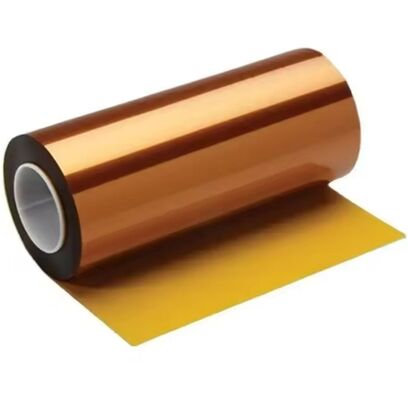

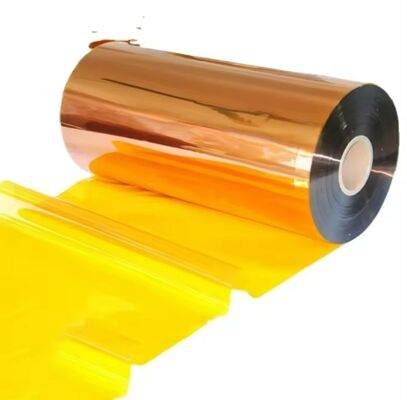

Large Image :  Double-side Corona-treated Polyimide Film For Industrial Insulation

Product Details:
Place of Origin: China
Certification: UL
Model Number: 6051
Payment & Shipping Terms:
Minimum Order Quantity: 1 roll
Price: basing as thickness and quantity
Packaging Details: carton and pallet
Delivery Time: about 15 days
Payment Terms: T/T
Supply Ability: 1000000sq.m per month
Contact Now

Double-side Corona-treated Polyimide Film For Industrial Insulation

Description
Thickness: 25~200um Tensile Strength (longitudinal): ≥135/115 MPa
Relative Permittivity: ~3.5 Surface Resistivity: ≥1.0×10^13Ω
Volumetric Resistivity: ≥1.0×10^10Ωm Thermal Shrinkage: ≤ 1.0% (150℃) / ≤ 3.0% (400℃)
Temp. Index: ≥180℃ Application: Insulating Materials For Class H Motors And Other Uses
Highlight:

Double-side Corona-treated Polyimide Film

,

High Temperature Resistance PI Film

,

Industrial Insulation Kapton Tape

Double-side Corona-treated Polyimide Film For Industrial Insulation
Product Description
This double-side corona-treated polyimide film (PI film) is manufactured via casting and available in thicknesses ranging from 25 to 200μm. It delivers exceptional heat and radiation resistance, high dielectric strength, and robust mechanical properties. The dual-side corona treatment significantly enhances adhesion capabilities and prevents delamination.
Technical Specifications
Parameter Value
Thickness Range 25μm-200μm
Temperature Index ≥180℃
Tensile Strength ≥135/115 MPa
Volumetric Resistivity ≥1.0×10¹⁰Ωm
Surface Resistivity ≥1.0×10¹³Ω
Relative Permittivity ~3.5
Thermal Shrinkage ≤ 1.0% (150℃) / ≤ 3.0% (400℃)
Key Advantages
  • High Performance: Withstands high temperature, high voltage, and mechanical stress for long-term reliability in demanding applications.
  • Strong Adhesion: Dual-side corona treatment ensures superior bonding performance for simplified manufacturing processes.
  • Quality Assured: Features defect-free surfaces, uniform roll winding, and full UL certification for consistent performance.
  • Proven Durability: Resists radiation, moisture, and impact with a 2-year shelf life for extended usability.
Industrial Applications
  • Motor Insulation: Ideal for traction and Class H motors, guaranteeing reliable performance in extreme operating conditions.
  • New Energy Insulation: Used in wind turbines and transformers, providing resistance to high voltage and harsh environmental conditions.
  • Industrial Insulation: Protects critical electrical equipment in heavy-duty industrial settings and manufacturing environments.
