Double-side Corona-treated Polyimide Film For Industrial Insulation

MOQ: 1 roll
Price: basing as thickness and quantity
Standard Packaging: carton and pallet
Delivery Period: about 15 days
Payment Method: T/T
Supply Capacity: 1000000sq.m per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Certification
UL
Model Number
6051
Thickness:
25~200um
Tensile Strength (longitudinal):
≥135/115 MPa
Relative Permittivity:
~3.5
Surface Resistivity:
≥1.0×10^13Ω
Volumetric Resistivity:
≥1.0×10^10Ωm
Thermal Shrinkage:
≤ 1.0% (150℃) / ≤ 3.0% (400℃)
Temp. Index:
≥180℃
Application:
Insulating Materials For Class H Motors And Other Uses
Highlight:

Double-side Corona-treated Polyimide Film

,

High Temperature Resistance PI Film

,

Industrial Insulation Kapton Tape

Product Description

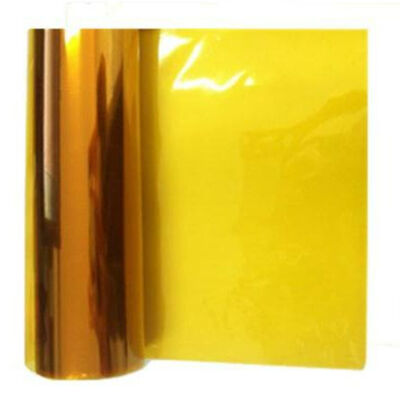

Double-side Corona-treated Polyimide Film For Industrial Insulation
Product Description
This double-side corona-treated polyimide film (PI film) is manufactured via casting and available in thicknesses ranging from 25 to 200μm. It delivers exceptional heat and radiation resistance, high dielectric strength, and robust mechanical properties. The dual-side corona treatment significantly enhances adhesion capabilities and prevents delamination.
Technical Specifications
Parameter Value
Thickness Range 25μm-200μm
Temperature Index ≥180℃
Tensile Strength ≥135/115 MPa
Volumetric Resistivity ≥1.0×10¹⁰Ωm
Surface Resistivity ≥1.0×10¹³Ω
Relative Permittivity ~3.5
Thermal Shrinkage ≤ 1.0% (150℃) / ≤ 3.0% (400℃)
Key Advantages
  • High Performance: Withstands high temperature, high voltage, and mechanical stress for long-term reliability in demanding applications.
  • Strong Adhesion: Dual-side corona treatment ensures superior bonding performance for simplified manufacturing processes.
  • Quality Assured: Features defect-free surfaces, uniform roll winding, and full UL certification for consistent performance.
  • Proven Durability: Resists radiation, moisture, and impact with a 2-year shelf life for extended usability.
Industrial Applications
  • Motor Insulation: Ideal for traction and Class H motors, guaranteeing reliable performance in extreme operating conditions.
  • New Energy Insulation: Used in wind turbines and transformers, providing resistance to high voltage and harsh environmental conditions.
  • Industrial Insulation: Protects critical electrical equipment in heavy-duty industrial settings and manufacturing environments.
Double-side Corona-treated Polyimide Film for industrial insulation applications
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

L
Luca
Italy Mar 5.2026
Helpful (1)
They offer a wide variety of tapes, so you can get everything you need in one place.
A
Anil
India Jan 23.2026
Helpful (1)
Thanks to UN.Tex for recommending the models I needed. They're diligent and responsible.
F
F*z
Saudi Arabia Oct 23.2025
Helpful (1)
UN.Tex's tape is really good quality, so you can totally trust both their products and their supply.
