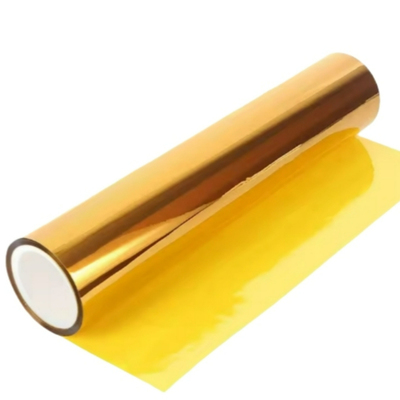

UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm

UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm
UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm
UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm

Large Image :  UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm

Product Details:
Place of Origin: China
Certification: UL
Model Number: 6052
Payment & Shipping Terms:
Minimum Order Quantity: 1 roll
Price: basing as thickness and quantity
Packaging Details: carton and pallet
Delivery Time: about 15 days
Payment Terms: T/T
Supply Ability: 1000000sq.m per month
Contact Now

UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm

Description
Thickness: 12.5~50um Tensile Strength(longitudinal): ≥150MPa
Tensile Strength(transverse): ≥150MPa Break Elongation: ≥40%
Surface Resistivity: ≥1.0×10^14Ω Volumetric Resistivity: ≥1.0×10^10Ωm
Density: 1420±20 Kg/m³ Dielectric Loss Tangent: ≤4.0×10^-3
Temp. Index: ≥180℃ Application: Used As A Cover Film For Flexible Circuits And For High-temperature Electrical Insulation


UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm 0



UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm 1


UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm 2


UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm 3


UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm 4


UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm 5


Click the text below the image to learn about our related varieties of PI films.

UL-certified Biaxially Oriented Polyimide Film (BOPI) 12.5–50μm 6

6051 polyimide film (PI film)




  • Softer and more pliable film
