Name: 20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation
Brand: UN.Tex (Dalian) Co.,Ltd
SKU: 6051
Price: 3.00 USD
Availability: InStock

20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation

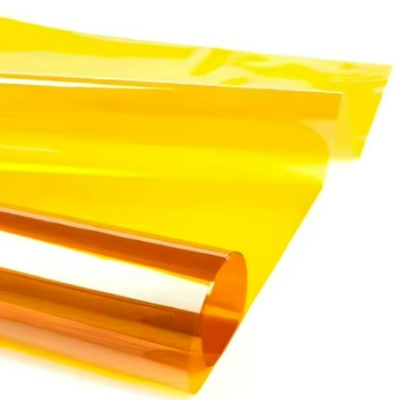

Large Image : 20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation

Product Details:

Place of Origin:	China
Certification:	UL
Model Number:	6051

Payment & Shipping Terms:

Minimum Order Quantity:	1 roll
Price:	basing as thickness and quantity
Packaging Details:	carton and pallet
Delivery Time:	about 15 days
Payment Terms:	T/T
Supply Ability:	1000000sq.m per month

Contact Now

20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation

Description

Thickness:	25~200um	Density:	1420±20 Kg/m³
Tensile Strength (longitudinal):	≥135MPa	Tensile Strength (transverse):	≥115MPa
Break Elongation:	≥35%	Surface Resistivity:	≥1.0×10^13Ω
Volumetric Resistivity:	≥1.0×10^10Ωm	Dielectric Loss Tangent:	≤4.0×10^-3
Temp. Index:	≥180℃	Application:	Insulating Materials For Class H Motors And Other Uses

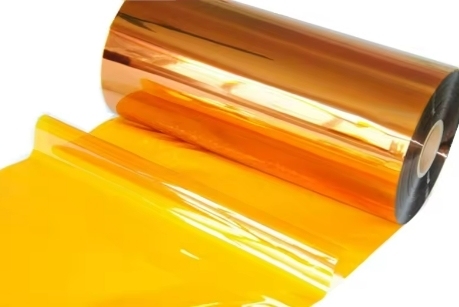

20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation 0

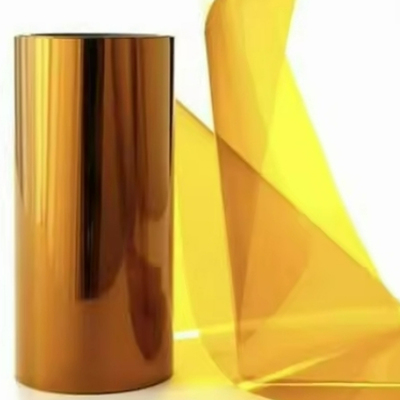

20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation 1

20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation 2

20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation 3

20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation 4

20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation 5

Click the text below the image to learn about our related varieties of PI films.

20~200um Thickness Polyimide Film With Dual-Side Corona Treated For Insulation 6

6052 Biaxially Oriented Polyimide Film (BOPI)

Manufactured using a biaxial stretching process.
Higher mechanical strength, dimensional stability, and fatigue resistance.

Tag:

25um Polyimide Film Adhesive Tape,

Polyimide Film Adhesive Tape H Grade,

Single Side Coated polyimide high temperature tape
