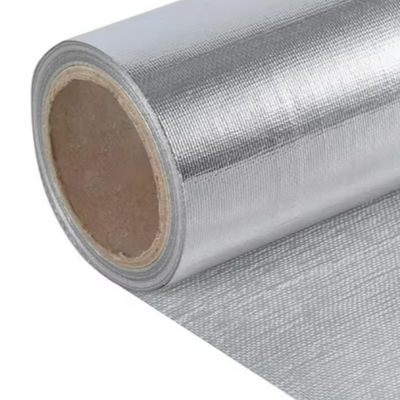

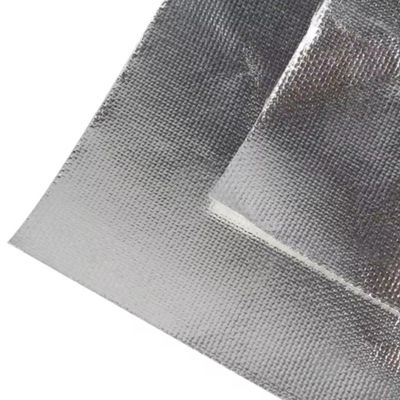

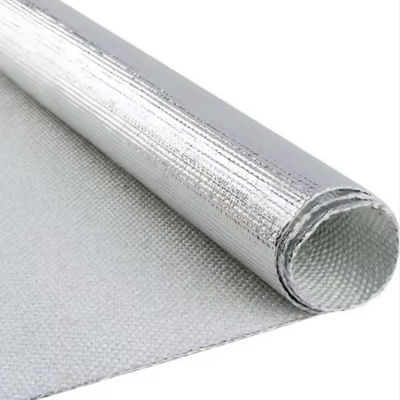

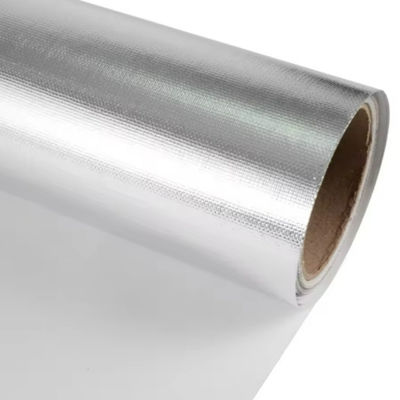

Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

MOQ:	6000 sqm
Price:	basing quantity
Standard Packaging:	pallet
Delivery Period:	about 30 working days
Payment Method:	T/T
Supply Capacity:	500000 sqm

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

AG-R701

Al Foil Thickness:

Basis Weight:

118 Gsm

Glass Cloth Mesh:

Tensile Strength - MD:

225 N/25mm

Tensile Strength - XD:

150 N/25mm

Burst Strength:

100 N/c㎡

Permeance(WVTR):

5.75 Ng/N.s

Dimensional Stability:

Less Than 0.5%

Emissivity:

Available Roll Width:

1.0m, 1.2m, 1.25m, 1.3m

Length:

Fire Rating:

Class O - Passed

Highlight:

10×9 Mesh Glass Cloth Foil-Glass Cloth Facing

7 um Al foil thickness Aluminum Foil Fiberglass Cloth

118 gsm Basis Weight Foil-Glass Cloth Facing

Product Description

Flame-retardant Foil-Glass Cloth Facing With 10×9 Mesh Glass Cloth

The Flame-retardant Foil-Glass Cloth Facing is a utility-grade composite facing material designed for insulation systems requiring high strength and flame retardancy. This product features a unique composite structure that laminates a thin aluminum foil to a high-strength fiberglass cloth using a flame-retardant adhesive. It not only possesses high tensile strength and exceptional tear resistance to withstand physical stress during installation and use but also acts as an effective vapor barrier, widely used as a protective outer layer for duct wrap, duct board, and pipe insulation.

Typical Physical Properties

Physical Properties	Value
Alum.Foil	7 um
Basis Weight	118 gsm
Permeance(WVTR)	5.75 ng/N.s
Tensile Strength - MD	225 N/25mm
Tensile Strength - XD	150 N/25mm
Burst Strength	100 N/c㎡
Dimensional Stability	less than 0.5%
Emissivity	0.03
Fire Rating	Class O - Passed
Glass Cloth Mesh	10x9

Advantages

Exceptional Mechanical Strength
The fiberglass cloth core provides high tensile and tear resistance, ensuring durability and reducing damage risk during installation and service.
Reliable Flame Retardancy
The flame-retardant adhesive and composite design effectively inhibit flame spread, enhancing the insulation system's fire safety.
Excellent Vapor Barrier Properties
The dense foil layer blocks moisture ingress, preventing condensation-induced performance loss and corrosion.

Applications

HVAC Systems: Primarily used as the outer facing for duct wrap and duct board, providing protection and acting as a vapor barrier.
Pipe Insulation: Used to wrap around various industrial and commercial pipe insulation materials (such as fiberglass or rock wool) serving as a protective and sealing layer.
Industrial & Building Insulation: Suitable for the final protective layer on insulation systems for building envelopes and industrial equipment where specific strength or flame retardancy requirements exist.

Tags:

Products

MOQ:	6000 sqm
Price:	basing quantity
Standard Packaging:	pallet
Delivery Period:	about 30 working days
Payment Method:	T/T
Supply Capacity:	500000 sqm

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

AG-R701

Al Foil Thickness:

7 Um

Basis Weight:

118 Gsm

Glass Cloth Mesh:

10x9

Tensile Strength - MD:

225 N/25mm

Tensile Strength - XD:

150 N/25mm

Burst Strength:

100 N/c㎡

Permeance(WVTR):

5.75 Ng/N.s

Dimensional Stability:

Less Than 0.5%

Emissivity:

0.03

Available Roll Width:

1.0m, 1.2m, 1.25m, 1.3m

Length:

50m

Fire Rating:

Class O - Passed

Minimum Order Quantity:

6000 sqm

Price:

basing quantity

Packaging Details:

pallet

Delivery Time:

about 30 working days

Payment Terms:

T/T

Supply Ability:

500000 sqm

Highlight

10×9 Mesh Glass Cloth Foil-Glass Cloth Facing

7 um Al foil thickness Aluminum Foil Fiberglass Cloth

118 gsm Basis Weight Foil-Glass Cloth Facing

Product Description

Flame-retardant Foil-Glass Cloth Facing With 10×9 Mesh Glass Cloth

Typical Physical Properties

Physical Properties	Value
Alum.Foil	7 um
Basis Weight	118 gsm
Permeance(WVTR)	5.75 ng/N.s
Tensile Strength - MD	225 N/25mm
Tensile Strength - XD	150 N/25mm
Burst Strength	100 N/c㎡
Dimensional Stability	less than 0.5%
Emissivity	0.03
Fire Rating	Class O - Passed
Glass Cloth Mesh	10x9

Advantages

Exceptional Mechanical Strength
The fiberglass cloth core provides high tensile and tear resistance, ensuring durability and reducing damage risk during installation and service.
Reliable Flame Retardancy
The flame-retardant adhesive and composite design effectively inhibit flame spread, enhancing the insulation system's fire safety.
Excellent Vapor Barrier Properties
The dense foil layer blocks moisture ingress, preventing condensation-induced performance loss and corrosion.

Applications

HVAC Systems: Primarily used as the outer facing for duct wrap and duct board, providing protection and acting as a vapor barrier.
Pipe Insulation: Used to wrap around various industrial and commercial pipe insulation materials (such as fiberglass or rock wool) serving as a protective and sealing layer.
Industrial & Building Insulation: Suitable for the final protective layer on insulation systems for building envelopes and industrial equipment where specific strength or flame retardancy requirements exist.
