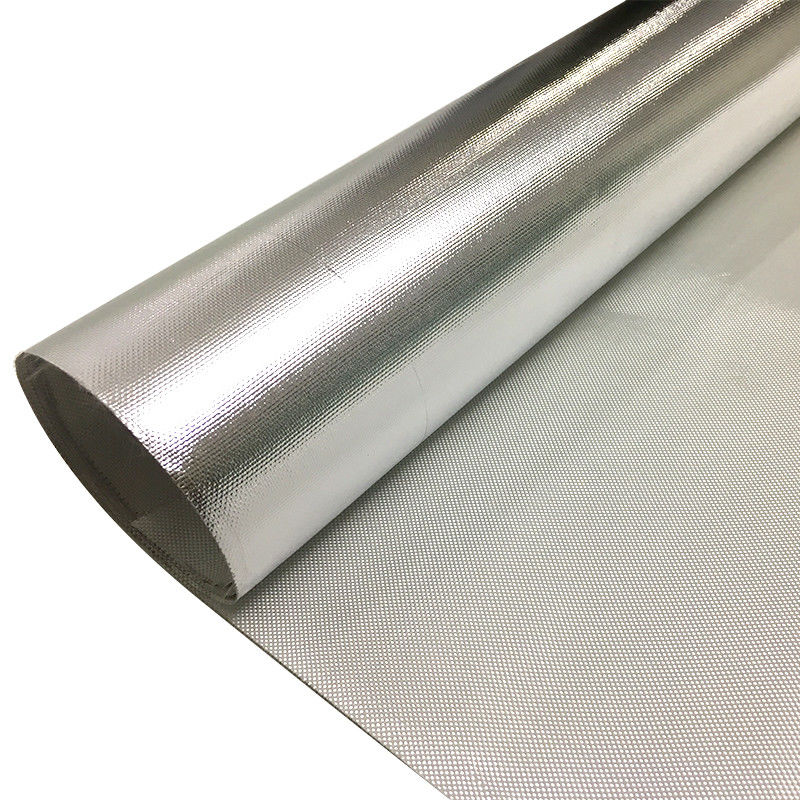

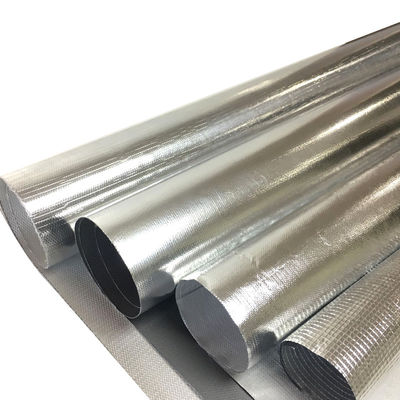

Heat Reflection Aluminum Foil Fiberglass Cloth Heat Insulation

MOQ:	6000m2
Price:	by quote
Standard Packaging:	Each roll packed by craft paper and then onto pallet
Delivery Period:	30 working days
Payment Method:	L/C, T/T
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

AG-R1801

Available Roll Width:

1.0m, 1.2m

Structure:

Al Foil + Glass Cloth

Al Foil Thickness:

Glass Cloth:

90g/m2

Highlight:

Heat Reflection Aluminum Foil Fiberglass Cloth

Aluminum Foil Fiberglass Cloth Heat Insulation

1.0m foil faced paper

Product Description

Foil-Glass Cloth Facing & Vapor Barrier for heat reflection and heat insulation

PRODUCT DESCRIPTION

A flame-retardant Foil-Glass Cloth Facing (18u foil and 8x8 mesh glass cloth, laminated with F/R glue). It enjoys good abrasive-resistance and high tensile strength, UL 723 & BS 476 Pt 6 & 7 Fire Rating approval. Excellent for HVAC thermal insulation and building thermal insulation. Very good for industrial and vessel engine room’s thermal insulation.

FACING COMPOSITION

Facing Composition	Description	Value (Metric)
Foil	Aluminum	18um
Adhesive	F/R Glue	10um
Glass Cloth	8x8 mesh/cm	90gsm

TYPICAL PHYSICAL PROPERTIES

Physical Properties	Value (Metric)	Test Method
Basis Weight	148±10% gsm	Scale
Permeance (WVTR)	1.15 ng/N.s	ASTM E96, Procedure A
Tensile Strength - MD	≥260 N/25mm	ASTM D828
Tensile Strength - XD	≥180 N/25mm	ASTM D828
Burst Strength	≥125 N/cm2	ASTM D774
Low Temperature Resistance	Remains Flexible No Delamination	ASTM D1790 4 hrs @-40 °F (- 40 °C)
High Temperature Resistance	Remains Flexible No Delamination	ASTM D1790 4 hrs @ +240 °F (+116 °C)
Dimensional Stability	Less than 0.5%	ASTM D1204 @ 150F (65C)
Emissivity	0.03	ASTM E408
Fire Rating	Less 25 / 50 - Passed	UL 723 / ASTM E84
Fire Rating	Class O - Passed	BS 476 Pt 6 & 7

Available Roll Width: 1.0m, 1.2m
