Foil-Scrim-Kraft Facing with 2-way scrim, 60gsm kraft paper backing, and 95gsm basis weight for insulation applications

MOQ: 10000 sq.m
Price: USD0.5~200.00 per roll
Standard Packaging: pallet
Delivery Period: about 30 working days
Payment Method: T/T,L/C
Supply Capacity: 50000 sq.m
Detail Information
Product Description
Detail Information
Place of Origin
China
Model Number
FSK-716B
Foil Thickness:
7 Um
Enhanced:
2-way Scrim
Backing Outer:
60gsm Kraft Paper
Basis Weight:
95gsm
Permeance(WVTP):
5.75 Ng/N.s
Tensile Strength-MD:
130 N/25mm
Tensile Strength-XD:
70 N/25mm
Burst Strength:
30 N/c㎡
Reinforcing-MD:
12.5mm Spacing
Reinforcing-XD:
12.5mm Spacing
Dimensional Stability:
Less Than 0.5%
Emissivity:
0.03
Highlight:

Foil-Scrim-Kraft insulation facing

,

2-way scrim insulation material

,

Foil faced kraft paper insulation

Product Description
Foil-Scrim-Kraft Facing With 2-way Scrim For Insulation Applications

Commercial grade Foil-Scrim-Kraft (FSK) Facing features a reinforced two-way scrim embedded between reflective foil and durable 60gsm Kraft paper backing. This composite structure provides a robust, tear-resistant barrier that effectively retards vapor transmission while offering superior thermal reflectivity.

Facing Composition
Component Description
Aluminum Foil 7 micron
2-way Fiberglass Scrim 12.5×12.5mm
Adhesive Polyethylene
Kraft 60gsm
Typical Physical Properties
Property Value
Basis Weight (g/㎡) 95
WVTR (ng/N.s) 5.75
Tensile Strength - MD (N/25mm) 130
Tensile Strength - XD (N/25mm) 70
Burst Strength (N/c㎡) 30
Key Advantages
  • Exceptional Strength & Durability
    Reinforced with a sturdy scrim to resist tearing, puncturing, and stretching.
  • Advanced Thermal & Moisture Protection
    Features low-emissivity foil surface that reflects radiant heat, enhancing insulation performance. Serves as an effective vapor barrier to prevent moisture damage.
  • Simple & Quick Installation
    Kraft paper backing ensures strong adhesion to various surfaces. Flexible and easy to cut, shape, and handle on-site for efficient application.
Primary Applications
  • Facing & Vapor Barrier: Ideal for use with fiberglass, rock wool, and foam duct wrap insulation
  • Vapor Retarder: Suitable for applications requiring effective vapor control
  • Radiant Barrier: Excellent solution for reflecting radiant heat due to its low-emissivity surface
Product Specifications
  • Available Roll Width: 1.0m, 1.2m, 1.25m, 1.30m, 1.35m
  • Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%
Storage Note: Products should be stored at room temperature, kept away from moisture and heat sources.

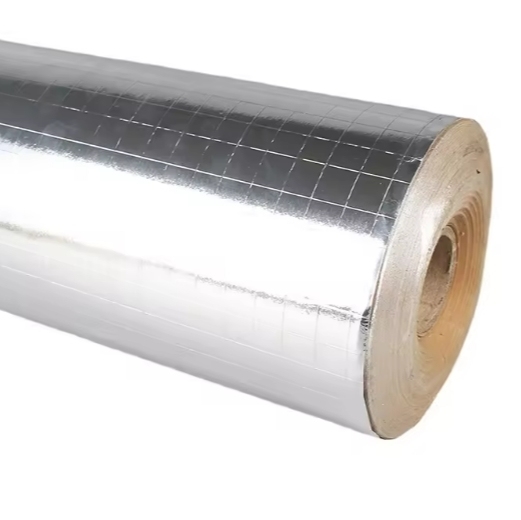

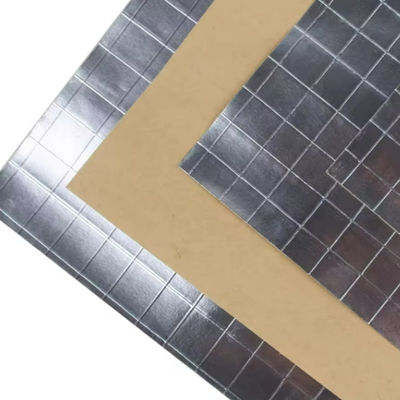

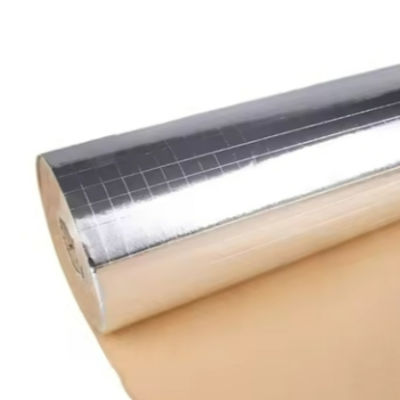

Foil-Scrim-Kraft Facing product sample
