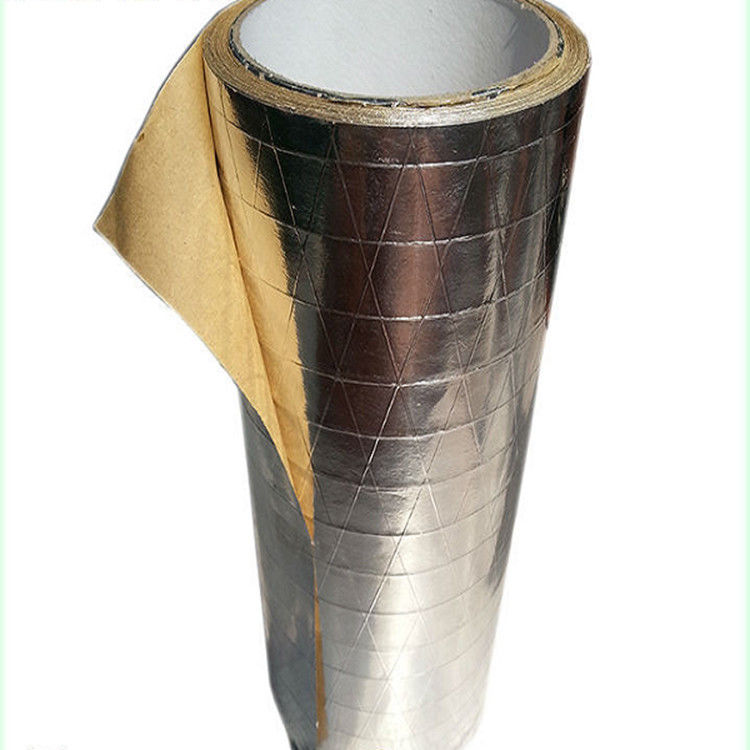

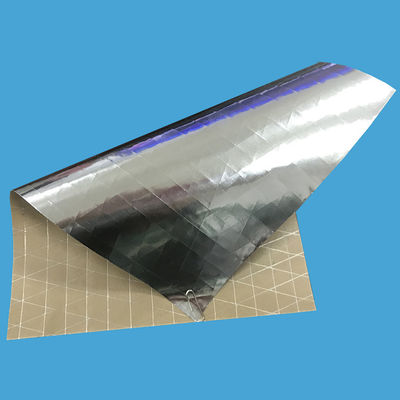

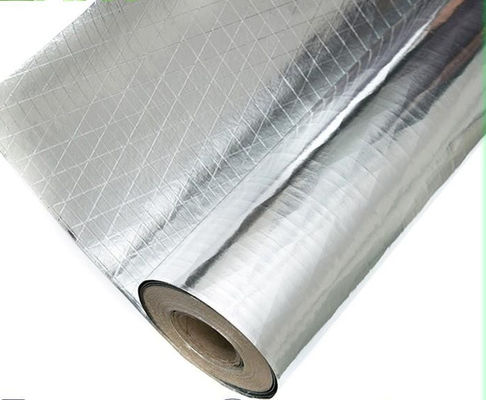

1.2m 1.0m Foil Faced Kraft Paper Vapour Barrier Shed Insulation

MOQ: 6000m2
Price: by quote
Standard Packaging: Each roll packed by craft paper and then onto pallet
Delivery Period: 30 working days
Payment Method: L/C, T/T
Supply Capacity: 50,000m2 per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Model Number
FSKE-7161B
Available Roll Width:
1.0m, 1.2m, 1.25m, 1.30m, 1.35m
Structure:
Al Foil+ Scrim + Craft Paper
Total Weight:
112g/m2
Scrim:
12.5mm X 12.5mm
Al Foil:
7um
Highlight:

1.0m Foil Faced Kraft Paper

,

1.2m Foil Faced Kraft Paper

,

1.0m vapour barrier shed insulation

Product Description

Kraft paper al foil faced scrim grid aluminium foil laminated kraft paper



Product Description

A high grade Foil-Scrim-Kraft Facing with 2-way scrim and 60gsm Kraft, mainly used as a facing & vapor barrier for glasswool / rockwool / mineral wool / foam duct wrap insulation, also suitable for other insulation applications where a general use vapor retarder is needed. It is also a

good choice for radiant barrier applications because of its low emissivity.



Facing Composition

Facing Composition Description Value (Metric)
Foil Aluminum  7 micron
Reinforcing - MD Fiberglass  12.5mm spacing
Reinforcing - XD Fiberglass  12.5mm spacing
Adhesive Polyethylene ------
Kraft Natural 60gsm



Typical Physical Properties

Physical Properties Value (Metric) Test Method
Basis Weight 112±10% gsm Scale
Permeance (WVTR) 1.15 ng/N.s ASTM E96, Procedure A
Tensile Strength - MD ≥140 N/25mm ASTM D828
Tensile Strength - XD ≥750 N/25mm ASTM D828
Burst Strength ≥33 N/cm2 ASTM D774
Low Temperature Resistance

Remains Flexible

No Delamination

ASTM D1790

4 hrs @-40 °F (- 40 °C)
High Temperature Resistance

Remains Flexible

No Delamination

ASTM D1790

4 hrs @ +240 °F (+116 °C)
Dimensional Stability Less than 0.5% ASTM D1204 @ 150F (65C)
Emissivity 0.03 ASTM E408



Available Roll Width: 1.0m, 1.2m, 1.25m, 1.30m, 1.35m



Remarks

1. The data above are typical values only, and should not be used for specifications purpose.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: +0.5m/-0m, Jumbo Roll ±0.5%.

3. The products should be stored at room temperature, kept away from wet and heat source.

4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.

Tags:

Heat Sealing foil faced paper,

1.25m foil backed paper insulation,

1.0m Foil Faced Kraft Paper
