Commercial-Grade Foil-Scrim-Kraft Facing with 95 gsm Basis Weight, 7 um Foil Thickness, and 60gsm Kraft Paper Backing

MOQ:	10000 sq.m
Price:	USD0.5~200.00 per roll
Standard Packaging:	pallet
Delivery Period:	about 30 working days
Payment Method:	T/T,L/C
Supply Capacity:	50000 sq.m

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

FSK-716A

Foil Thickness:

Enhanced:

3-way Scrim

Backing Outer:

60gsm Kraft Paper

Basis Weight:

95gsm

Permeance(WVTP):

5.75 Ng/N.s

Tensile Strength-MD:

130 N/25mm

Tensile Strength-XD:

60 N/25mm

Burst Strength:

30 N/c㎡

Reinforcing-MD:

8/100mm

Reinforcing-XD:

12/100mm

Dimensional Stability:

Less Than 0.5%

Emissivity:

Highlight:

3-way scrim FSK foil facing

commercial-grade foil-scrim-kraft paper

95 gsm FSK facing

Product Description

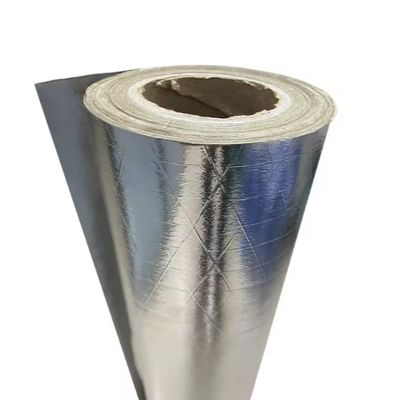

3-Way Scrim Commercial-Grade Foil-Scrim-Kraft (FSK) Facing With 95 gsm Basis Weight

Product Description

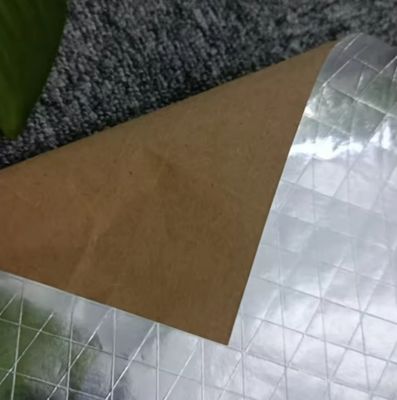

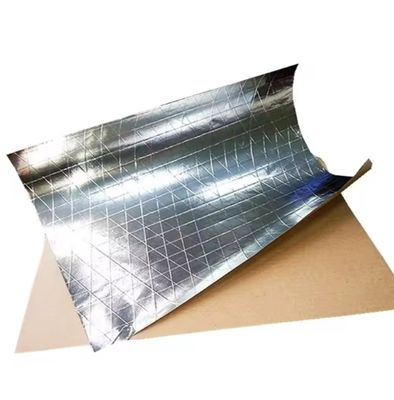

The 3-Way Scrim Commercial-Grade Foil-Scrim-Kraft (FSK) Facing features a reinforced 3-way scrim with 60gsm kraft paper backing. This premium composite material combines a low-emissivity foil surface with reinforced scrim for exceptional durability and tear resistance. The design enhances mechanical strength while ensuring long-term stability in demanding construction environments. The foil layer provides superior radiant heat reflection for improved thermal insulation, while the reinforced scrim delivers excellent tensile strength and dimensional stability under stress or temperature variations. The kraft paper backing offers optimal surface adhesion for secure installation.

Facing Composition

Component	Specification
Aluminum Foil	7 micron
3-way Fiberglass Scrim	8 × 12 /100 mm
Adhesive	Polyethylene
Kraft	60gsm

Typical Physical Properties

Property	Value
Basis Weight (g/㎡)	95
WVTR (ng/N.s)	5.75
Tensile Strength - MD (N/25mm)	130
Tensile Strength - XD (N/25mm)	60
Burst Strength (N/c㎡)	30

Advantages

Robust & Durable

Reinforced scrim resists tearing, punctures, and stretching

Thermal & Moisture Protection

Low-emissivity foil surface reflects radiant heat, boosting insulation efficiency
Acts as a reliable vapor barrier to protect against moisture

Easy Installation

Kraft paper backing provides strong adhesion to various substrates
Flexible and easy to cut and handle on-site

Applications

Facing & Vapour Barrier
- For insulation materials like glass wool, rock wool, and mineral wool
- For foam duct wrap insulation
Vapour Retarder
- Suitable for a wide range of other insulation applications where a vapour retarder is needed
Radiant Barrier
- An excellent choice for radiant barrier applications because of its low emissivity

Important Notes

Available Roll Width: 1.0m, 1.2m, 1.25m, 1.30m, 1.35m
Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%
Store at room temperature, away from moisture and heat sources
