Amber Polyimide Film Adhesive Tape with 33m Standard Roll Length and ≥2.0KV BDV for High Temperature Applications

MOQ: 500m2
Price: based on sizes and quantity
Standard Packaging: Export carton case
Delivery Period: 35 working days
Payment Method: L/C,T/T
Supply Capacity: 50,000m2 per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Certification
RoHS
Model Number
K2321
Features:
Polyimide Film Adhesive Tape
Product Category:
Polyimide Film Adhesive Tape
Halogen Free:
Yes
Thickness:
30um~100um
Standard Roll Length:
33 Meters
Base Material Thickness Options:
7.5 µm, 12.5 µm, 25 µm, And 50 µm
BDV:
≥2.0KV
Working Temp.:
180℃ (long Term)
Temperature Range:
-73℃ To 260℃
Tensile Strength:
≥25N/10mm
Adhesion:
≥1.8N/10mm
Application:
High Temperature Applications
Highlight:

33m Standard Roll Length Polyimide Film Adhesive Tape

,

≥2.0KV BDV Kapton Tape

,

12.5 µm Base Material PI Tape

Product Description
Amber Polyimide Film Silicon Adhesive Tape For High Temperature Applications
Product Description

The Amber Polyimide Film Silicon Adhesive Tape is a durable and reliable solution for demanding industrial applications, offering exceptional high-temperature resistance with a long-term working temperature of 180°C. It features a high tensile strength (≥25N/10mm) and strong adhesion (≥1.8N/10mm), ensuring a secure and long-lasting bond for uses such as electrical insulation on PCBs. The tape provides an excellent balance of electrical, chemical, and physical properties, and is available in customizable thicknesses from 30um to 100um.

Key Advantages
  • Excellent High-Temperature Resistance: Maintains stability and integrity without degrading under prolonged heat exposure.
  • Superb Electrical Insulation: Provides high dielectric strength, ideal for insulating and protecting electronic components and PCBs.
  • Strong Chemical Resistance: Demonstrates excellent resistance to most solvents, oils, and chemicals.
  • High Mechanical Strength: Features high tensile and tear resistance for durable physical protection.
  • Inherent Flame Retardancy: Polyimide base material enhances safety in various applications.
  • Reliable Adhesion: Pressure-sensitive adhesive ensures strong, consistent bonding to various substrates.
Technical Specifications
RoHS Compliant Yes
Product Category Polyimide Film Adhesive Tape
Adhesive Type Pressure Sensitive Silicone Adhesive
Temperature Range -73℃ to 260℃
Adhesion Strength ≥1.8N/10mm
Primary Applications
  • Electronics Manufacturing: PCB solder masking, FPC fixation, motor and transformer coil insulation.
  • Semiconductor Processing: High-precision temporary masking in etching, plating, and ion implantation.
  • Industrial & Aerospace: High-temperature paint masking, motor insulation, wire harness protection.
Product Details
  • Origin: Manufactured in China
  • Certifications: RoHS, Halogen-Free, International Quality Standards
  • Packaging: 33-meter standard rolls in protective plastic wrapping
Pricing & Supply
  • Pricing: Based on sizes and quantity (cost-effective)
  • MOQ: 500 m²
  • Supply Capacity: 50,000 m² per month
  • Payment Terms: L/C, T/T
  • Delivery Time: 35 working days
Packaging & Shipping

Each roll is individually sealed in protective plastic wrapping to preserve integrity. For transit, rolls are securely packed in reinforced cardboard boxes and shipped via reliable carriers.

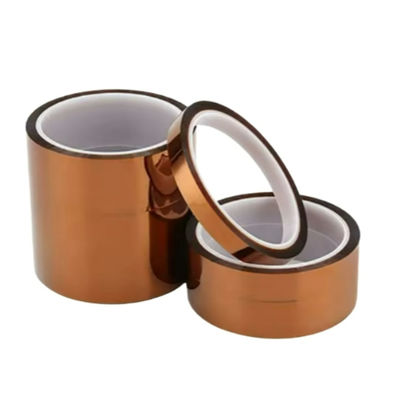

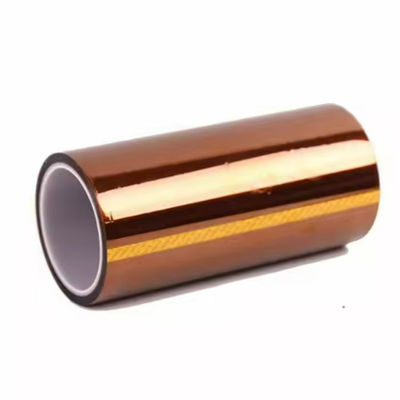

Amber Polyimide Film Silicon Adhesive Tape product photo

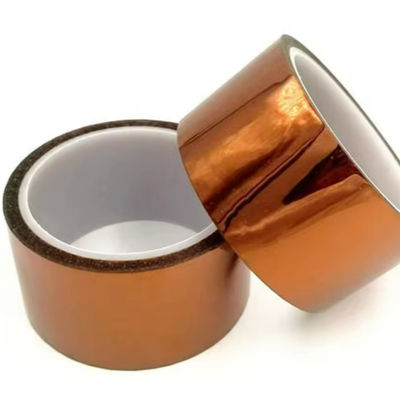

Close-up view of Polyimide Film Adhesive Tape
