UL-Certified BOPI Film with Extreme Temperature Stability, Outstanding Mechanical Properties, and Superior Electrical Insulation

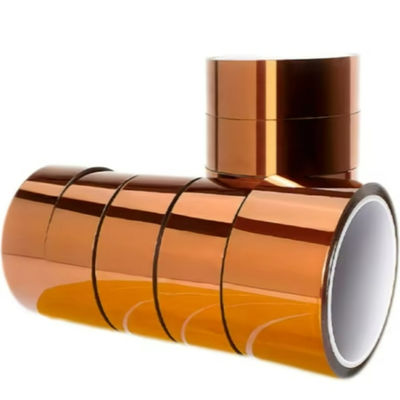

Large Image : UL-Certified BOPI Film with Extreme Temperature Stability, Outstanding Mechanical Properties, and Superior Electrical Insulation

Product Details:

Place of Origin:	China
Certification:	UL
Model Number:	6052

Payment & Shipping Terms:

Minimum Order Quantity:	1 roll
Price:	basing as thickness and quantity
Packaging Details:	carton and pallet
Delivery Time:	about 15 days
Payment Terms:	T/T
Supply Ability:	1000000sq.m per month

Contact Now

UL-Certified BOPI Film with Extreme Temperature Stability, Outstanding Mechanical Properties, and Superior Electrical Insulation

Description

Material:	Biaxially Oriented Polyimide Film (BOPI Film)	Thickness:	7.5~50um
Tensile Strength(longitudinal):	≥150MPa	Tensile Strength(transverse):	≥150MPa
Break Elongation（longitudinal）:	≥40%	Break Elongation(transverse):	≥40%
Power Frequency Electrical Strength (average Value):	≥220	Power Frequency Electrical Strength (Individual Value):	≥150
Surface Resistivity:	≥1.0×10 14Ω	Volumetric Resistivity:	≥1.0×10 10Ωm
Highlight:	Extreme Temperature Stability BOPI Film , Outstanding Mechanical Properties Polyimide Film , Superior Electrical Insulation Polyimide Film Adhesive Tape

UL-Certified, Dual-Side Corona Treated BOPI Film For Extreme Temperatures

The high-performance, industrial-grade biaxially oriented polyimide (BOPI) film is engineered for demanding applications, delivering exceptional thermal stability, mechanical strength, and reliable electrical insulation. Through specialized biaxial orientation, the film achieves superior dimensional integrity and durability, with both surfaces receiving precisely controlled corona treatment for excellent adhesion.

Product Specifications

Attribute	Value
Material	Biaxially Oriented Polyimide Film (BOPI Film)
Thickness	7.5~50μm
Tensile strength (longitudinal)	≥150MPa
Tensile strength (transverse)	≥150MPa
Break elongation (longitudinal)	≥40%
Break elongation (transverse)	≥40%
Power frequency electrical strength (average value)	≥220
Power frequency electrical strength (individual value)	≥150
Surface resistivity	≥1.0×10¹⁴Ω
Volumetric resistivity	≥1.0×10¹⁰Ωm

Key Properties

Extreme Temperature Stability: Exceptional resistance to high and low temperatures with high glass transition temperature (Tg).
Outstanding Mechanical Properties: High tensile strength, tear resistance, rigidity, and dimensional stability under stress.
Superior Electrical Insulation: Reliable dielectric material for demanding electrical applications.
Excellent Chemical Resistance: Resistant to organic solvents, oils, greases, and other chemicals.
Inherent Flame Retardancy: Self-extinguishing properties compliant with strict flame-retardancy standards.

Applications

Heat-Resistant Heaters & Sensors: Durable, thermally stable dielectric and protective layer for flexible heating elements and sensor arrays.
High-Temperature Barrier & Release Films: Ideal for processing environments requiring thermal resilience.
EMI Shielding: Robust substrate for metallized shielding films that block electromagnetic interference.

This UL-certified, dual-side corona-treated BOPI film offers manufacturers a robust, high-performance material solution with exceptional process compatibility and product dependability.
