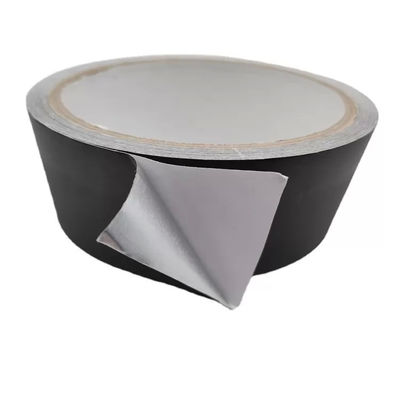

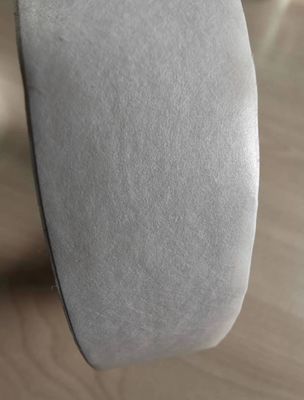

Black Colored Acrylic Pressure-Sensitive Adhesive With Aramid Paper Flame Retardant Tapes

Black Colored Acrylic Pressure-Sensitive Adhesive With Aramid Paper Flame Retardant Tapes
Black Colored Acrylic Pressure-Sensitive Adhesive With Aramid Paper Flame Retardant Tapes Black Colored Acrylic Pressure-Sensitive Adhesive With Aramid Paper Flame Retardant Tapes Black Colored Acrylic Pressure-Sensitive Adhesive With Aramid Paper Flame Retardant Tapes

Large Image :  Black Colored Acrylic Pressure-Sensitive Adhesive With Aramid Paper Flame Retardant Tapes

Product Details:
Place of Origin: China
Certification: UL
Model Number: 432BL
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square meters
Price: quoted as per size and quantity
Packaging Details: cartons and pallet
Delivery Time: about 35 days
Payment Terms: L/C, T/T
Supply Ability: 10000rolls per month

Black Colored Acrylic Pressure-Sensitive Adhesive With Aramid Paper Flame Retardant Tapes

Description
Tensile Strength: ≥30N/10mm Adhesion To Steel: ≥10N/25mm
Width: 10mm~980mm Heat Class: F Class
Type: Flame Retardant Elongation At Break: ≥4%
Long-term Temperature Resistance: -55℃~155℃ Material: Aramid Paper
High Light:

Aramid Paper Acrylic Pressure Sensitive Adhesive

,

Pressure Sensitive Adhesive Flame Retardant Tapes

Product Description:

Heat Resistant Insulation Tape

Heat Resistant Insulation Tape is a high-quality tape designed to provide excellent insulation and protection for electrical wiring and components in extreme temperature environments. This tape is specially formulated with a silicone pressure-sensitive adhesive, making it ideal for high temperature applications. It is perfect for use in industries such as electronics, automotive, aerospace, and more.

This tape is available in a bright white color, making it easy to identify and ensuring a clean and professional appearance. It is also available in various widths, ranging from 10mm to 980mm, providing flexibility for different application needs. The tape is made with an acrylic pressure sensitive adhesive, ensuring strong and durable adhesion to various surfaces.

One of the key features of Heat Resistant Insulation Tape is its long-term temperature resistance. It can withstand temperatures as low as -55℃ and as high as 155℃, making it suitable for use in extreme temperature environments. This makes it an ideal choice for applications that require high heat resistance, such as in engine compartments, furnaces, or outdoor electrical installations.

The tape is made with an electrical grade low shrinkage polyester film, providing excellent electrical insulation properties. It has a high dielectric strength, making it capable of withstanding high voltage and preventing electrical leakage. This makes it a reliable choice for insulating and protecting electrical wiring and components.

In addition to its heat resistance and electrical insulation properties, Heat Resistant Insulation Tape is also flame retardant. It conforms to the UL510 standard for flame retardant materials, ensuring safety and compliance with industry standards. This makes it suitable for use in critical applications, where fire resistance is crucial.

This tape is designed to be durable and long-lasting, with a length of 50m per roll. This ensures that it can cover a large area and can be used for multiple projects. The tape is also easy to tear by hand, making it convenient to use and saving time and effort.

Overall, Heat Resistant Insulation Tape is a versatile and reliable choice for all your high temperature insulation needs. Its silicone pressure-sensitive adhesive, heat resistant insulation, electrical grade low shrinkage polyester film, high dielectric strength, flame retardant, and UL510 standard compliance make it a top-quality product that provides excellent performance and protection. Choose Heat Resistant Insulation Tape for all your extreme temperature insulation needs and experience the difference it can make.



Features:

  • Product Name: Heat Resistant Insulation Tape
  • Type: Flame Retardant
  • Color: White
  • BDV: ≥1.8KV
  • Elongation at break: ≥4%
  • Adhesive: Acrylic Pressure Sensitive Adhesive
  • Heat resistant insulation
  • For electrical plastic case
  • Joint bonding
  • High temperature resistance


Technical Parameters:

Technical Parameters Description
Adhesion to Steel >=10N/25mm
Length 50m
Width 10mm~980mm
Long-term Temperature Resistance -55℃~155℃
Thickness 0.10mm
Elongation at Break >=4%
Type Flame Retardant
Color White or Black
Adhesive Acrylic Pressure Sensitive Adhesive
BDV (Breakdown Voltage) >=1.8KV
Material Electrical grade low shrinkage polyester film
Insulation Type Electrical Insulation
Adhesive Type  acrylic Pressure-Sensitive Adhesive
High Temperature Resistance Yes


Applications:

Heat Resistant Insulation Tape - Model 432BL

This electrical grade low shrinkage polyester film tape is designed for high temperature applications, making it the perfect solution for various industries. With its excellent qualities, this tape is suitable for a wide range of uses, including insulation, sealing, and protection.

Product Attributes
  • Model Number: 432BL
  • Place of Origin: China
  • Elongation at break: ≥4%
  • Long-term temperature resistance: -55℃~155℃
  • Type: Flame Retardant
  • Adhesion to steel: ≥10N/25mm
  • Thickness: 0.10mm
Application Scenarios

This heat resistant insulation tape is highly versatile and can be used in various industries and scenarios, such as:

  • Electrical Industry: This tape is perfect for electrical insulation, thanks to its high temperature resistance and low shrinkage properties. It can be used for insulating wires, cables, and other electrical components.
  • Automotive Industry: With its flame retardant and corrosion-resistant properties, this tape is ideal for use in the automotive industry. It can be used for wire harnessing, engine compartment insulation, and other high temperature applications.
  • Aerospace Industry: The high temperature resistance of this tape makes it suitable for use in the aerospace industry. It can be used for sealing and protecting components in extreme temperature conditions.
  • Construction Industry: This tape can also be used for insulation and sealing in the construction industry. It can withstand high temperatures, making it suitable for use in areas such as boilers, chimneys, and HVAC systems.
Product Features
  • High Temperature Resistance: With a long-term temperature resistance of -55℃~155℃, this tape can withstand extreme heat without losing its adhesive properties.
  • Flame Retardant: This tape is designed to be flame retardant, making it suitable for use in high-risk environments.
  • Insulation: The electrical grade low shrinkage polyester film and PET film backing make this tape an excellent insulator, making it ideal for use in electrical and construction applications.
  • Corrosion Resistance: The silicone adhesive used in this tape is highly resistant to corrosion, making it suitable for use in harsh environments.
  • Suitable for Difficult-to-Stick Surfaces: This tape is designed to stick to difficult-to-stick surfaces such as silicone release paper, making it a versatile solution for various industries.


Customization:

Customization Service for Heat Resistant Insulation Tape

Model Number: 432BL

Place of Origin: China

Color: White or Black

Width: 10mm~980mm

Thickness: 0.10mm

Adhesion to steel: ≥10N/25mm

Heat class: F Class

This Heat Resistant Insulation Tape is designed to provide exceptional electrical insulation and protection against high temperatures. It is ideal for various industrial applications, such as spraying shielding protection.

With a width range of 10mm~980mm and a thickness of 0.10mm, this tape offers versatile use options for different needs. Its white color allows for easy identification and visibility.

Equipped with a strong adhesion to steel of ≥10N/25mm, this tape ensures a secure and reliable application. It is specifically designed for high temperature resistance, making it suitable for use in F Class environments.

Choose our Heat Resistant Insulation Tape for customized solutions in electrical insulation and spraying shielding protection. Made in China, our tape guarantees high quality and effectiveness for all your industrial needs.
