Polyimide Film Adhesive Tape Wire Cable Insulation With Adhesion ≥1.2N/10mm

Certification
China UN.Tex (Dalian) Co.,Ltd certification
China UN.Tex (Dalian) Co.,Ltd certification
I'm Online Chat Now

Polyimide Film Adhesive Tape Wire Cable Insulation With Adhesion ≥1.2N/10mm

Polyimide Film Adhesive Tape Wire Cable Insulation With Adhesion ≥1.2N/10mm
Polyimide Film Adhesive Tape Wire Cable Insulation With Adhesion ≥1.2N/10mm

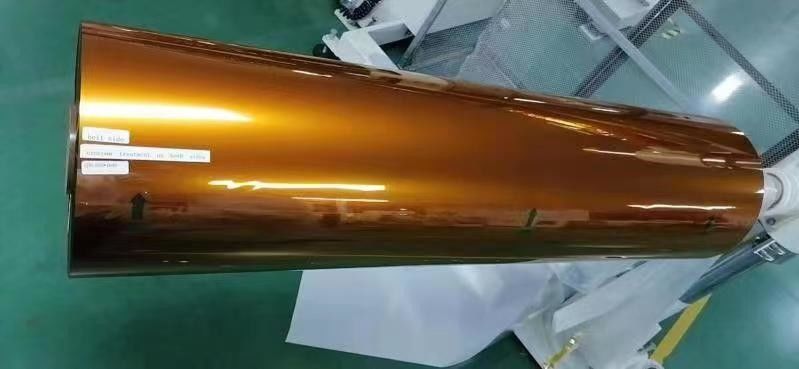

Large Image :  Polyimide Film Adhesive Tape Wire Cable Insulation With Adhesion ≥1.2N/10mm

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 500 sq.m
Price: quoted per size
Packaging Details: cartons and pallet
Delivery Time: about 30 working days
Payment Terms: L/C, T/T
Supply Ability: 50000 sq.m per month

Polyimide Film Adhesive Tape Wire Cable Insulation With Adhesion ≥1.2N/10mm

Description
Tensile Strength: ≥35N/10mm Insulation Resistance: ≥1012Ω
Application: Electronic Industry Material: Polyimide Film
Flame Retardant: UL94V-0 Elongation: ≥30%
Thickness: 12.5um~125um Halogen Free: Yes
High Light:

125um Heat Resistant Polyimide Tape

,

Wire Cable Insulation Polyimide Film Tape

Product Description:

Polyimide Film Adhesive Tape is a flame retardant, UL94V-0 adhesive tape designed to meet the demands of the electronic industry. It is available in various thicknesses from 12.5um to 125um, and in an amber color. The tape is RoHS compliant and provides an excellent balance of electrical, chemical and physical properties. It is particularly suitable for wire & cable insulation and polyimide label tape.



Features:

  • Product Name: Polyimide Film Adhesive Tape
  • Elongation: ≥30%
  • Adhesion: ≥1.2N/10mm
  • Adhesive: Pressure Sensitive Acrylic Or Silicone Adhesive Or F46
  • Thickness: 12.5um~125um
  • Low & High Temperature Resistant
  • Flame Retardant
  • Slot Liner Insulation


Technical Parameters:

Property Value
Dielectric Strength ≥6.5KV
Insulation Resistance ≥1012Ω
Adhesion ≥1.2N/10mm
RoHS Compliant Yes
Temperature Range -269℃~400℃
Material Polyimide Film
Halogen Free Yes
Color Amber
Flame Retardant UL94V-0
Tensile Strength ≥35N/10mm


Applications:

Polyimide Film Adhesive Tape – Ideal for Wire & Cable Insulation, PCB Insulation, Heat Resistance

Polyimide Film Adhesive Tape is a dielectric tape with a polyimide film backing. It is an ideal solution for high temperature insulation and sealing applications. This amber colored adhesive tape comes with excellent dielectric strength of ≥6.5KV and insulation resistance of ≥1012Ω. It is suitable for use in wire & cable insulation, PCB insulation, heat resistance and other high temperature applications. This Polyimide Film Adhesive Tape is made of polyimide film and originates from China.

Polyimide Film Adhesive Tape provides superior protection and insulation in extreme temperature conditions, making it an ideal choice for many industrial and commercial applications. It can also be used to make polyimide labels that offer excellent heat resistance and resistance to chemicals and solvents. This adhesive tape is a great choice for applications that require high temperature stability and insulation.

Polyimide Film Adhesive Tape is ideal for applications that require heat resistance, insulation, and dielectric strength. It is perfect for use in wire & cable insulation, PCB insulation, and many other high temperature applications. It is an excellent choice for many industrial and commercial applications due to its superior protection and insulation in extreme temperature conditions.



Customization:

Polyimide Film Adhesive Tape
  • Place of Origin: China
  • Temperature Range: -269℃~400℃
  • Application: Electronic Industry, Coverlay or Stiffener in F-PCB, Polyimide Film, slot liner insulation
  • Halogen Free: Yes
  • Thickness: 12.5um~125um
  • Adhesion: ≥1.2N/10mm


Support and Services:

Polyimide Film Adhesive Tape Technical Support and Services

We offer a variety of technical support and services for Polyimide Film Adhesive Tape products, including:

  • Assistance in selecting the right product for your application
  • Installation and application advice
  • Troubleshooting and repair suggestions
  • Technical support and guidance
  • Product technical data
  • Product testing and certification

If you have any questions or need assistance, please contact us.
